Murata, NFA21SL, EMI Filter, 10 V dc 50MHz, 20mA, 0805 (2012M), SMD, Solder, 2 x 1.25 x 0.85mm

RS庫存編號:: 166-9881
製造零件編號:: NFA21SL506X1A48L
製造商:: Murata

Murata, NFA21SL, EMI Filter, 10 V dc 50MHz, 20mA, 0805 (2012M), SMD, Solder, 2 x 1.25 x 0.85mm

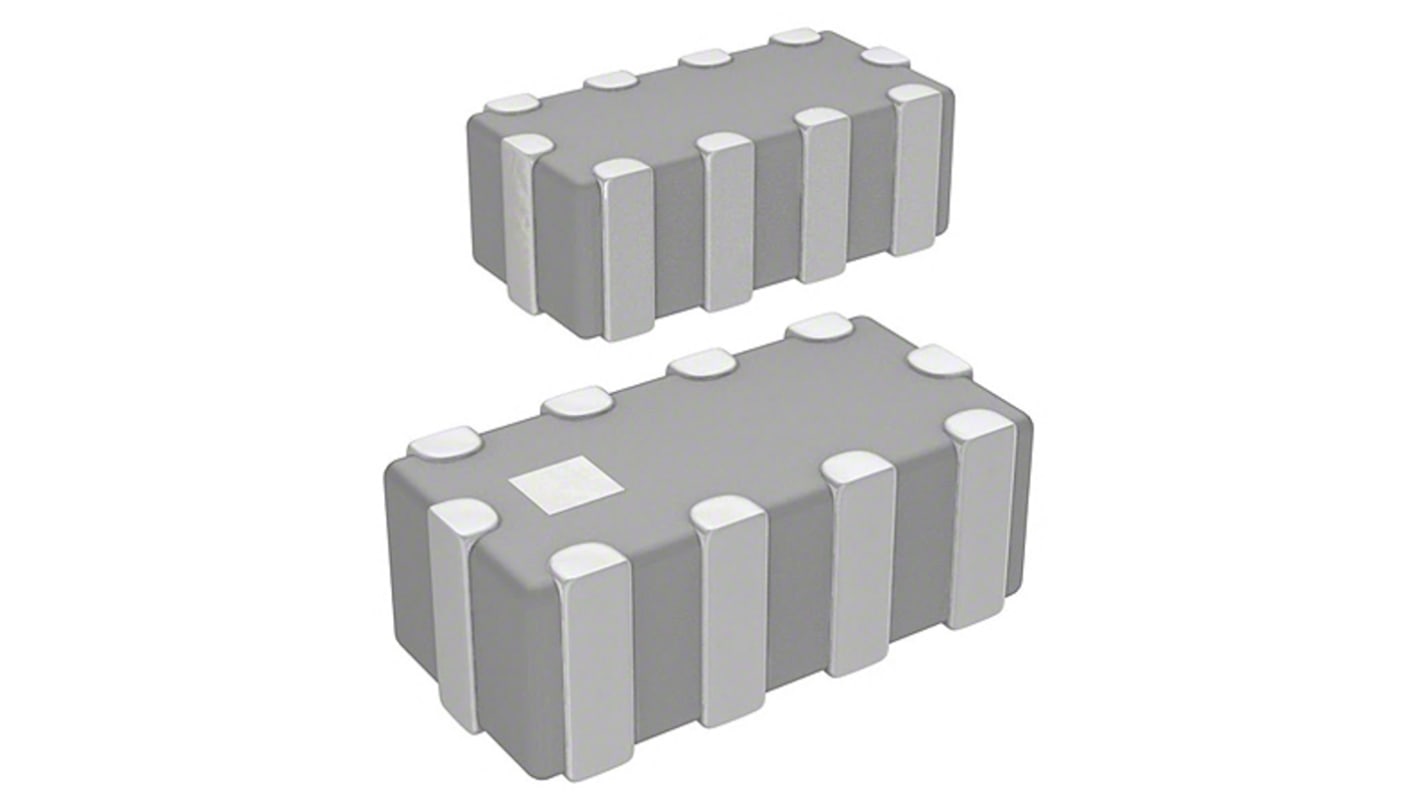

此圖片僅供參考，請參閲產品詳細資訊及規格

當前暫無庫存，可於2024/7/23發貨，3 工作日送達。

單價个（每带 4000 ）

HK$1.682

單位	Per unit	Per Reel*
4000 - 16000	HK$1.682	HK$6,728.00
20000 +	HK$1.513	HK$6,052.00
* 參考價格

RS庫存編號:: 166-9881
製造零件編號:: NFA21SL506X1A48L
製造商:: Murata

產品概覽和技術數據資料表

Datasheet

法例與合規

COO (Country of Origin):: JP

產品詳細資訊

0805 EMFIL ® (LC Combined) Array NFA21 Series

NFA 21SL series 0805 SMT chip EMI Suppression Filters for Applications using Murata Ceramic processing technology and filter design technology. These filters prevent ringing caused by circuit impedance, the arrays stable noise attenuation over wide frequency range and are small and low profile.
This series is suited for EMI suppression in digital I/O lines of varied electronic equipment such as notebook size PCs.

Applications

Personal computers
Communications equipment
Telephones
Digital TV

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Signal/Line/Noise and Feedthrough – PCB Mount (SMT)

Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.

規格

Attribute	Value
Series	NFA21SL
Maximum Current Rating	20mA
Maximum Voltage Rating	10 V dc
Mounting Type	Surface Mount
Operating Frequency	50MHz
Termination Style	Solder
Package/Case	0805 (2012M)
Dimensions	2 x 1.25 x 0.85mm
Depth	1.25mm
Height	0.85mm
Length	2mm
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	-55°C
Capacitance	80pF
