STMicroelectronics, ECMF4-40A100N, EMI Filter IC, 25000V 10.7 GHz, 100 mA, QFN, Surface

RS庫存編號:: 248-5835P
製造零件編號:: ECMF4-40A100N10
製造商:: STMicroelectronics

STMicroelectronics, ECMF4-40A100N, EMI Filter IC, 25000V 10.7 GHz, 100 mA, QFN, Surface

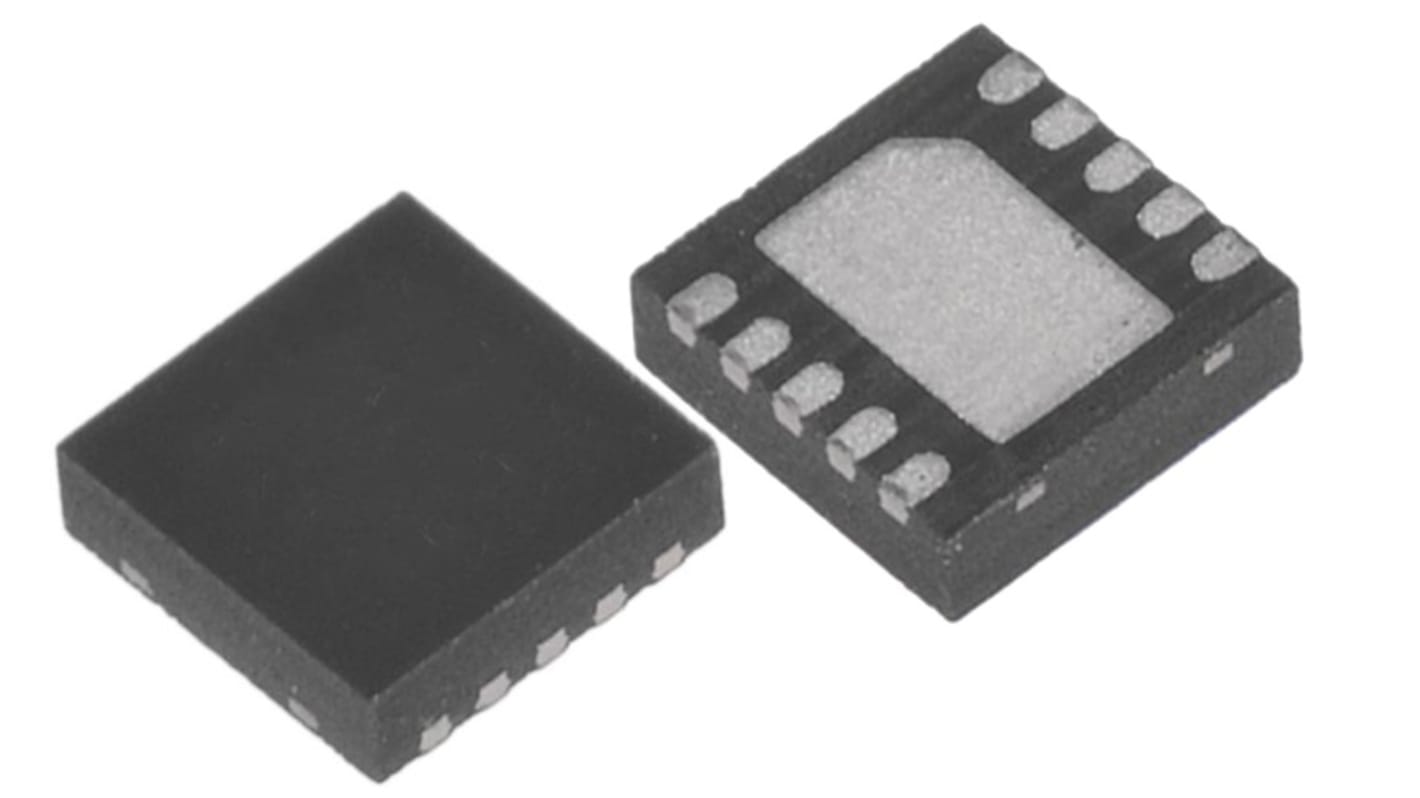

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

小計 20 件 (按連續帶提供)*

HK$65.80

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年12月15日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
20 - 90	HK$3.29
100 - 240	HK$3.19
250 - 490	HK$3.09
500 +	HK$3.00

* 參考價格

RS庫存編號:: 248-5835P
製造零件編號:: ECMF4-40A100N10
製造商:: STMicroelectronics

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	STMicroelectronics
	Series	ECMF4-40A100N
	Product Type	EMI Filter IC
	Maximum Current	100mA
	Maximum Voltage	25000V
	Packaging	Tape & Reel
	Mount Type	Surface
	Operating Frequency	10.7 GHz
	Package/Case	QFN
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	125°C
	Standards/Approvals	IEC 61000-4-2
	Capacitance	0.4pF

	選取全部
	品牌 STMicroelectronics
	Series ECMF4-40A100N
	Product Type EMI Filter IC
	Maximum Current 100mA
	Maximum Voltage 25000V
	Packaging Tape & Reel
	Mount Type Surface
	Operating Frequency 10.7 GHz
	Package/Case QFN
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 125°C
	Standards/Approvals IEC 61000-4-2
	Capacitance 0.4pF

Datasheet - ECMF4-40A100N10

The STMicroelectronics product is a highly integrated common mode filter designed to suppress EMI or RFI common mode noise on high speed differential serial buses like HDMI 2.1, HDMI 2.0, HDMI1.4, USB4, USB 3.2 Gen 2, USB 2.0, Ethernet, MIPI, Display Port and other high speed serial interfaces. They have a very large differential bandwidth to comply with these standards and can also protect and filter one or two differential lanes.

10.7 GHz differential bandwidth

High common mode attenuation on WLAN frequencies

Low serial resistance

Very low PCB space consumption

High reduction of parasitic elements through integration

Package Type: QFN

Pin Count: 10L
