Murata, NFM21C, Signal Filter, 16V, 150 mA, 0805, Surface, Solder Pad 0.85 mm 2 mm, 1.25 mm

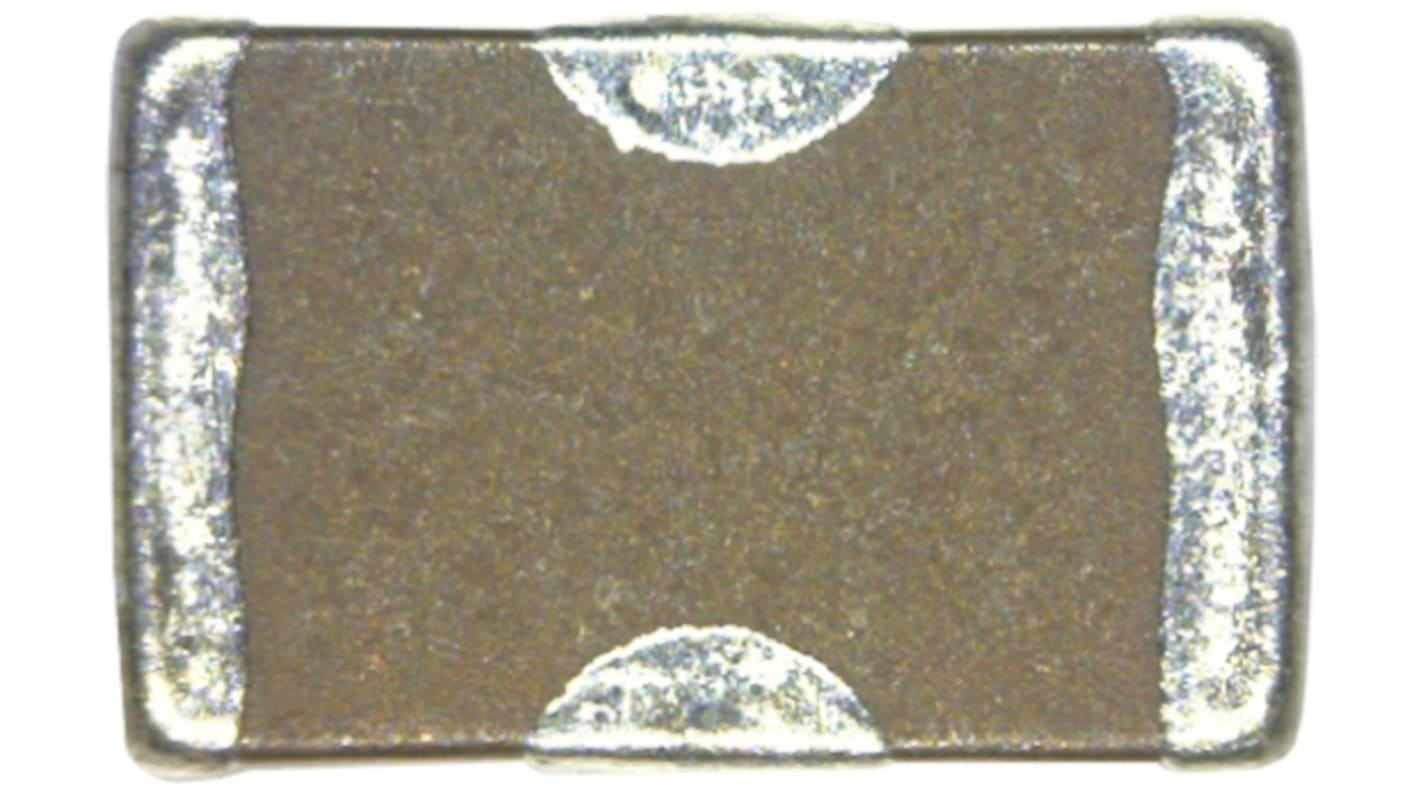

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Signal Filters
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
包裝方式：
RS庫存編號:
725-7405
製造零件編號:
NFL21SP506X1C3D
製造商:
Murata
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Murata

Series

NFM21C

Product Type

Signal Filter

Maximum Current

150mA

Maximum Voltage

16V

Packaging

Tape & Reel

Mount Type

Surface

Termination Style

Solder Pad

Package/Case

0805

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

125°C

Height

0.85mm

Standards/Approvals

RoHS

Length

2mm

Depth

1.25mm

0805 EMIFIL® (LC Combined) Multilayer Type NFL21SP Series


EMIFIL NFL21S series high performance EMI suppression filter chip (2.0x1.25mm size) for high speed signal lines by using Murata's processing technology

Suppresses noise with little attenuation of the signal itself due to its steep filtering characteristics

Murata's original internal structure design enables excellent noise suppression up to high frequencies

Available in three different values of cut-off frequency ranging from 10MHz up to 50MHz

Applications


Suppression of high magnitude radiated noise generated by high speed digital circuits such as clock and RGB.

Signal/Line/Noise and Feedthrough – PCB Mount (SMT)


Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.
