Murata, NFL21SP, EMI Filter, 16V, 150 mA, 0805, Surface, Flat Contact 0.85 mm 2 mm, 1.25 mm
- RS庫存編號:
- 839-1032P
- 製造零件編號:
- NFL21SP706X1C3D
- 製造商:
- Murata

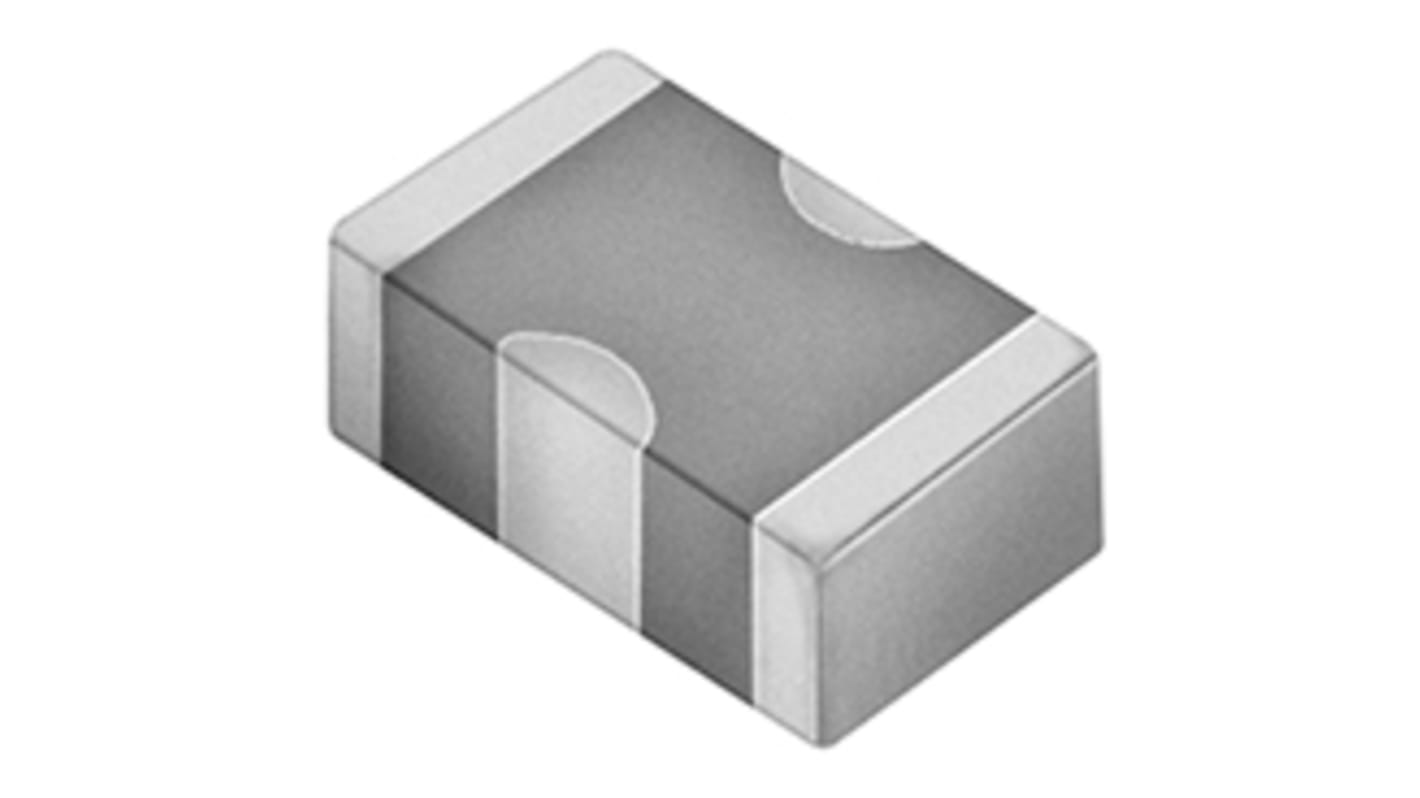

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
抱歉，我們不知道何時會到貨。
- RS庫存編號:
- 839-1032P
- 製造零件編號:
- NFL21SP706X1C3D
- 製造商:
- Murata
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Murata | |
| Series | NFL21SP | |
| Product Type | EMI Filter | |
| Maximum Current | 150mA | |
| Maximum Voltage | 16V | |
| Packaging | Tape & Reel | |
| Mount Type | Surface | |
| Termination Style | Flat Contact | |
| Package/Case | 0805 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Depth | 1.25mm | |
| Height | 0.85mm | |
| Length | 2mm | |
| 選取全部 | ||
|---|---|---|
品牌 Murata | ||
Series NFL21SP | ||
Product Type EMI Filter | ||
Maximum Current 150mA | ||
Maximum Voltage 16V | ||
Packaging Tape & Reel | ||
Mount Type Surface | ||
Termination Style Flat Contact | ||
Package/Case 0805 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Depth 1.25mm | ||
Height 0.85mm | ||
Length 2mm | ||
- COO (Country of Origin):
- JP
0805 EMIFIL® (LC Combined) Multilayer Type NFL21SP Series
EMIFIL NFL21S series high performance EMI suppression filter chip (2.0x1.25mm size) for high speed signal lines by using Murata's processing technology
Suppresses noise with little attenuation of the signal itself due to its steep filtering characteristics
Murata's original internal structure design enables excellent noise suppression up to high frequencies
Available in three different values of cut-off frequency ranging from 10MHz up to 50MHz
Applications
Suppression of high magnitude radiated noise generated by high speed digital circuits such as clock and RGB.
Signal/Line/Noise and Feedthrough – PCB Mount (SMT)
Unless explicitly stated, the filters in this range have an Operating Temperature Range of between -25°C and 85°C.
