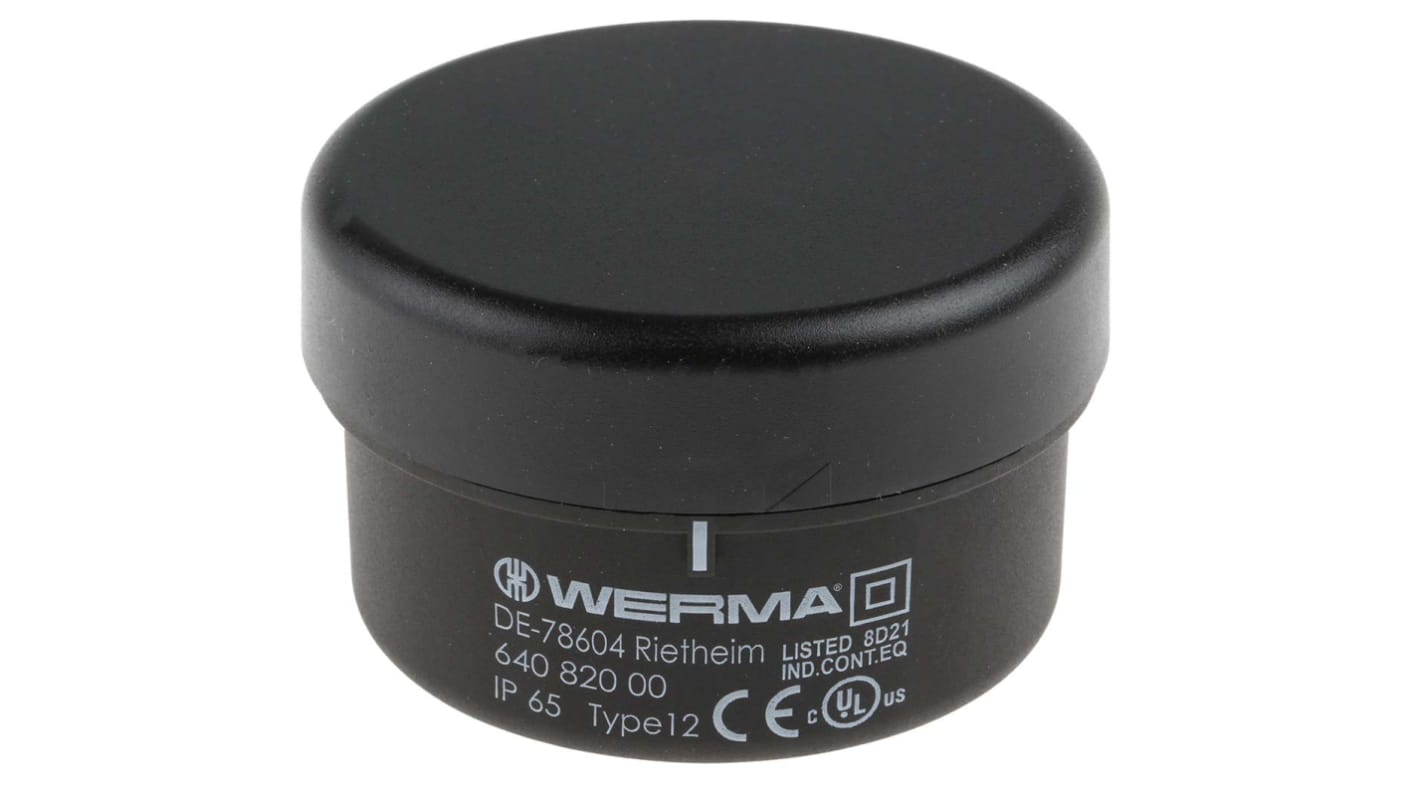

Werma 640 Series Terminal unit, 24 V dc, 230 V ac, IP65
- RS庫存編號:
- 481-941
- 製造零件編號:
- 640.820.00
- 製造商:
- Werma
單價 个
HK$286.90
65 現貨庫存,可於4工作日發貨。
單位 | 每單位 |
---|---|
1 + | HK$286.90 |
- RS庫存編號:
- 481-941
- 製造零件編號:
- 640.820.00
- 製造商:
- Werma
- COO (Country of Origin):
- DE
Stacking Signal Tower - KombiSIGN 71, 70 mm, IP65
The WERMA KombiSIGN 71 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.
Features and Benefits
Suitable for machine and manual Andon indication
Modular system allows a completely free combination of optical and audible signal elements
Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
Completely safe element changes (contact-voltage proof) without the need for tools
Protection rating IP65 for use in extreme conditions
Up to 5 elements can be mounted on a terminal base
Flexible combination of optical and audible elements
Optical isolation due to O-ring seal stopping illumination of adjacent element
Operating voltage for the continuous incandescent element is dependant on bulb fitted
LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
Improved connection with cage clamp technology
Operating temperature range is -20 to +50 °C
Polyamide body with polycarbonate lenses, 70 mm diameter
Modular system allows a completely free combination of optical and audible signal elements
Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
Completely safe element changes (contact-voltage proof) without the need for tools
Protection rating IP65 for use in extreme conditions
Up to 5 elements can be mounted on a terminal base
Flexible combination of optical and audible elements
Optical isolation due to O-ring seal stopping illumination of adjacent element
Operating voltage for the continuous incandescent element is dependant on bulb fitted
LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
Optional self adjusting siren automatically adjusts output between 80 & 100 dB depending on ambient sound levels
AS-Interface element can be easily connected to the networking system which considerably reduces complex wiring
Improved connection with cage clamp technology
Operating temperature range is -20 to +50 °C
Polyamide body with polycarbonate lenses, 70 mm diameter
Permanent Multi-colour LED Light Element
Seven colours in one beacon
Different colours can be triggered via the pins in the terminal element
Positive and negative control logic
The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
High light intensity
Different colours can be triggered via the pins in the terminal element
Positive and negative control logic
The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
High light intensity
Note
Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 70.
Approvals
UL listed, CSA, VDE
WERMA KombiSIGN 71 Terminal Unit, 230V AC, 24V DC - 640 Series - 640.820.00
Need a signalling solution that attaches to your devices and machinery to show you when something has malfunctioned? Install this terminal unit from WERMA's KombiSIGN 71 as the base for your stacking tower. It's a screw-type fitting for base and bracket mounting. The modular design lets you choose a bespoke combination of visual and audio signalling elements. You can use this item on your equipment in commercial and industrial settings.
Features & Benefits
• Bayonet connection system establishes quick installations by simply aligning and twisting compatible parts• Operating temperature range of -20°C to +50°C for use in varied industrial settings• IP65 (ingress protection) rating means there'll be no damage from dust particles and water sprays
Applications
• Production and assembly lines• Automated process equipment• High-volume printing systems
Can this terminal unit keep different coloured light signals separate?
The stackable elements you add to this terminal unit have O-ring seals that separate one part from another so that you know which colour is signalling which problem.
Is it safe to change elements in my stacking signal tower?
The unit is contact-voltage proof, so you can safely swap or add elements without the need for tools.
Attribute | Value |
---|---|
Range | KombiSIGN 71 |
Series | 640 |
Component Type | Termination |
Supply Voltage | 230 V ac, 24 V dc |
Height | 26.5mm |
Base Diameter | 70mm |
IP Rating | IP65 |
Housing Colour | Black |
Maximum Temperature | +50°C |
Minimum Temperature | -20°C |
