LeCroy T3SA3000-RFM-KIT Oscilloscope Software Reflection Measurement Option Software, For Use With T3SA

  • RS庫存編號 177-1265
  • 製造零件編號 T3SA3000-RFM-KIT
  • 製造商 LeCroy
產品概覽和技術數據資料表
法例與合規
相容
產品詳細資訊

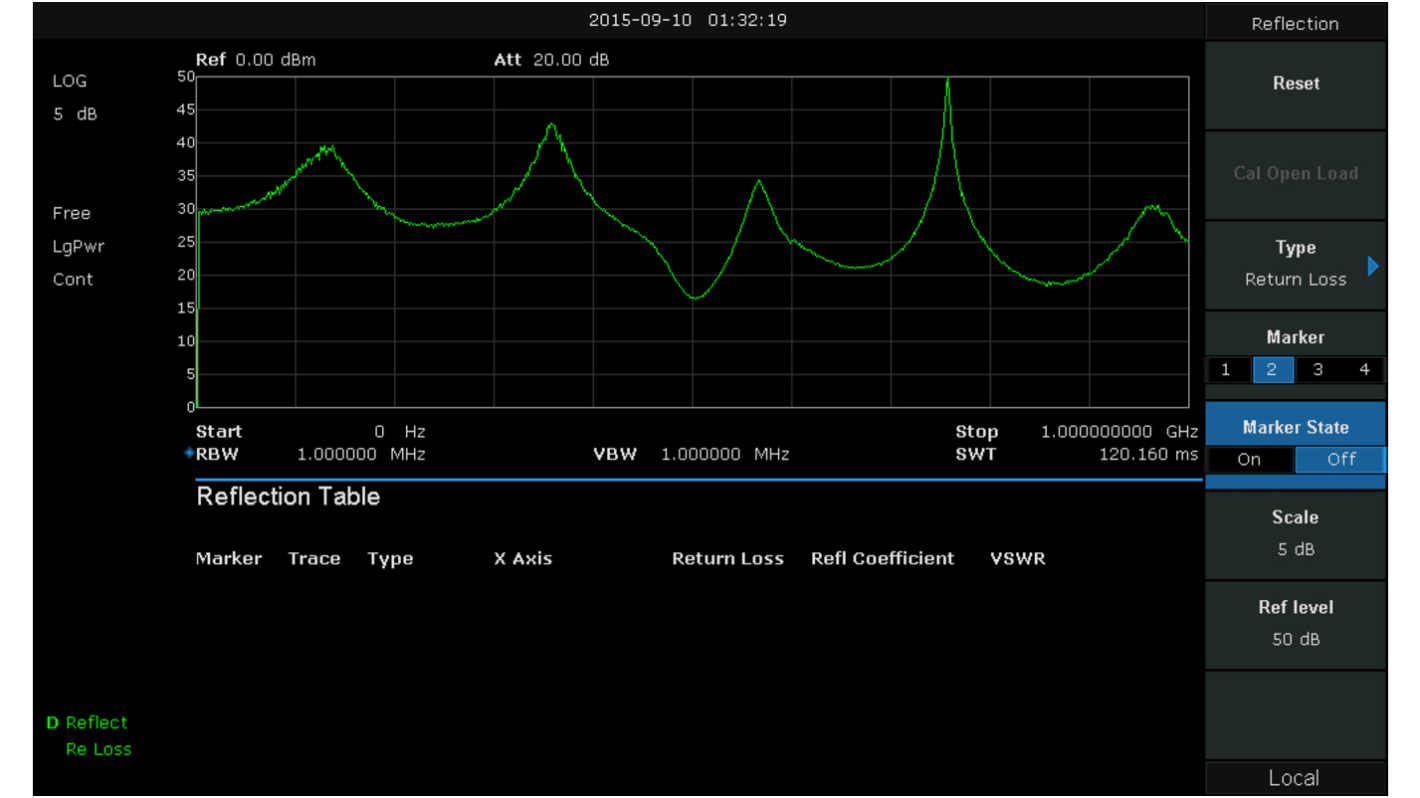

Reflection Measurement Kit hardware for Teledyne LeCroy T3SA3000 Spectrum Analyser family. This kit comprises of the T3SA3000-RFM Software, and the T3SA3000-RLB hardware: VSWR Bridge (1 MHz ∼ 2 Ghz), N(M)-N(M) adaptor (2 pcs). This kit does not include the T3SA3000-TG option (177-1299). The T3SA3000-TG option should be ordered separately.

Teledyne Test Tools T3SA3000 Spectrum Analyzer range consists of models with frequency ranges from 9 kHz to 2.1 GHz or 9 kHz to 3.2 GHz. The small footprint and easy user interface is augmented by a high performance specification with many advanced measurement functions and capabilities. The high performance Spectrum Analysis capability can be enhanced further with options to extend it’s measurement capability.

User-friendly Design
10.1 inch (25.65 cm) 1024*600 display
Intuitive, easy to use menu system
“Preset” and “Auto Tune” for quick set up
Built-in front panel accessible help system
File management (support for U-disc and local storage)
Lightweight, small footprint, easy to transport
Features and Benefits
Frequency Range from 9 kHz up to 3.2 GHz
-161 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 0.7 dB
1 Hz Minimum Resolution Bandwidth (RBW)
All-Digital IF Technology
Standard Preamplifier
Up to 3.2 GHz Tracking Generator Kit (Opt.)
Reflection Measurement Kit (Opt.)
Advanced Measurement Kit (Opt.)
EMI Pre-compliance Test Kit (Opt.)
10.1 lnch WVGA (1024 x 600) Display
Typical Applications
Research Laboratory
Development Laboratory
Repair and Maintenance
Calibration Laboratory
Automatic Production Test
General bench-top use

規格
Attribute Value
Accessory Type Reflection Measurement Option Software
For Use With T3SA
