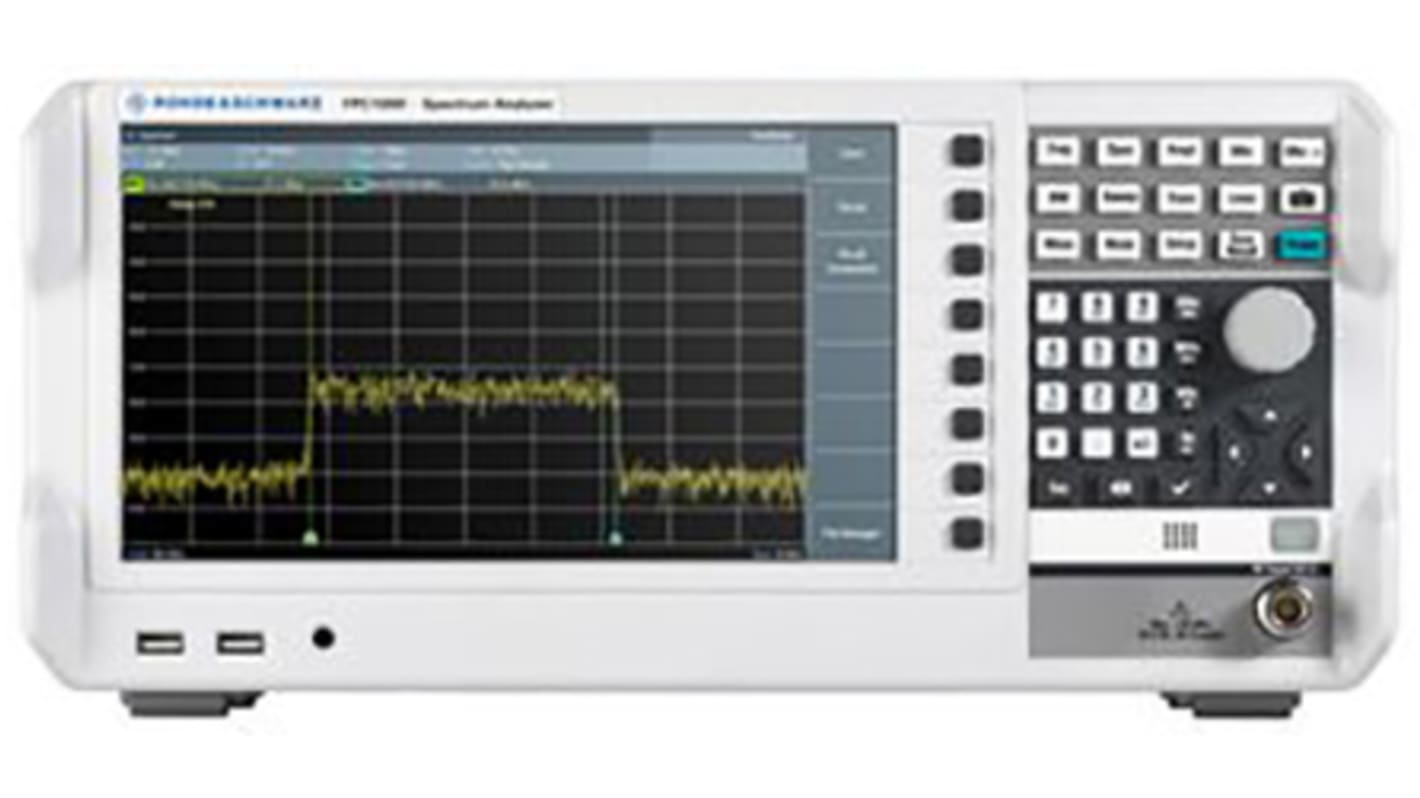

Rohde & Schwarz FPC-P2 Desktop Spectrum Analyser, 5 kHz → 2 GHz
- RS庫存編號:
- 144-8211
- 製造零件編號:
- FPC-P2
- 製造商:
- Rohde & Schwarz
Price 个**
HK$31,711.90
2 現貨庫存，可於4工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 + | HK$31,711.90 |
** 參考價格
- RS庫存編號:
- 144-8211
- 製造零件編號:
- FPC-P2
- 製造商:
- Rohde & Schwarz
- COO (Country of Origin):
- CZ
R&S®FPC1000 Series Spectrum Analyser
The FPC1000 Series from Rohde and Schwarz is a 5 kHz to 1 GHz spectrum analyser. The FPC1000 spectrum analyser delivers unexpected performance. Extraordinarily low noise floor and high maximum input power combine to provide best dynamic range. Resolution bandwidth settings to 1 Hz resolve finer spectral details. The FPC1000 series features 10.1", WXGA (1366 x 768 pixels) resolution with 26% larger display and has a 160% higher resolution than other instruments. It can be controlled via Smart Wireless remote control software. This spectrum analyser is used in education, production, service or basic research. Supports wired Ethernet and wireless WiFi connectivity. R&S InstrumentView for Windows and the iOS/Android app-based R&S MobileView platforms enables remote control and measurement anytime, anywhere.
Features and Benefits
• 100% software upgradeable via keycode
• Provides low noise floor of -150 dBm add optional FPC1000-B22 preamplifier to increase sensitivity
• FPC1000 can measure high-power signals of up to +30 dBm (1 W)
• 6 markers shown vividly in different colours
• Two USB2.0 ports for storage media and connecting accessories, headphone jack, audio speaker, RF input
• Soft menu selection for quick access to key tools, measurement setup buttons
• Power key approximately 15 seconds boot time
• Documentation as a screenshot or of instrument settings, control knob
• Optional R&S FPC-K43 receiver mode, R&S FPC-K7 modulation analysis, R&S FPC-K55 advanced measurement
• Optional accessories ZZA-FPC1 19" rackmount kit, HZ-15 Near field probes, 30 MHz to 3 GHz, HZ-16 Amplifier, 100 kHz to 3 GHz TB-Z3 soft carrying case
• Dimension is 396 x 185 x 156 mm, weight is 3Kg
• WiFi enabled, supported by included remote control and measurement software
• Three-year standard warranty
• FPC1000 Series
R&S®FPC1000 Spectrum Analyzer
Attribute | Value |
|---|---|
| Bandwidth | 5 kHz → 2 GHz |
| Number of Channels | 1 |
| Wave Traces | Average, Maximum Hold, Minimum Hold, View |
| Setting Modes | Span |
| Series | FPC1000 |
| Maximum Frequency | 2GHz |
| Minimum Frequency | 5 kHz |
| Display Type | LCD |
| Markers | Frequency |
| RF Input | N Connector |
| Interface Type | USB |
| Desktop/Handheld | Desktop |
| Maximum Operating Temperature | +40°C |
| Dimensions | 396 x 156 x 185mm |
| Weight | 3kg |
| Model Number p | FPC-P2 |
| Length | 396mm |
| Width | 156mm |
| Minimum Operating Temperature | +10°C |
| Height | 185mm |
