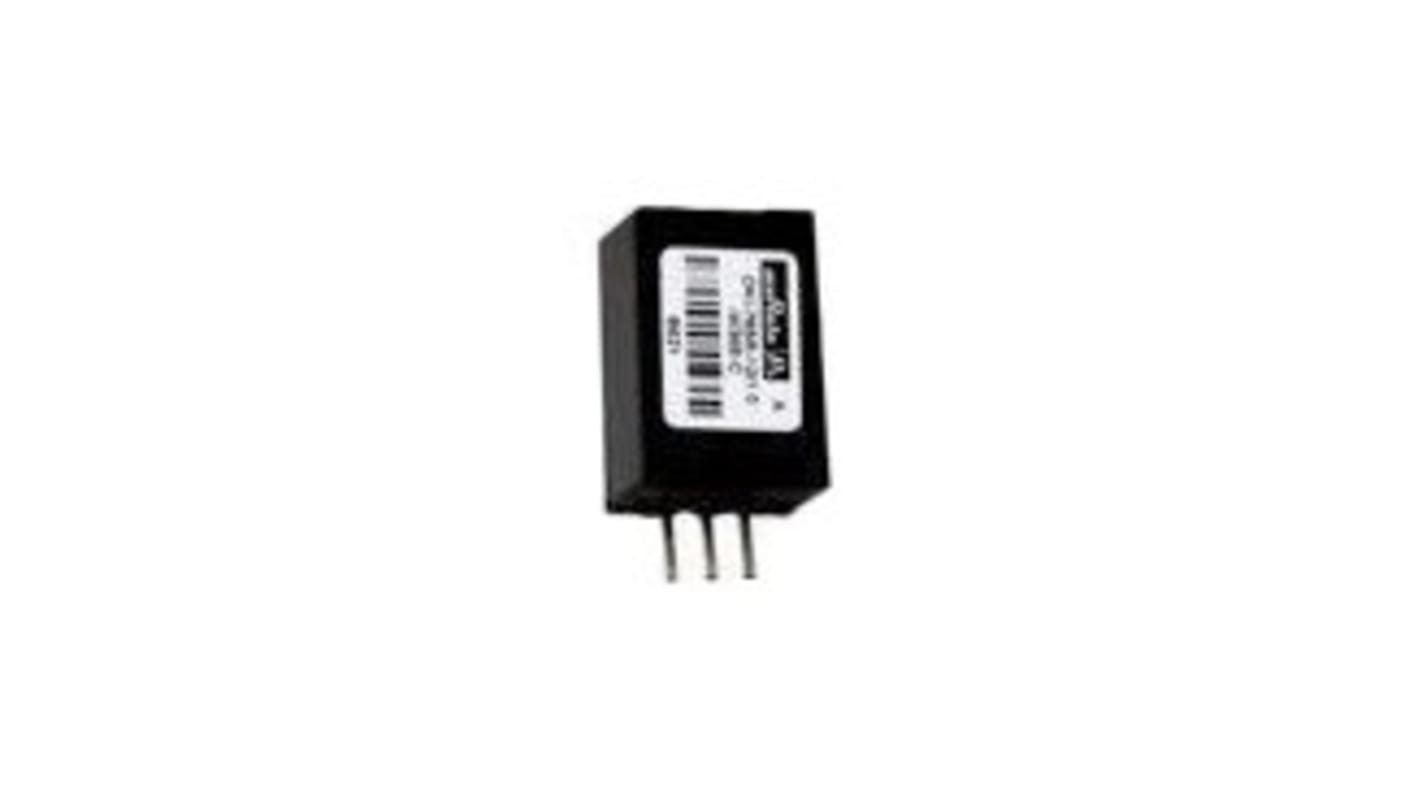

Murata Power Solutions Non-Isolated DC-DC Converter, Through Hole, 5V dc Output Voltage, 12V dc Input Voltage, 1.5A
- RS庫存編號:
- 173-7085P
- 製造零件編號:
- OKI-78SR-5/1.5-W36E-C
- 製造商:
- Murata Power Solutions
可享批量折扣
小計 32 件 (以盒裝提供)*
HK$2,009.60
訂單超過 HK$250.00 免費送貨
有庫存
- 411 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 32 - 62 | HK$62.80 |
| 63 + | HK$60.90 |
* 參考價格
- RS庫存編號:
- 173-7085P
- 製造零件編號:
- OKI-78SR-5/1.5-W36E-C
- 製造商:
- Murata Power Solutions
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Murata Power Solutions | |
| Output Voltage | 5V dc | |
| Output Current | 1.5A | |
| Input Voltage | 12V dc | |
| Mounting Type | Through Hole | |
| Number of Outputs | 1 | |
| Package | TO-220 | |
| Power Rating | 7.5W | |
| Efficiency | 90.5% | |
| Ripple And Noise | 75mV Pk-Pk | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Series | OKI-78SR | |
| Line Regulation | ±0.3% | |
| Length | 11.9mm | |
| Allowed Circuit Configurations | Parallel | |
| Width | 10mm | |
| Maximum Input Current | 690mA | |
| Switching Frequency Range | 500kHz | |
| Protection Features | Short Circuit Protection | |
| Weight | 4.5g | |
| Load Regulation | ±0.4% | |
| Depth | 17.6mm | |
| MTBF | 78700000h | |
| Rated Output Power | 7.5W | |
| Power Signal Conversion Type | DC-DC | |
| 選取全部 | ||
|---|---|---|
品牌 Murata Power Solutions | ||
Output Voltage 5V dc | ||
Output Current 1.5A | ||
Input Voltage 12V dc | ||
Mounting Type Through Hole | ||
Number of Outputs 1 | ||
Package TO-220 | ||
Power Rating 7.5W | ||
Efficiency 90.5% | ||
Ripple And Noise 75mV Pk-Pk | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Series OKI-78SR | ||
Line Regulation ±0.3% | ||
Length 11.9mm | ||
Allowed Circuit Configurations Parallel | ||
Width 10mm | ||
Maximum Input Current 690mA | ||
Switching Frequency Range 500kHz | ||
Protection Features Short Circuit Protection | ||
Weight 4.5g | ||
Load Regulation ±0.4% | ||
Depth 17.6mm | ||
MTBF 78700000h | ||
Rated Output Power 7.5W | ||
Power Signal Conversion Type DC-DC | ||
- COO (Country of Origin):
- CN
The OKI-78SR-E series are non-isolated switching regulator (SR) DC-DC power converters for embedded applications. The fixed single output converters offer both tight regulation and high efficiency directly at the power usage site and are a direct plug-in replacement for TO-220 package 78xx series linear regulators. Typically, no extra outside components are required.
Vertical SIP or horizontal mount, small footprint,
in an Encapsulated package
No heat sink” direct replacement for 3-terminal
78xx-series linear regulators
High efficiency with no external components
Short circuit protection
Outstanding thermal derating performance
in an Encapsulated package
No heat sink” direct replacement for 3-terminal
78xx-series linear regulators
High efficiency with no external components
Short circuit protection
Outstanding thermal derating performance
