Eaton 315A British Standard Fuse, FM, 690 V ac, 500V dc, 80 → 85mm
- RS庫存編號:
- 156-9106
- 製造零件編號:
- 315FM
- 製造商:
- Eaton
可享批量折扣
Price 个**
HK$3,530.20
38 現貨庫存,可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
---|---|
1 - 49 | HK$3,530.20 |
50 - 249 | HK$3,389.00 |
250 + | HK$3,247.80 |
** 參考價格
- RS庫存編號:
- 156-9106
- 製造零件編號:
- 315FM
- 製造商:
- Eaton
不適用
Cooper Bussman Bolted Tag Fuse - Fast Acting (FF) HRC Power Fuse Range
Cooper Bussman's bolted tag fuse is essentially a fuse that is fitted with brackets, these brackets allow the fuse to be bolted onto a fuse holder. Predominantly this type of fuse is used within installations as a "weak link". They are designed to break when a fault occurs, such as an overcurrent or short circuit - they are a safety and damage protection measure. Cooper Bussman's fuses are commonly found within a multitude of industrial applications, electrical equipment and wiring systems.
Features & Benefits
• Compact dimensions
• Excellent current limiting features
• High-speed clearance of AC and DC faults
• Featured a melt Point Curve Class IEC 269-4
• Fuse links, specifically designed for the protection of applications
• Conforms to industry standards
• Low voltage fuse
• Excellent current limiting features
• High-speed clearance of AC and DC faults
• Featured a melt Point Curve Class IEC 269-4
• Fuse links, specifically designed for the protection of applications
• Conforms to industry standards
• Low voltage fuse

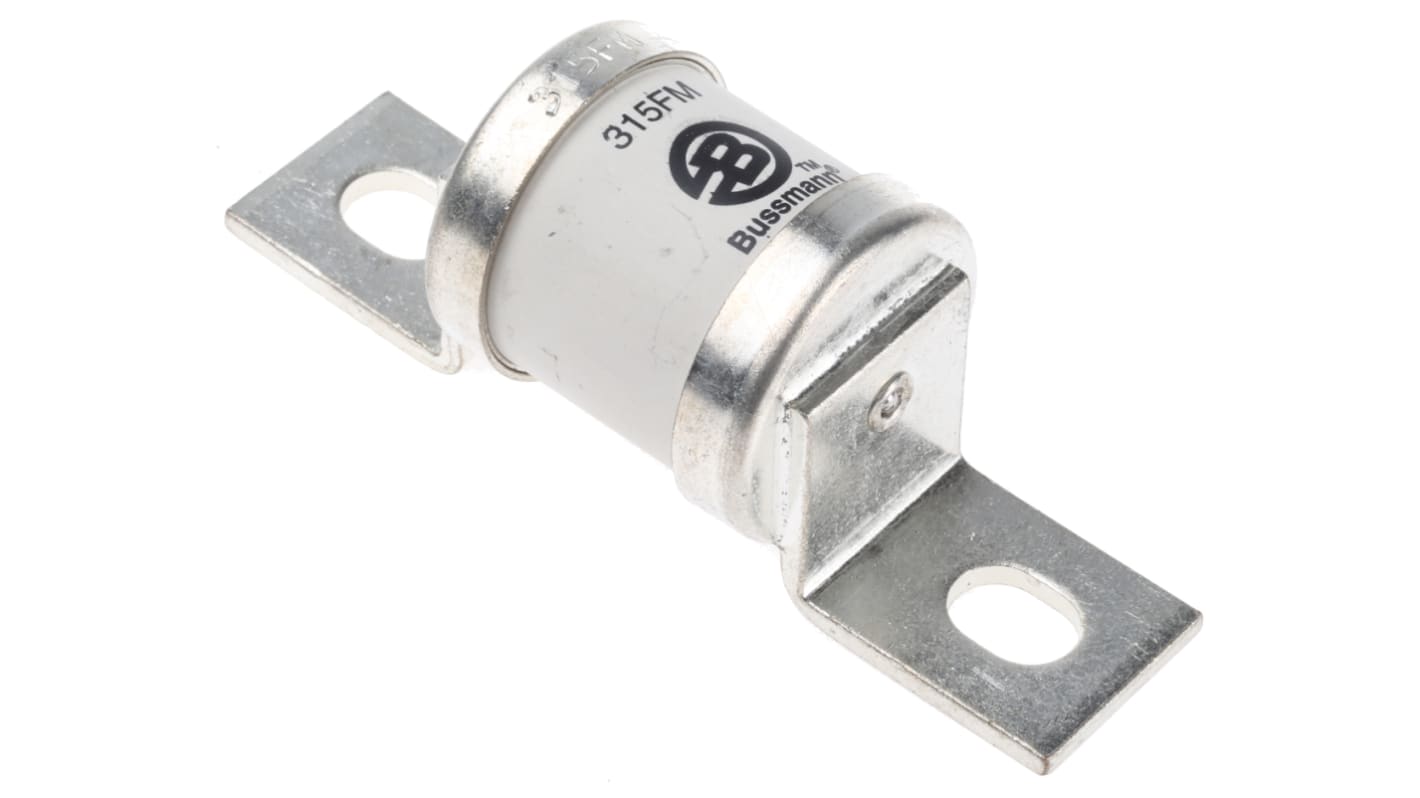

Eaton British Standard Fuse, 315A Current Rating, 690V AC / 500V DC Voltage Rating 315FM
Add this British Standard fuse from Eaton to your circuit to protect power semiconductors from damage resulting from short circuits. Its FF fuse speed means it's very fast-acting and it'll blow immediately in the event of a short circuit to interrupt the power before any damage can occur. Compact dimensions of 50 (length) x 41 (height) x 38mm (diameter) minimise power use and heat loss. Thanks to bolted tags that are compatible with many industrial distribution panels, you can be sure of a secure connection.
Features & Benefits
• High rupture capacity (HRC) fuse will stop a fault current that's much higher than the circuit's normal operating current
• Reliably clears both AC and DC faults at high speed, for versatility and reliability
• Reliably clears both AC and DC faults at high speed, for versatility and reliability
What applications can I use this fuse for?
Fuses of this type are used in everything from convertors and motor drives to soft starters and solid-state relays.
Can I use this fuse to replace a gR type fuse?
As it's an aR type, this fuse shouldn't be used as a replacement for a gR fuse, as it provides protection from short circuits only – not from overcurrent.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
Eaton formerly known as Bussmann
Attribute | Value |
---|---|
Current Rating | 315A |
Fuse Size | FM |
Voltage Rating | 690 V ac, 500V dc |
Fuse Standard | BS 88, IEC 269-4 |
Fixing Centres | 80 → 85mm |
Application Category | aR |
Tag Width | 25.4mm |
Fuse Speed | FF |
High Rupture Capacity | Yes |
Overall Length | 113mm |
Tag Type | Bolted |
Body Diameter | 38mm |
Body Length | 50mm |
Tag Orientation | Offset |
Body Height | 41mm |
Fuse Dimensions | 38 x 50mm |
