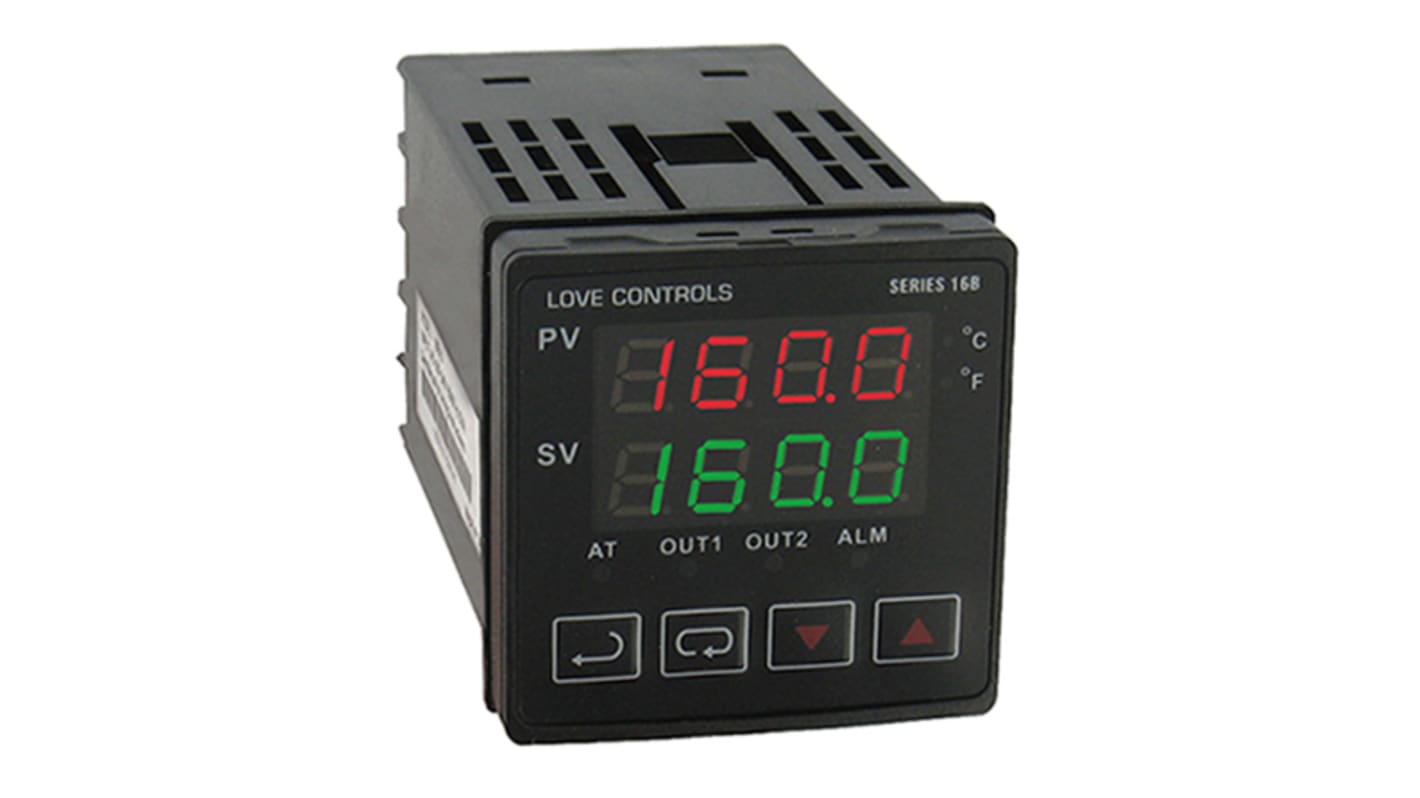

DWYER INSTRUMENTS 16B Panel Mount PID Temperature Controller, 48 x 48mm 1 Input, 2 Output Current, Relay, 100 →

查看所有Temperature Controllers
不可供應
RS 不再對此產品進貨。
RS庫存編號:
906-9373
製造零件編號:
16B-53
製造商:
DWYER INSTRUMENTS
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

DWYER INSTRUMENTS

Output Type

Current, Relay

Supply Voltage

100 → 240 V ac

Size

48 x 48mm

Number of Inputs

1

Number of Outputs

2

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+50°C

Temperature Range

+100 → +1800 (Type B thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +600 (Type E Thermocouple) °C, -100 → +1200 (Type J Thermocouple) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type W Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +500 (Type U Thermocouple) °C, -200 → +600 (Pt 100 RTD) °C, -200 → +850 (Type L Thermocouple) °C

Communication Module Available

Yes

Display Type

7-Segment LED Display

IP Rating

IP56

Additional Functionality

On/Off Function Available, Self Tune and Manual Tune Function Available

Mounting Type

Panel Mount

Input Type

DC Current, DC Voltage, RTD, Thermocouple

Series

16B

Termination Type

Pin

Display Colour

Green, Red

Panel Depth

80mm

COO (Country of Origin):
CN

16B Series 1/16 DIN PID Temperature Controller


Dwyer Instruments 16B series PID temperature controller for precision monitoring and control. The 16B offers two separate outputs for dual loop control in direct or reverse acting. A dual LED display provides local indication of process value and set point value. Output status, engineering scale, auto tuning and alarm status is also indicated on the front panel.
Control methods include ON/OFF, PID, self-tune and manual tune. Two additional alarm outputs are standard on the Series 16B. The alarm outputs can be quickly configured by using the thirteen built-in alarm functions.
The controller communicates with external devices such as PC's and PLCs for data search and system integration using the built-in RS-485 interface. The Series 16B also features universal input, selectable °F/°C, selectable resolution and security functions.

Dual control output
RS-485 Communication
Universal inputs
Selectable °F/°C


Dwyer Instruments Temperature Controllers
