Panasonic Thermal Fuse +134°C 1 A, 250V ac
- RS庫存編號:
- 712-7301
- 製造零件編號:
- EYP1BF134
- 製造商:
- Panasonic
查看所有Thermal Fuses
6540 現貨庫存,可於3工作日發貨。
單價 /個 (每包:10個)
原價 HK$3.39
您付款
HK$3.051
單位 | Per unit | Per Pack* |
10 - 240 | HK$3.051 | HK$30.51 |
250 - 990 | HK$2.975 | HK$29.75 |
1000 - 2490 | HK$2.901 | HK$29.01 |
2500 - 4990 | HK$2.828 | HK$28.28 |
5000 + | HK$2.758 | HK$27.58 |
* 參考價格 |
- RS庫存編號:
- 712-7301
- 製造零件編號:
- EYP1BF134
- 製造商:
- Panasonic
- COO (Country of Origin):
- JP
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- JP
產品詳細資訊

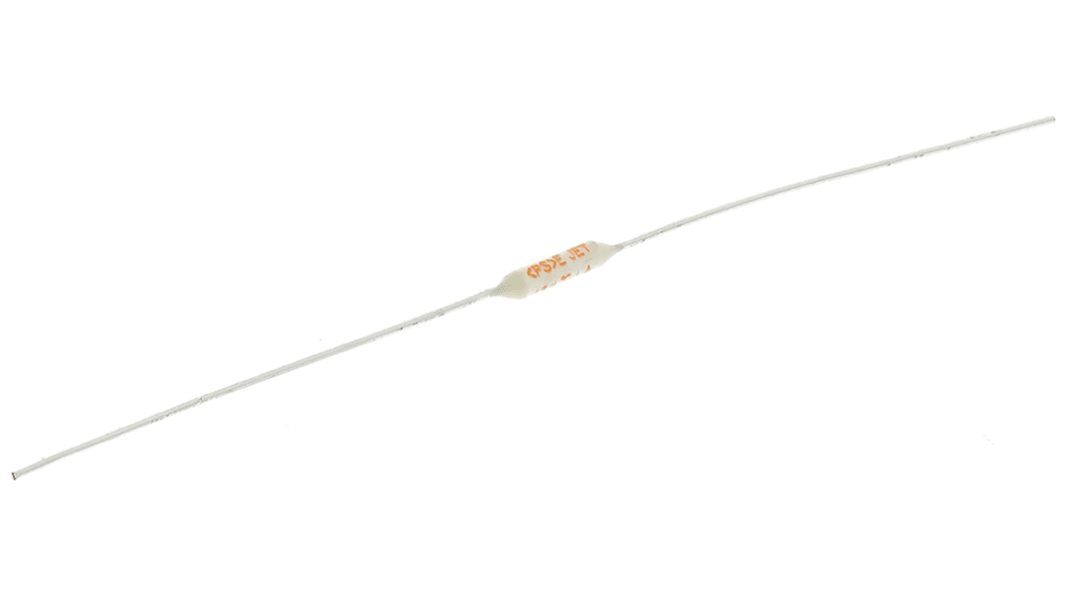

Panasonic Thermal Cutoffs EYP F Series
Panasonic Thermal Cutoffs (TCO) are compact and insulated, featuring quick temperature response, and mountable in a small space without insulation or protection. Panasonic TCO open reliably when the equipment becomes abnormal, and are not resettable.
PCB Wire Ended
Thermal fuses protect equipment against fire or thermal damage due to overload or overcharge. Suitable for use with standard single phase supplies up to 250V (230V typical). Temperature gradient: 1°C per minute.
規格
Attribute | Value |
Functioning Temperature | +134°C |
Holding Temperature | +105°C |
Maximum Current | 4 A |
Voltage Rating | 250V ac |
Lead Orientation | Axial |
Series | F |
Body Diameter | 2.2mm |
Body Height | 6mm |
Body Length | 6mm |
Wire Diameter | 0.53mm |
Wire Length | 38mm |
Fuse Type | Thermal Cutoff |
