Dormer Threading Tap, M8 Thread, Metric Standard, Machine Tap
- RS庫存編號:
- 812-5983
- 製造零件編號:
- E471M8
- 製造商:
- Dormer
小計（1 件）*
HK$278.10
訂單超過 HK$250.00 免費送貨
庫存資訊目前無法查詢
單位 | 每單位 |
|---|---|
| 1 + | HK$278.10 |
* 參考價格
- RS庫存編號:
- 812-5983
- 製造零件編號:
- E471M8
- 製造商:
- Dormer
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Dormer | |
| Product Type | Threading Tap | |
| Thread Size | M8 | |
| Sub Type | Green Shark | |
| Thread Standard | Metric | |
| Thread Direction | Right Hand | |
| Number of Pieces | 1 | |
| Overall Length | 90mm | |
| Material | HSS | |
| Hand/Machine Tap | Machine Tap | |
| Shank Diameter | 8mm | |
| Standards/Approvals | DIN 338, ISO 529 | |
| 選取全部 | ||
|---|---|---|
品牌 Dormer | ||
Product Type Threading Tap | ||
Thread Size M8 | ||
Sub Type Green Shark | ||
Thread Standard Metric | ||
Thread Direction Right Hand | ||
Number of Pieces 1 | ||
Overall Length 90mm | ||
Material HSS | ||
Hand/Machine Tap Machine Tap | ||
Shank Diameter 8mm | ||
Standards/Approvals DIN 338, ISO 529 | ||
豁免

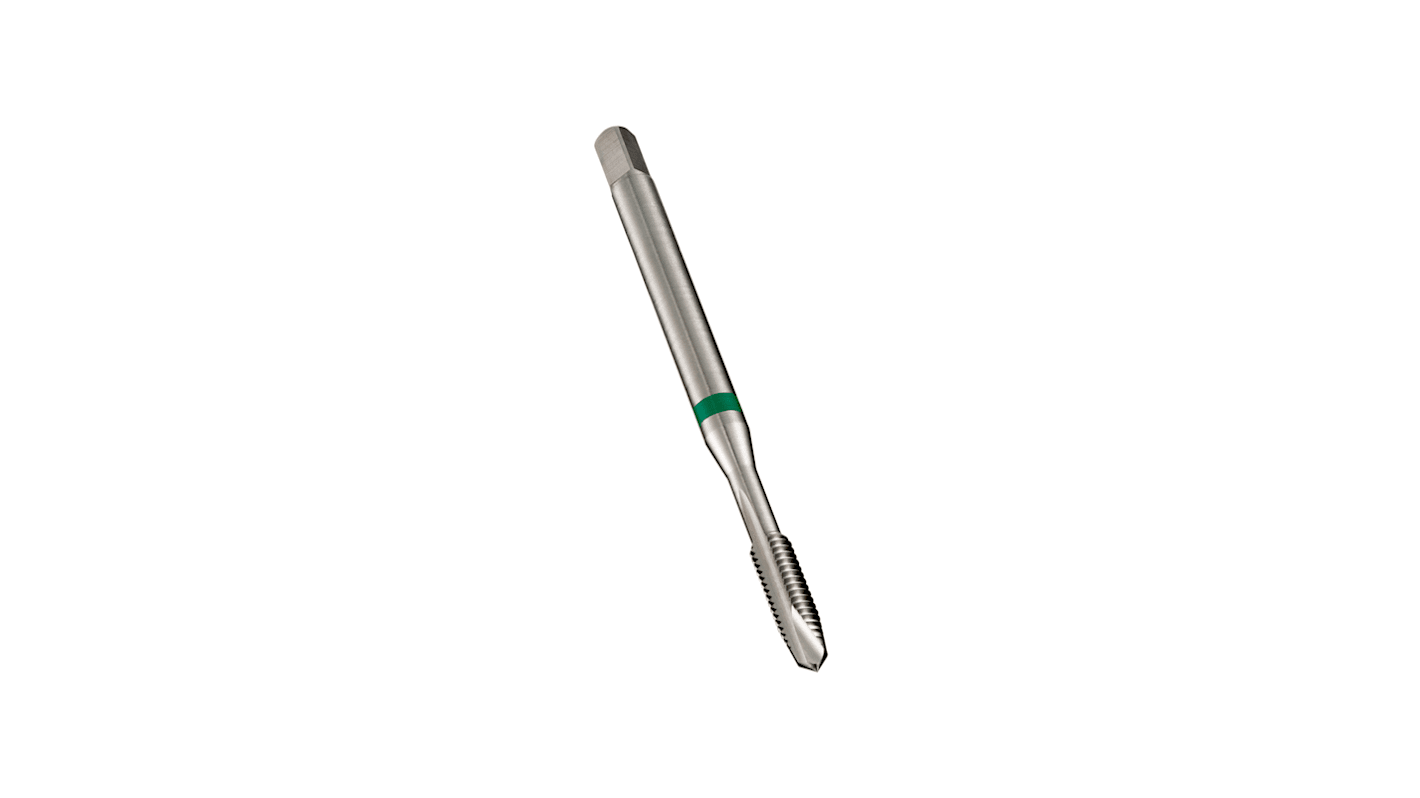

Dormer Threading Tap, M8 Thread, 1.25mm Pitch - E471M8
This is a high-performance machine tap designed for threading both blind and through holes in specific materials. It is manufactured from a special powder metallurgy tool steel, ensuring unbeatable toughness, edge strength, and wear resistance. With its unique features, this tap provides problem-free threading and improved accuracy.
Features & Benefits
• Constructed from premium-grade powdered metal cobalt high-speed steel (M35), the E471M8 tap offers exceptional toughness and wear resistance
• The tap design significantly reduces axial forces, enhancing thread accuracy
• By minimizing torque, this tap reduces machine wear and the risk of chipping or breakage
• The special flute geometry prevents swarf nesting, reducing the risk of re-cutting swarf during reversal
• The Yellow, Red, and Blue Shark spiral flute taps feature an edge treatment that increases strength and minimises micro-chipping on the cutting edges, improving overall performance and tool life
Applications
• Ideal for threading non-ferrous materials such as brass and bronze
• Suitable for continuous holes with a depth of 2.5 times the diametre (2.5xD)
What materials can I use the E471M8 tap for?
The E471M8 tap is excellent for threading non-ferrous materials, including brass and bronze.
What is the recommended tapping depth for this tap?
The recommended tapping depth is 35 mm (2.5 times the diametre).
Does the E471M8 tap work well for blind holes?
Yes, it is specifically designed for threading both blind and through holes.
