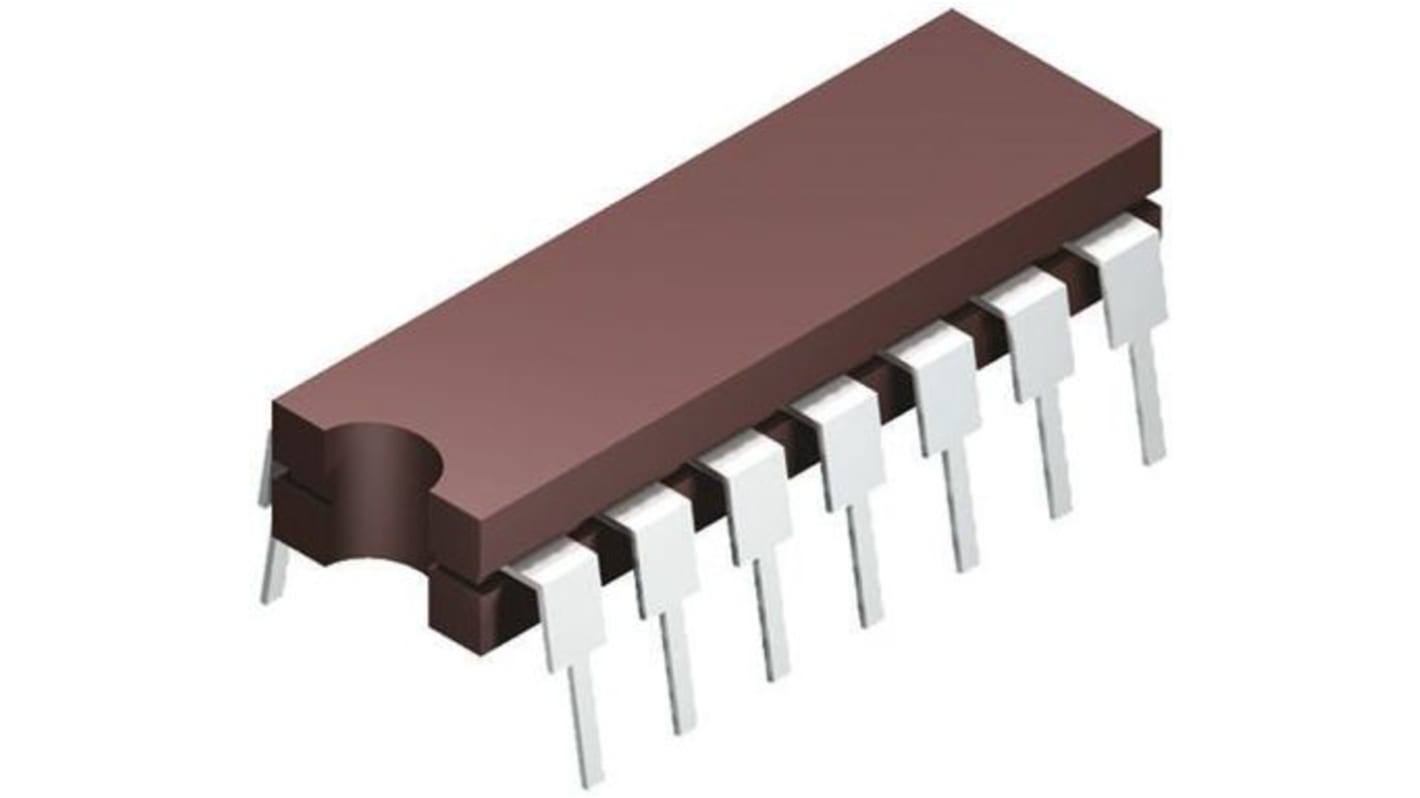

Renesas Electronics ICM7556IPDZ, Programmable Timer Circuit Dual 1MHz, 14-Pin PDIP

產品概覽和技術數據資料表
法例與合規
相容
產品詳細資訊

555 Timer, Intersil

Intersil offers the 555 timer, a highly stable controller capable of producing accurate timing pulses. With monostable operation, you control the time delay by one external resistor and one capacitor. With a stable operation, the frequency and duty cycle are accurately controlled with two external resistors and one capacitor.

Timing From Microseconds to Days
ICM7242 is a Long Range Fixed Timer

Timers/Timing Generators

規格
Attribute Value
Mounting Type Through Hole
Timer Type Standard
Package Type PDIP
Number of Internal Timers 2
Pin Count 14
Maximum Input Frequency 1MHz
Minimum Operating Supply Voltage 2 V
Maximum Operating Supply Voltage 18 V
Minimum Operating Temperature -25 °C
Maximum Operating Temperature +85 °C
Maximum Low Level Output Current 20mA
Maximum High Level Output Current -0.8mA
Height 4.95mm
Length 19.68mm
Dimensions 19.68 x 7.11 x 4.95mm
Width 7.11mm
1850 現貨庫存,可於3工作日發貨。
單價 毎管:25 個
HK$ 9.442
(不含稅)
單位
Per unit
Per Tube*
25 +
HK$9.442
HK$236.05
* 參考價格
