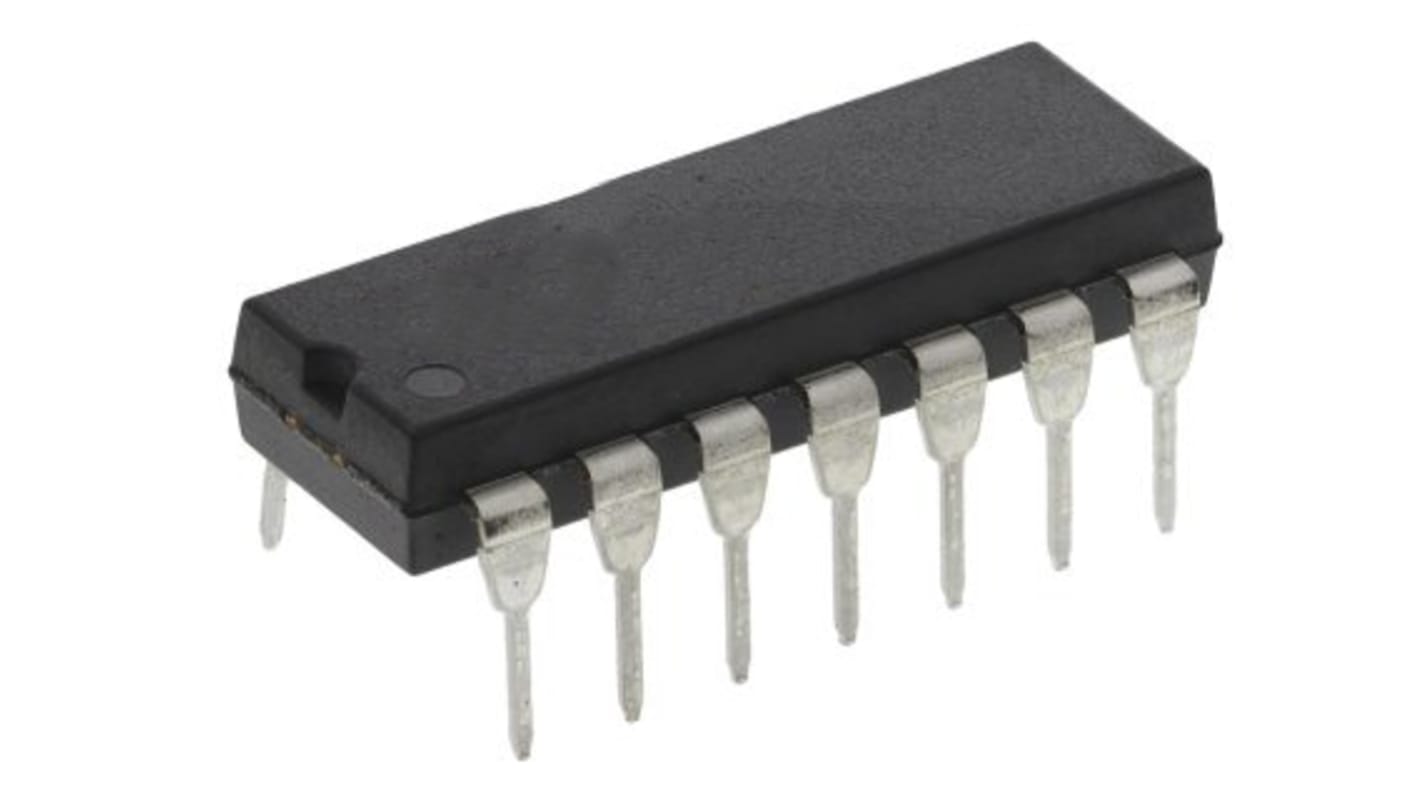

Maxim Integrated ICM7556IPD+, General Purpose Timer, Dual, 14-Pin PDIP
- RS庫存編號:
- 191-4247
- 製造零件編號:
- ICM7556IPD+
- 製造商:
- Maxim Integrated
查看所有Timer Circuits
75 現貨庫存，可於3工作日發貨。
單價 毎管：25 個
HK$44.776
| 單位 | Per unit | Per Tube* |
| 25 - 100 | HK$44.776 | HK$1,119.40 |
| 125 + | HK$40.299 | HK$1,007.475 |
| * 參考價格 | ||
- RS庫存編號:
- 191-4247
- 製造零件編號:
- ICM7556IPD+
- 製造商:
- Maxim Integrated
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Improved 2nd Source!
Wide Supply Voltage Range: 2-18V
No Crowbarring of Supply During Output Transition
Adjustable Duty Cycle
Low THRESHOLD, TRIGGER and RESET Currents
TTL Compatible
Monolithic, Low Power CMOS Design
Applications
Pulse Generator
Pulse Position Modulation
Precision Timing
Sequential Timing
Time Delay Generation
Missing Pulse Detector
Pulse Width Modulation
Wide Supply Voltage Range: 2-18V
No Crowbarring of Supply During Output Transition
Adjustable Duty Cycle
Low THRESHOLD, TRIGGER and RESET Currents
TTL Compatible
Monolithic, Low Power CMOS Design
Applications
Pulse Generator
Pulse Position Modulation
Precision Timing
Sequential Timing
Time Delay Generation
Missing Pulse Detector
Pulse Width Modulation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Mounting Type | Through Hole |
| Timer Type | Monolithic |
| Package Type | PDIP |
| Number of Internal Timers | 2 |
| Pin Count | 14 |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 16.5 V |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Low Level Output Current | 3.2mA |
| Maximum High Level Output Current | 2mA |
| Width | 7.87mm |
| Length | 19.43mm |
| Height | 4.45mm |
| Dimensions | 19.43 x 7.87 x 4.45mm |
