- RS庫存編號:
- 186-9269
- 製造零件編號:
- MC100ELT23DTG
- 製造商:
- onsemi
28 現貨庫存,可於3工作日發貨。
已增加
單價 个(每托盘 2 )
HK$33.84
單位 | Per unit | Per Pack* |
2 - 24 | HK$33.84 | HK$67.68 |
26 - 48 | HK$32.99 | HK$65.98 |
50 + | HK$32.495 | HK$64.99 |
* 參考價格 |
- RS庫存編號:
- 186-9269
- 製造零件編號:
- MC100ELT23DTG
- 製造商:
- onsemi
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

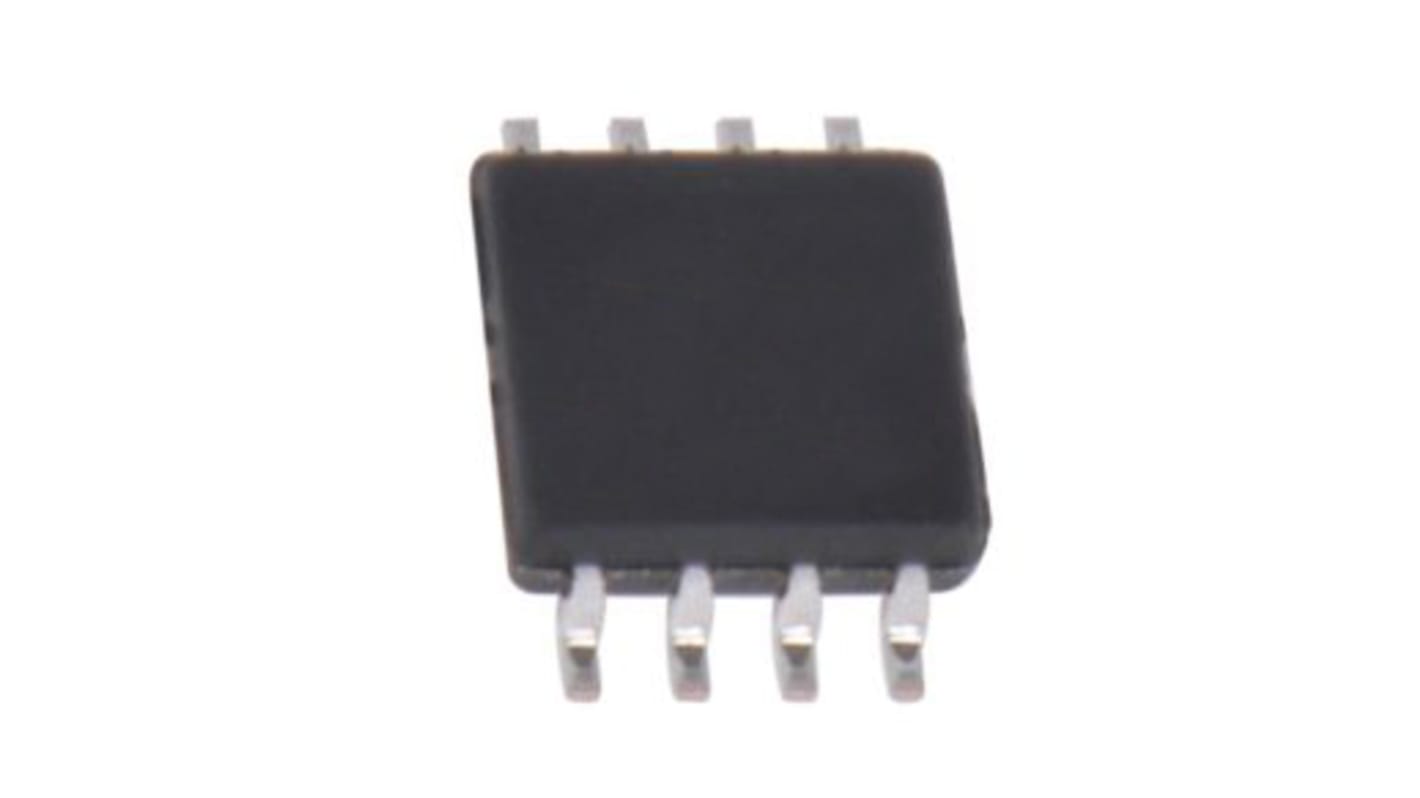

The MC100ELT23 is a dual differential PECL to TTL translator. Because PECL (Positive ECL) levels are used, only +5 V and ground are required. The small outline 8-lead package and the dual gate design of the ELT23 makes it ideal for applications which require the translation of a clock and a data signal. The PECL inputs are differential, therefore, the MC100ELT23 can accept any standard differential PECL input referenced from a VCC of 5.0 V.
3.5ns Typical Propagation Delay
24mA TTL Outputs
Flow Through Pinouts
ESD Protection: > 2 KV HBM, > 400 V MM
The 100 Series Contains Temperature Compensation
Operating Range VCC= 4.75 V to 5.25 V with GND= 0 V
Internal Input Pulldown Resistors
Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D
Transistor Count = 91 devices
24mA TTL Outputs
Flow Through Pinouts
ESD Protection: > 2 KV HBM, > 400 V MM
The 100 Series Contains Temperature Compensation
Operating Range VCC= 4.75 V to 5.25 V with GND= 0 V
Internal Input Pulldown Resistors
Moisture Sensitivity Level 1 For Additional Information, see Application Note AND8003/D
Transistor Count = 91 devices
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
---|---|
Mounting Type | Surface Mount |
Package Type | TSSOP |
Output Type | TTL |
Pin Count | 8 |
Dimensions | 3.1 x 3.1 x 1.95mm |
Logic Function | Translator |
Maximum Low Level Output Current | 24mA |
Maximum High Level Output Current | -3mA |
Propagation Delay Test Condition | 20pF |
Maximum Operating Supply Voltage | 5.25 V |
Maximum Propagation Delay Time @ Maximum CL | 5.5 ns @ 20 pF |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 4.75 V |
Minimum Operating Temperature | -40 °C |
