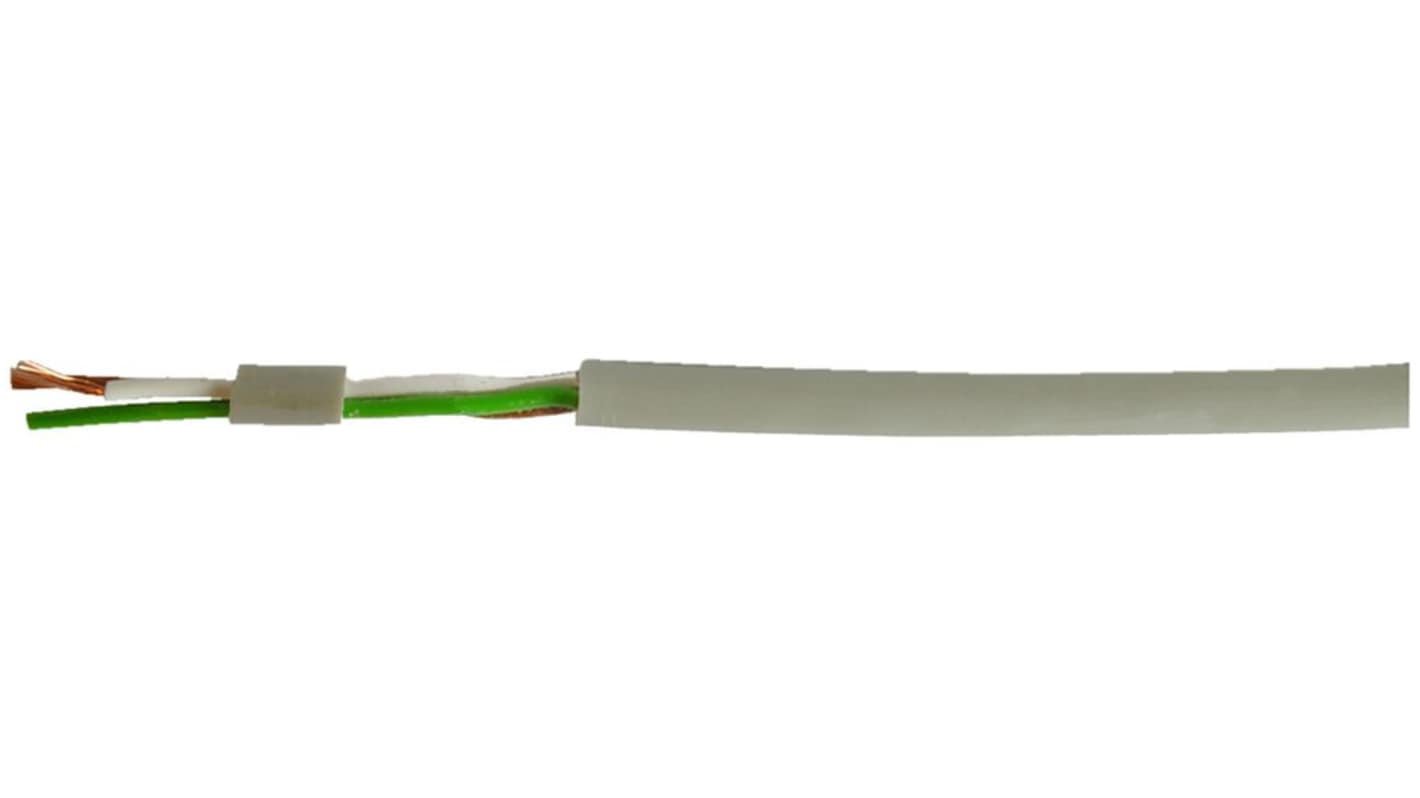

Cabloswiss LI-YY Series Multicore Industrial Cable, 4 Cores, 0.75 mm², Unscreened, 100m, Unshielded Shield, Multicore

查看此類別
不可供應
RS 不再對此產品進貨。
RS庫存編號:
349-895
Distrelec 貨號:
300-93-118
製造零件編號:
LI-YY 4X0.75 MM*2
製造商:
Cabloswiss
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Cabloswiss

Cross Sectional Area

0.75 mm²

Number of Cores

4

Screened/Unscreened

Unscreened

Length

100m

Shield Type

Unshielded

Cable Type

Multicore

Series

LI-YY

COO (Country of Origin):
DE
The Cabloswiss Cable LiYY 4 x 0.75mm² has bare copper conductors according to VDE 0295 cl.5 and insulation made of PVC compound type Yl2, in compliance with VDE 0207-4. The bending radius is 15 x D for static applications, and it operates within a temperature range of -20°C to +80°C (static application).

Working voltage 300 V
Test Voltage 1500 V
Insulation resistance 20 M .Km min at 20°C
Colour Grey
