Siemens Data Cable, 1.5 mm², 6 Cores, 1m, Purple Sheath
- RS庫存編號:
- 265-8873
- 製造零件編號:
- 6XV18307BH10
- 製造商:
- Siemens
- RS庫存編號:
- 265-8873
- 製造零件編號:
- 6XV18307BH10
- 製造商:
- Siemens
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊

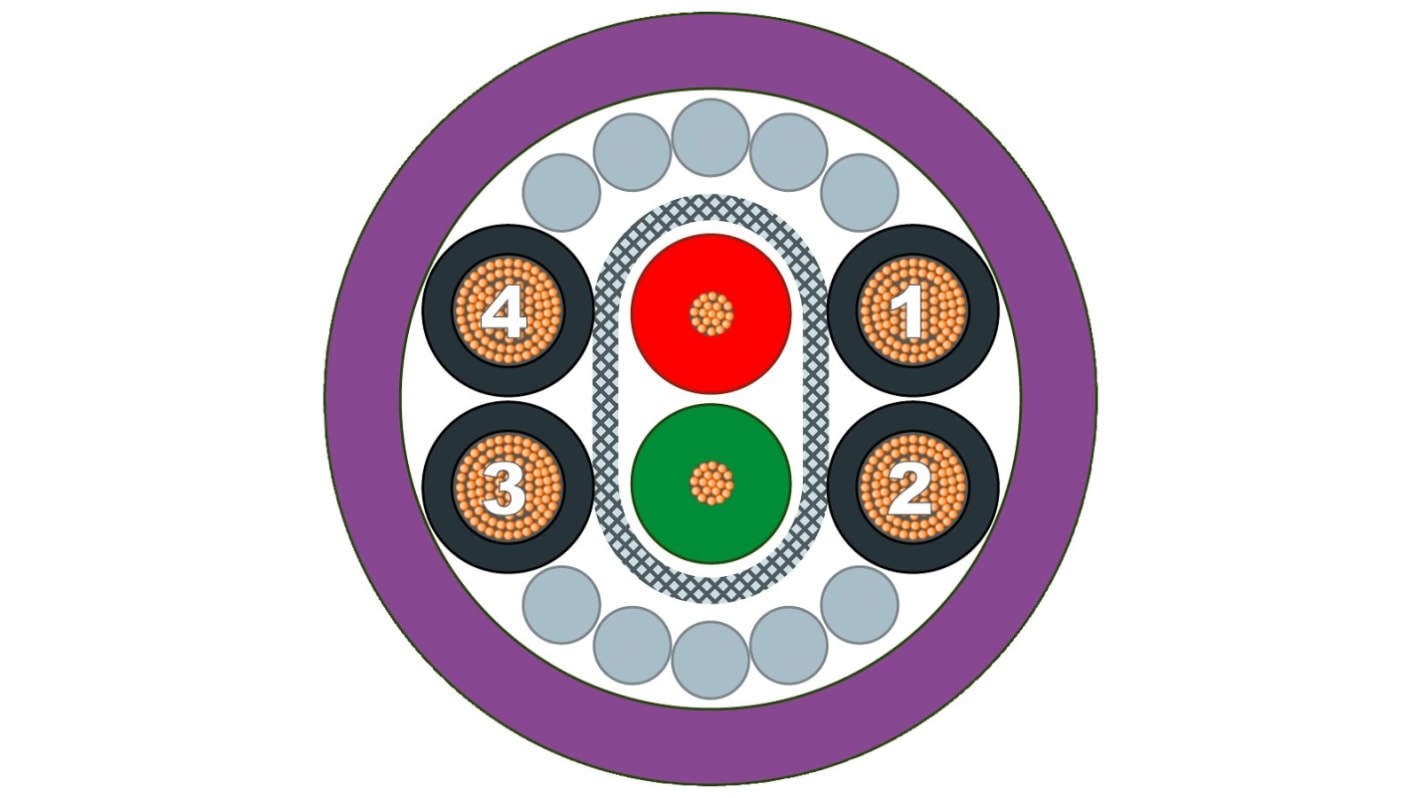

The Siemens PROFIBUS ECOFAST hybrid cable is pre-assembled with ECOFAST plug and socket. This is trailable cable and it has length of 1.0 meter.
Hybrid cable for connection of ECOFAST stations
Shield resistance per length maximum: 15 Ω/km
Insulation resistance coefficient: 20 GΩ·m
Operating voltage maximum: 80 V
Shield resistance per length maximum: 15 Ω/km
Insulation resistance coefficient: 20 GΩ·m
Operating voltage maximum: 80 V
規格
Attribute | Value |
|---|---|
| Cross Sectional Area | 1.5 mm² |
| Number of Cores | 6 |
| Length | 1m |
| Shield Type | Aluminium Foil, Tinned Copper Braid |
| Sheath Colour | Purple |
| Cable Type | Hybrid |
| Outer Diameter | 11mm |
| Series | PB ECOFAST |
