L1F2-U380100003001 Lumileds, LUXEON FlipChip UV Series UV LED, 380 → 390nm 662mW, 2-Pin Surface Mount package
- RS庫存編號:
- 897-8844
- 製造零件編號:
- L1F2-U380100003001
- 製造商:
- Lumileds

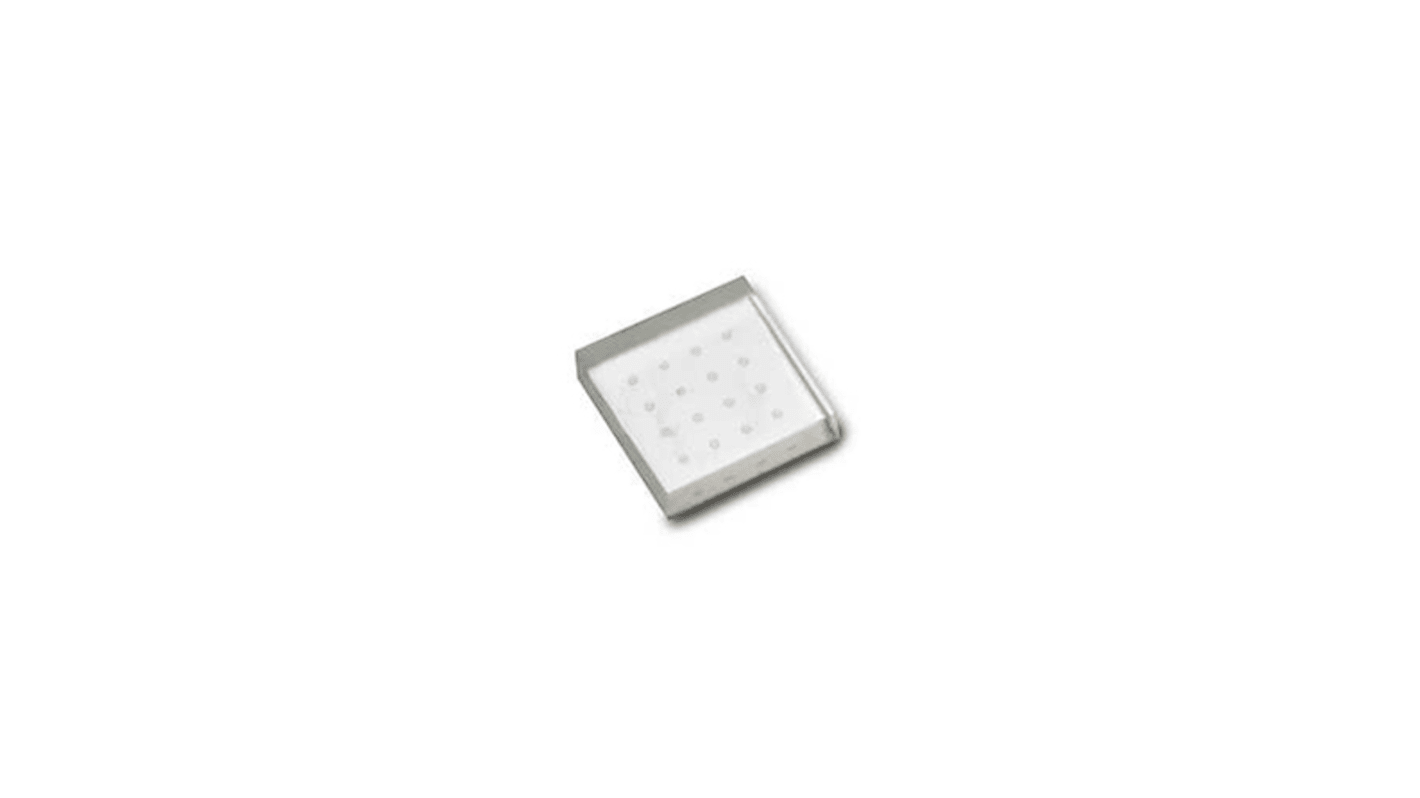

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有UV LEDs
當前暫無庫存，可於2023/10/2發貨，3 工作日送達。
單價 個
HK$84.66
| 單位 | Per unit |
| 1 - 124 | HK$84.66 |
| 125 - 249 | HK$82.79 |
| 250 + | HK$81.03 |
包裝方式：
- RS庫存編號:
- 897-8844
- 製造零件編號:
- L1F2-U380100003001
- 製造商:
- Lumileds
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Lumileds LUXEON FlipChip UV LEDs
The LUXEON FlipChip UV series from Lumileds are a family of UltraViolet LEDs in a chip-scale package. This extremely compact package comes with a UV wavelength of between 380 and 410nm. The LUXEON FlipChip UV LEDs can be packed closely together for Chip-On-Board (COB) solutions. They also offer tight beam control.
These high power density UV LEDs have a batwing radiation pattern making them great for wide emission angles. The LUXEON FlipChip UV LEDs are designed for speciality lighting.
These high power density UV LEDs have a batwing radiation pattern making them great for wide emission angles. The LUXEON FlipChip UV LEDs are designed for speciality lighting.
Features of the LUXEON FlipChip UV LEDs:
Chip-scale package 1 x 1 x 0.25 mm
High power density
UV wavelength: 380 to 410 nm
No wire bonds
5 sided emitter
Batwing emission pattern
Low thermal resistance
Chip-scale package 1 x 1 x 0.25 mm
High power density
UV wavelength: 380 to 410 nm
No wire bonds
5 sided emitter
Batwing emission pattern
Low thermal resistance
Note
Please note, due to their extremely small dimensions, these LEDs cannot be mounted using manual techniques.
Ultraviolet (UV) LEDs, Lumileds
規格
| Attribute | Value |
| Number of LEDs | 1 |
| Peak Wavelength | 380 → 390nm |
| Radiant Flux | 662mW |
| Package Type | CSP |
| Number of Pins | 2 |
| Mounting Type | Surface Mount |
| Height | 0.25mm |
| Length | 0.98mm |
| Width | 0.98mm |
| Dimensions | 1 x 1 x 0.25mm |
| Series | LUXEON FlipChip UV |
