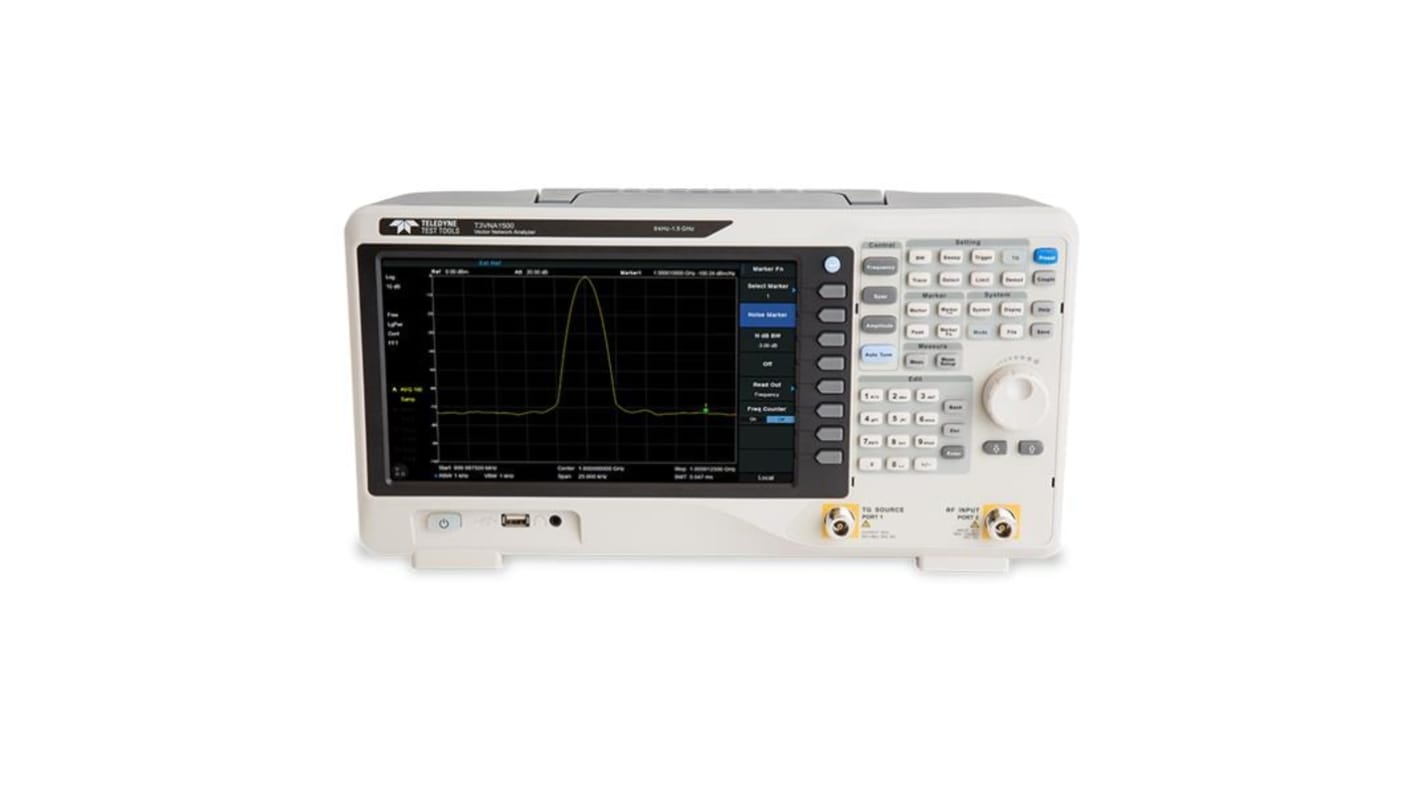

Teledyne LeCroy T3VNA3200 Benchtop 100kHz to 3.2GHz Vector Network Analyzer

The Teledyne Test Tools T3VNA3200 Vector Network Analyser has a Vector Network Analysis frequency range of 100 kHz up to a maximum of 3.2 GHz and a Spectrum Analysis frequency range from 9 kHz up to a maximum of 3.2 GHz. The small footprint and easy user interface is augmented by a high performance specification with many advanced measurement functions and capabilities.

156 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
Total Amplitude Accuracy < 1.2 dB
Distance to fault capability using VNA time domain analysis as standard
Calibration and Utility Kits as standard
Standard Preamplifier
Built-in Advanced Measurement capability as standard (CHP, ACPR, OBW, CNR, TOI, etc)
10.1 lnch WVGA (1024 x 600) Display
1 Hz Minimum Resolution Bandwidth (RBW)
All-Digital IF Technology
