Infineon ICE3B1565JFKLA1 AC-DC, SMPS Controller 76 kHz 8-Pin, PDIP
- RS庫存編號:
- 906-3069
- 製造零件編號:
- ICE3B1565JFKLA1
- 製造商:
- Infineon

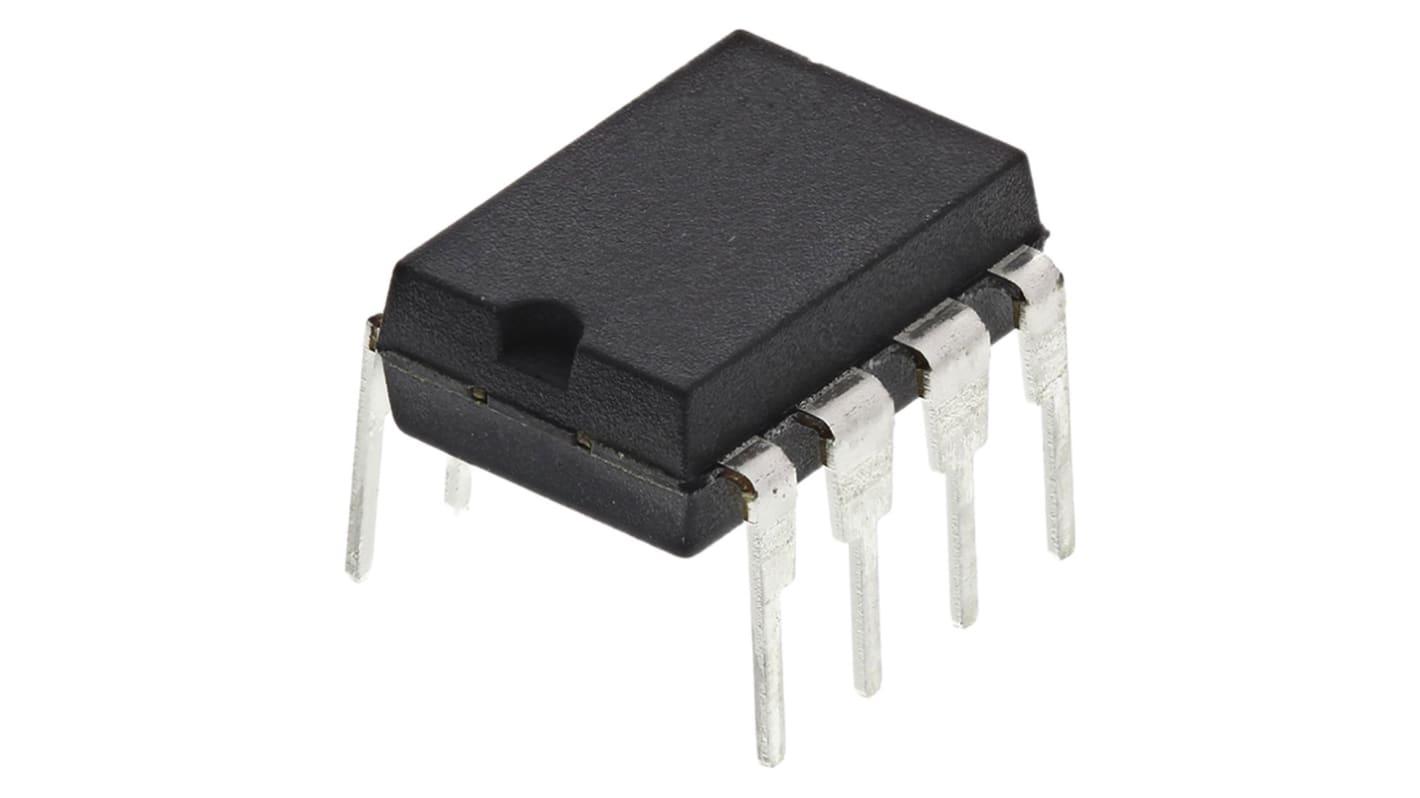

此圖片僅供參考，請參閲產品詳細資訊及規格
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
- RS庫存編號:
- 906-3069
- 製造零件編號:
- ICE3B1565JFKLA1
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Controller Type | SMPS Controller | |
| Number of Outputs | 1 | |
| Current Conversion Type | AC-DC | |
| Maximum Switching Frequency | 76 kHz | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Dimensions | 9.77 x 6.6 x 4.8mm | |
| Maximum Input Voltage | 26 V | |
| Maximum Operating Temperature | +130 °C | |
| Maximum Output Voltage | 650 V | |
| Operating Temperature Range | -25 → +130 °C | |
| Output Voltage Range | Maximum of 650 V | |
| Minimum Operating Temperature | -25 °C | |
| Input Voltage Range | Maximum of 26 V | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Controller Type SMPS Controller | ||
Number of Outputs 1 | ||
Current Conversion Type AC-DC | ||
Maximum Switching Frequency 76 kHz | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 8 | ||
Dimensions 9.77 x 6.6 x 4.8mm | ||
Maximum Input Voltage 26 V | ||
Maximum Operating Temperature +130 °C | ||
Maximum Output Voltage 650 V | ||
Operating Temperature Range -25 → +130 °C | ||
Output Voltage Range Maximum of 650 V | ||
Minimum Operating Temperature -25 °C | ||
Input Voltage Range Maximum of 26 V | ||
AC-DC Integrated Power Stage - CoolSET™, Infineon
The Infineon Off-line SMPS Current mode controller comes complete with integrated 650V CoolMOS and start up cell (frequency jitter mode). The PMIC BiCMOS technology has a 26V VCC range that covers the changes in the auxiliary supply when the CV/CC regulation is applied to the secondary side. It also has an active burst mode that offers low standby power as well as auto restart mode features to protect from VCC over-voltage/under-voltage, output open loop and over-temperature The ICE3B1565J has a fixed frequency current mode flyback PWM controller and can be used in a variety of applications from Smart meters, DVD players, set top boxes, game consoles along with LED TV’s.
Low standby power <100mW)
Modulated gate drive
Low EMI noise
Modulated gate drive
Low EMI noise
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
AC-DC Power Conversion, Infineon
