Linear Bearings

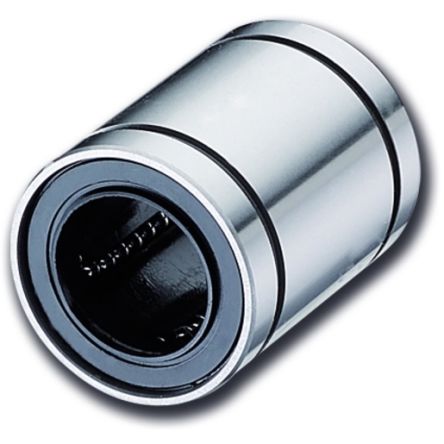

Linear Ball Bearings are designed to provide a free motion in one direction. These are the most common type of linear slide, offering a smooth precision motion along a single axis linear design. Most commonly used within the furniture industry as a ball-bearing drawer slide.

Linear plain bearings are bearing elements for translation type motion (motion along a path). Unlike roller bearings, linear plain bearings move on a shaft or static guideway, as opposed to on movable component slides. Depending on the type of guiding system, the sliding layer is applied to the rigid or movable component.

How do they work?

Linear Ball Bearings are housed in a linear base, with self-lubrication properties that increase reliability. Most commonly constructed from materials such as aluminium, steel and the ball bearing slides consist of two linear rows of ball bearings contained by four rods and on differing sides of the base. This low friction linear movement can be powered by either a drive mechanism or by hand.

Linear plain bearings are available in a wide range of sizes and material types, suited to different applications. They come in three main configurations: closed, open and split.

Applications

Ball-bearing slide applications include delicate instrumentation, robotic assembly, cabinetry, appliances and clean room environments, which primarily serve the manufacturing industry but also the furniture, electronics and construction industries.

Linear plain bearings are resistant to shock and contamination. They offer high static load capacity and low wear and make little noise. These characteristics make them suitable for applications where the bearing position must be low maintenance or maintenance-free, or where lubrication is either impermissible or undesirable. They are found in everyday applications including...

  • Printers Lab equipment
  • Thermoperformance
  • Additive manufacturing
  • Welding machines
  • Stone saws and heavy-duty cutters
  • Assembly and inspection stations
  • Seat adjustment and shock absorption

...
顯示內容 隱藏內容

篩選條件

正在檢視 1 - 20,共 242 項產品
Results per page
Description Price Inner Diameter Linear Ball Bearing Type Linear Bearing Type Base to Centre Height Seals Inside Diameter Outside Diameter Length Dynamic Load Rating Static Load Rating
RS庫存編號 617-4624
製造零件編號RJUM-01-10
BrandIgus
HK$116.06
單位
- - Linear Plain Bearing - - 10mm 19mm 29mm 725N 5075N
RS庫存編號 667-1475
製造零件編號GFM-0810-05
BrandIgus
HK$125.02
毎包:8 個
Bag(s)
- - Linear Plain Bearing - - 8mm 10mm 5.5mm - -
RS庫存編號 489-4023
製造零件編號R060202510
HK$483.50
單位
- Closed Linear Ball Bearing - With Seals 25mm 40mm 58mm 2480N 2280N
RS庫存編號 667-1471
製造零件編號GFM-0608-04
BrandIgus
HK$152.16
毎包:10 個
Bag(s)
- - Linear Plain Bearing - - 6mm 8mm 4mm - -
RS庫存編號 311-3632
製造零件編號JUM-01-12
BrandIgus
HK$37.44
單位
- - Replacement Liners - - 12mm - 31mm - -
RS庫存編號 489-4017
製造零件編號R060202010
HK$382.95
單位
- Closed Linear Ball Bearing - With Seals 20mm 32mm 45mm 1390N 1250N
RS庫存編號 311-3648
製造零件編號JUM-01-16
BrandIgus
HK$44.24
單位
- - Replacement Liners - - 16mm - 35mm - -
RS庫存編號 284-9144
製造零件編號LBBR 30-2LS
HK$322.62
單位
- Closed Linear Ball Bearing - With Seals 30mm 40mm 50mm 3150N 2700N
RS庫存編號 667-1484
製造零件編號GFM-1012-07
BrandIgus
HK$95.95
毎包:6 個
Bag(s)
- - Linear Plain Bearing - - 10mm 12mm 7mm - -
RS庫存編號 489-4045
製造零件編號67121240
HK$253.08
單位
- Open Linear Ball Bearing - With Seals 12mm 22mm 32mm 1060N 510N
RS庫存編號 409-353
製造零件編號R067021240
HK$272.46
單位
- Closed Linear Ball Bearing - With Seals 12mm 22mm 32mm 1140N 620N
RS庫存編號 194-7186
製造零件編號KGSNOS25-PP-AS
BrandINA
HK$1,223.11
單位
- Open Linear Ball Bearing 30mm With Seals 25mm - 58mm 3950N 4300N
RS庫存編號 194-7181
製造零件編號KGSNG40-PP-AS
BrandINA
HK$2,013.96
單位
- Open Linear Ball Bearing 45mm With Seals 40mm - 80mm 10200N 9600N
RS庫存編號 284-9015
製造零件編號LBBR 16
HK$205.95
單位
- Closed Linear Ball Bearing - Without Seals 16mm 24mm 30mm 930N 630N
RS庫存編號 284-9712
製造零件編號LBCR20 D
HK$537.77
單位
- Closed Linear Ball Bearing - Without Seals 20mm 32mm 45mm 2240N 2040N
RS庫存編號 409-359
製造零件編號R067124040
HK$806.36
單位
- Open Linear Ball Bearing - With Seals 40mm 62mm 80mm 8620N 4480N
RS庫存編號 172-1231
製造零件編號KBO30-PP-AS
BrandINA
HK$1,104.77
單位
- Open Linear Ball Bearing - With Seals 30mm 47mm 68mm 3700N 3000N
RS庫存編號 712-5033
製造零件編號RJ260UM-02-16
BrandIgus
HK$106.85
單位
- - Linear Plain Bearing - - 16mm 24mm 30mm 600N 4200N
RS庫存編號 172-1278
製造零件編號KH12-B
BrandINA
HK$159.79
單位
- Closed Linear Ball Bearing - Without Seals 12mm 19mm 28mm 800N 740N
RS庫存編號 489-4051
製造零件編號67121640
HK$305.90
單位
- Open Linear Ball Bearing - With Seals 16mm 26mm 36mm 1500N 830N
