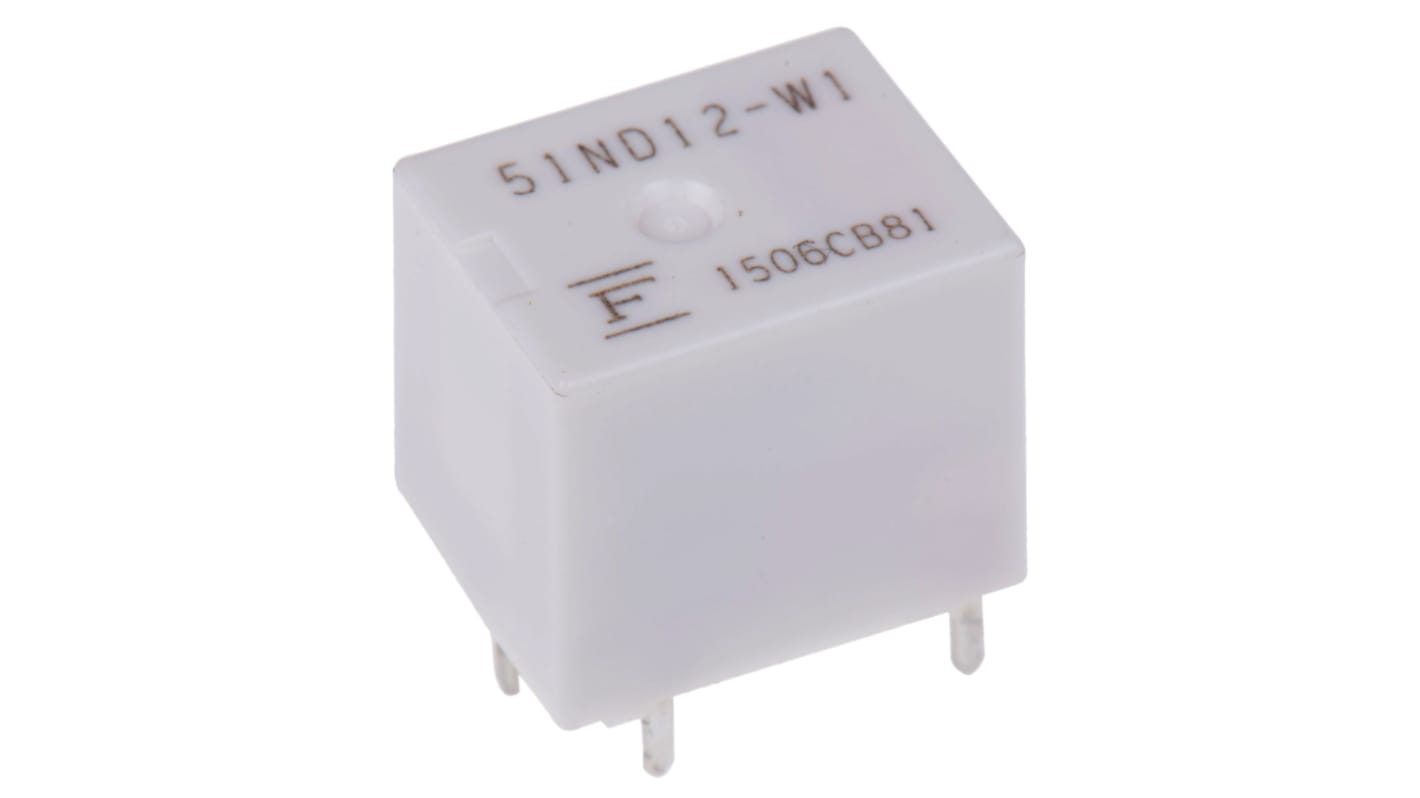

Fujitsu PCB Mount Automotive Relay, 12V dc Coil Voltage, 25A Switching Current, SPDT
- RS庫存編號:
- 790-3372
- 製造零件編號:
- FBR51ND12-W1
- 製造商:
- Fujitsu
- RS庫存編號:
- 790-3372
- 製造零件編號:
- FBR51ND12-W1
- 製造商:
- Fujitsu
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
Fujitsu FBR51 Series
FBR51 Series Automotive power relay features a high current contact capacity of 35 A for10 minutes and 30 A for 1 hour
Contact rating 25 A @ 14 V dc (motor free load)
Electrical life minimum 2 x 105 operations
Operating temperature range -40°C to +85°C (no frost)
Electrical life minimum 2 x 105 operations
Operating temperature range -40°C to +85°C (no frost)
規格
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Coil Power | 600mW |
| Coil Resistance | 240 Ω |
| Contact Configuration | SPDT |
| Number of Poles | 1 |
| Switching Current | 25A |
| Maximum Switching Voltage DC | 16V dc |
| Mounting Type | PCB Mount |
| Terminal Type | PCB Pin |
| Contact Material | Silver Alloy |
| Life | 2 x 10⁵ Operations |
| Length | 15.5mm |
| Depth | 12.1mm |
| Height | 13.7mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
