STMicroelectronics BLUENRG-332AT Bluetooth Module 5.3
- RS庫存編號:
- 249-6724P
- 製造零件編號:
- BLUENRG-332AT
- 製造商:
- STMicroelectronics

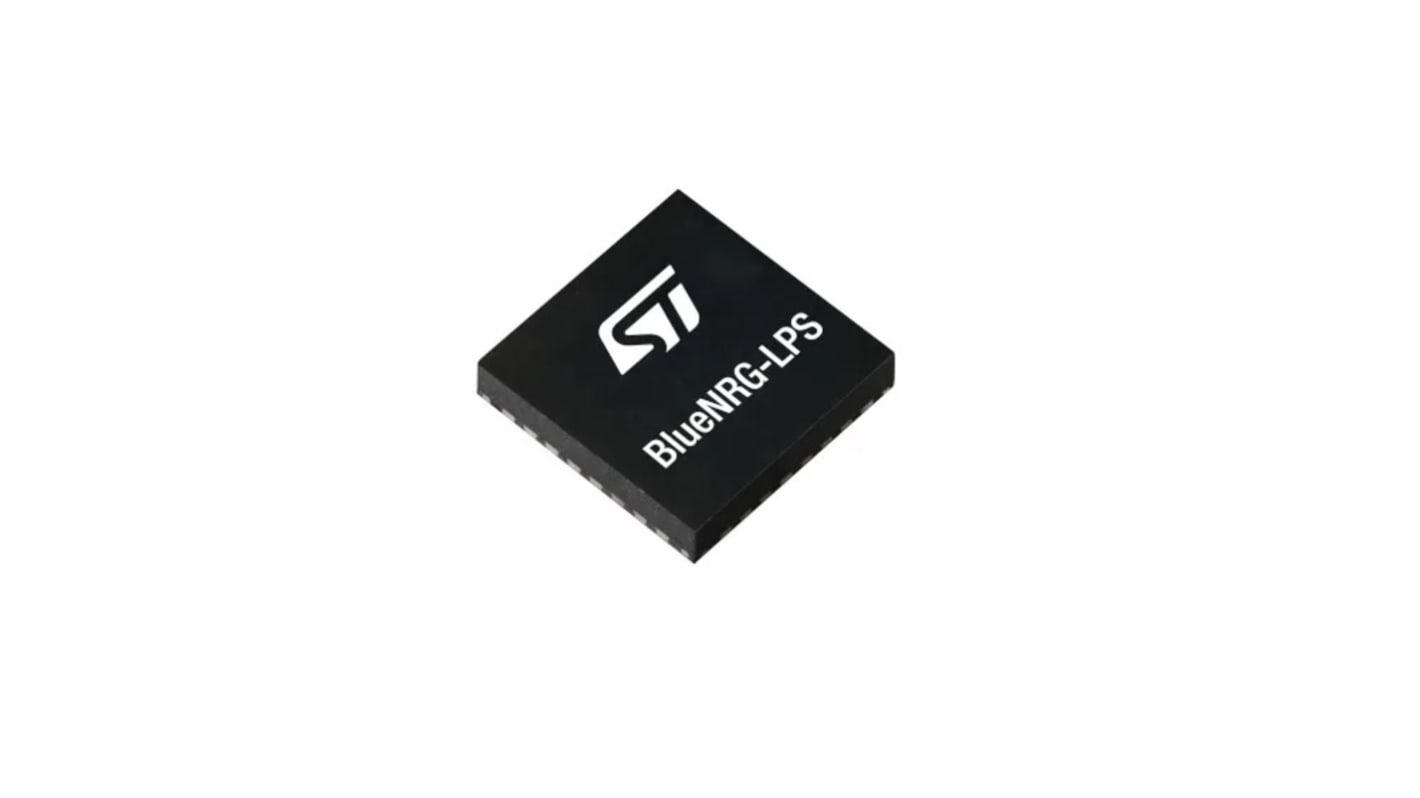

此圖片僅供參考，請參閲產品詳細資訊及規格
享受批量購買折扣
額外添加100件可節省HK$80.00
查看批量定價選項小計 10 件 (按連續帶提供)*
HK$207.00
訂單超過 HK$250.00 免費送貨
有庫存
- 398 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 節省 |
|---|---|---|
| 10 - 98 | HK$20.70 | - |
| 100 - 248 | HK$19.90 | HK$80.00 |
| 250 - 498 | HK$18.90 | HK$450.00 |
| 500 + | HK$18.30 | HK$1,200.00 |
* 參考價格
- RS庫存編號:
- 249-6724P
- 製造零件編號:
- BLUENRG-332AT
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Product Type | Bluetooth Module | |
| Bluetooth Version | 5.3 | |
| Data Rate | 2Mbps | |
| Maximum Output Power | 8dBm | |
| Receiver Sensitivity | -97dBm | |
| Frequency | 64MHz | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Length | 5mm | |
| Height | 1mm | |
| Series | BlueNRG | |
| Standards/Approvals | ANSI/ESDA/JEDEC JS-001, ANSI/ESDA/STM5.3.1, JS-002 | |
| Width | 5mm | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Product Type Bluetooth Module | ||
Bluetooth Version 5.3 | ||
Data Rate 2Mbps | ||
Maximum Output Power 8dBm | ||
Receiver Sensitivity -97dBm | ||
Frequency 64MHz | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Length 5mm | ||
Height 1mm | ||
Series BlueNRG | ||
Standards/Approvals ANSI/ESDA/JEDEC JS-001, ANSI/ESDA/STM5.3.1, JS-002 | ||
Width 5mm | ||
The STMicroelectronics ultra-low power programmable Bluetooth® Low Energy wireless SoC solution. It embeds STMicroelectronics’s state-of-the-art 2.4 GHz radio IPs, optimized for ultra-low-power consumption and excellent radio performance, for unparalleled battery lifetime. It is compliant with Bluetooth® Low Energy SIG core specification version 5.3 addressing point-to-point connectivity and Bluetooth Mesh networking and allows large-scale device networks to be established in a reliable way.
2 Mbps data rate
Long range (Coded PHY)
Advertising extensions
Channel selection algorithm #2
GATT caching
Direction finding (AoA/AoD)
LE Ping procedure
Periodic advertising and periodic advertising sync transfer
LE L2CAP connection-oriented channel
LE power control and path loss monitoring
