Panasonic BR2032 Button Battery, 3V, 20mm Diameter

From Panasonic, this range of non-rechargeable lithium button batteries (sometimes called coin batteries or coin cells) are a compact power solution. They can be used to power smaller electronic devices such as watches, calculators, cameras and they can offer memory support.

• These button batteries have a wide operating temperature range of -30°C up to +80°C. They have very low current drain even at higher operating temperatures.
• The self-discharge on this range of coin cells is low, giving them an excellent shelf life.
• They have excellent reliability and a high capacity.
• Panasonic lithium button batteries have resistance to continuous discharge and to over discharge.
• The batteries with PCB pins have a vertical or horizontal orientation. They have a single pin negative and two pins positive.

Lithium coin batteries are used in electronic devices that require a small, compact source of power. Example applications include:
• Calculators
• Car keys
• Toys
• Cameras / film equipment
• Watches
• Hearing aids

• Always install the batteries correctly as per instruction
• Ensure that the contact points are clean and conductive
• Do not mix different types of battery
• Do not heat or attempt to recharge the battery
• Do not dispose of in a fire

Keep button batteries out of the reach of children. Consult a doctor immediately if ingested.

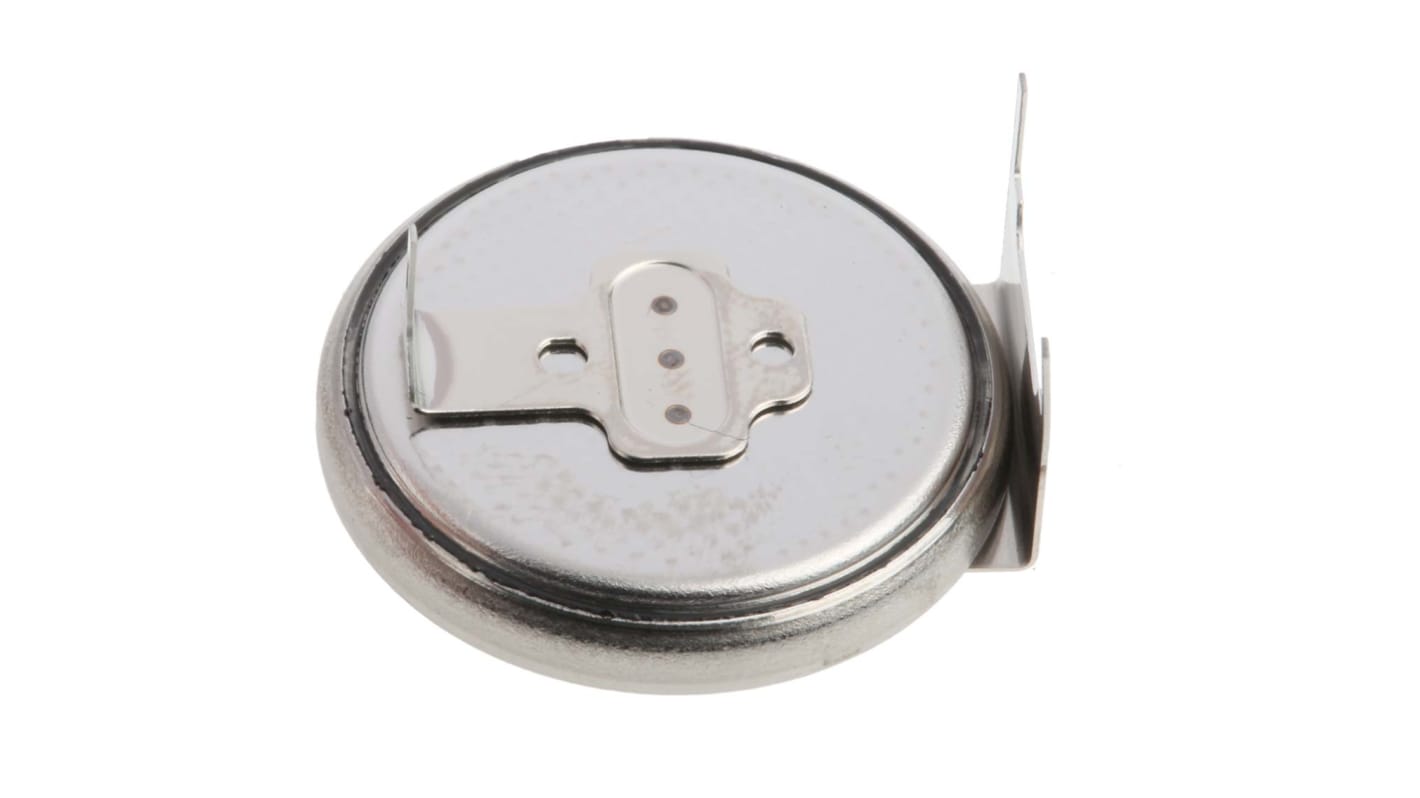

This BR2032 button battery from Panasonic features a nominal voltage of 3 V with a 190 mAh capacity. This lithium polycarbon monofluoride button battery has a 20 mm diameter and a height of 3.2 mm. The PCB pin terminals of the BR2032 button battery allow you to install it into a circuit board. This battery requires vertical orientation when installed.

Coin & Button Cells, Lithium

All cells in this range have a voltage of 3V.
