Microchip, LIN Transceiver 20 kBd, 8-Pin SOIC
- RS庫存編號:
- 666-5729P
- 製造零件編號:
- MCP2021-330E/SN
- 製造商:
- Microchip

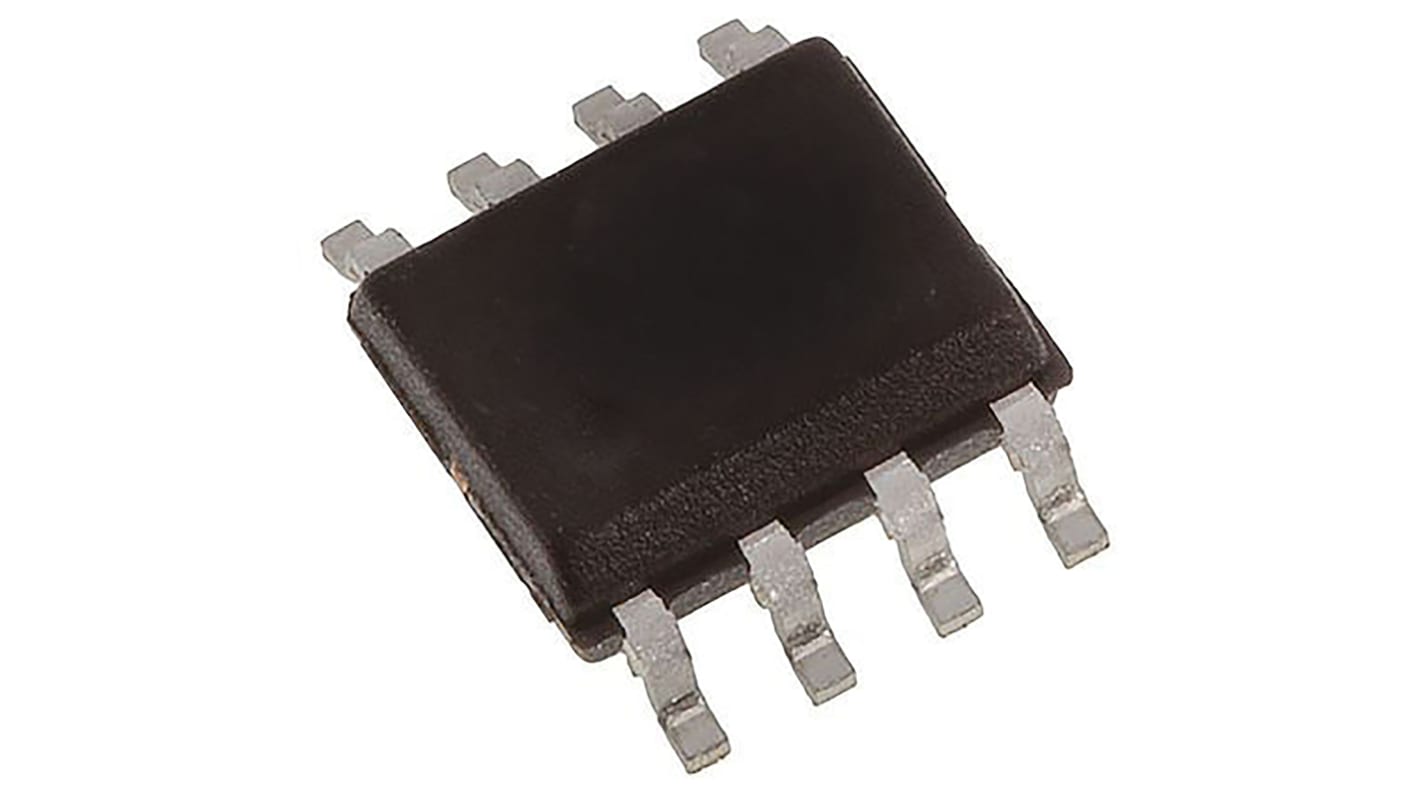

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計 25 件 (以管提供)*
HK$362.15
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 25 - 45 | HK$14.486 |
| 50 + | HK$14.268 |
* 參考價格
- RS庫存編號:
- 666-5729P
- 製造零件編號:
- MCP2021-330E/SN
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Maximum Data Rate | 20kBd | |
| Product Type | LIN Transceiver | |
| Number of Transceivers | 1 | |
| Sub Type | CAN Controller | |
| Power Down Mode | Shutdown | |
| Supply Current | 1mA | |
| Mount Type | Surface | |
| Interface Type | LIN, SAE J2602 | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 6V | |
| Maximum Supply Voltage | 18V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 125°C | |
| Series | MCP2021 | |
| Standards/Approvals | No | |
| Height | 1.25mm | |
| Length | 4.9mm | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Maximum Data Rate 20kBd | ||
Product Type LIN Transceiver | ||
Number of Transceivers 1 | ||
Sub Type CAN Controller | ||
Power Down Mode Shutdown | ||
Supply Current 1mA | ||
Mount Type Surface | ||
Interface Type LIN, SAE J2602 | ||
Package Type SOIC | ||
Pin Count 8 | ||
Minimum Supply Voltage 6V | ||
Maximum Supply Voltage 18V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 125°C | ||
Series MCP2021 | ||
Standards/Approvals No | ||
Height 1.25mm | ||
Length 4.9mm | ||
Automotive Standard No | ||
MCP2021 LIN Transceivers
The Microchip MCP2021 is a LIN Transceiver that provides a bi-directional, half-duplex communication Interface. Designed to provide a communications Interface between a Microcontroller and a Local Interconnect Network (LIN) the MCP2021 complies to LIN 1.3, 2.1 and SAE J2602-2 specifications. Integrated is a 50mA Voltage Regulator with a 5 V or 3.3 V output, depending on the model.
Features
Compliant with LIN Bus 1.3, 2.1 and SAE J2602-2 Specifications
Supports Baud Rates up to 20 kBd
43 V Load Dump Protected
Low EMI
Wide Supply Voltage: 6 V to 18 V
Extended Temperature Range: -40 to +125°C
Interface to EUSART and USART
Automatic Thermal Shutdown
On-Chip Voltage Regulator
Two Low-power Modes
