可享批量折扣
查看批量定價選項小計（1 件）*
HK$312.80
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 15 件從 2026年9月14日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$312.80 |
| 10 - 24 | HK$297.70 |
| 25 - 49 | HK$291.20 |
| 50 - 249 | HK$285.40 |
| 250 + | HK$234.90 |
* 參考價格
Sponsored
- RS庫存編號:
- 504-240
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Chassis Mount Transformer | |
| Primary Voltage | 230 V ac | |
| Secondary Voltage | 6 V ac | |
| Number of Outputs | 2 | |
| Power | 50VA | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 62mm | |
| Minimum Operating Frequency | 50Hz | |
| Length | 79mm | |
| Depth | 65mm | |
| Weight | 1kg | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | IEC 61558-2-6 | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Chassis Mount Transformer | ||
Primary Voltage 230 V ac | ||
Secondary Voltage 6 V ac | ||
Number of Outputs 2 | ||
Power 50VA | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Width 62mm | ||
Minimum Operating Frequency 50Hz | ||
Length 79mm | ||
Depth 65mm | ||
Weight 1kg | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals IEC 61558-2-6 | ||
- COO (Country of Origin):
- PL

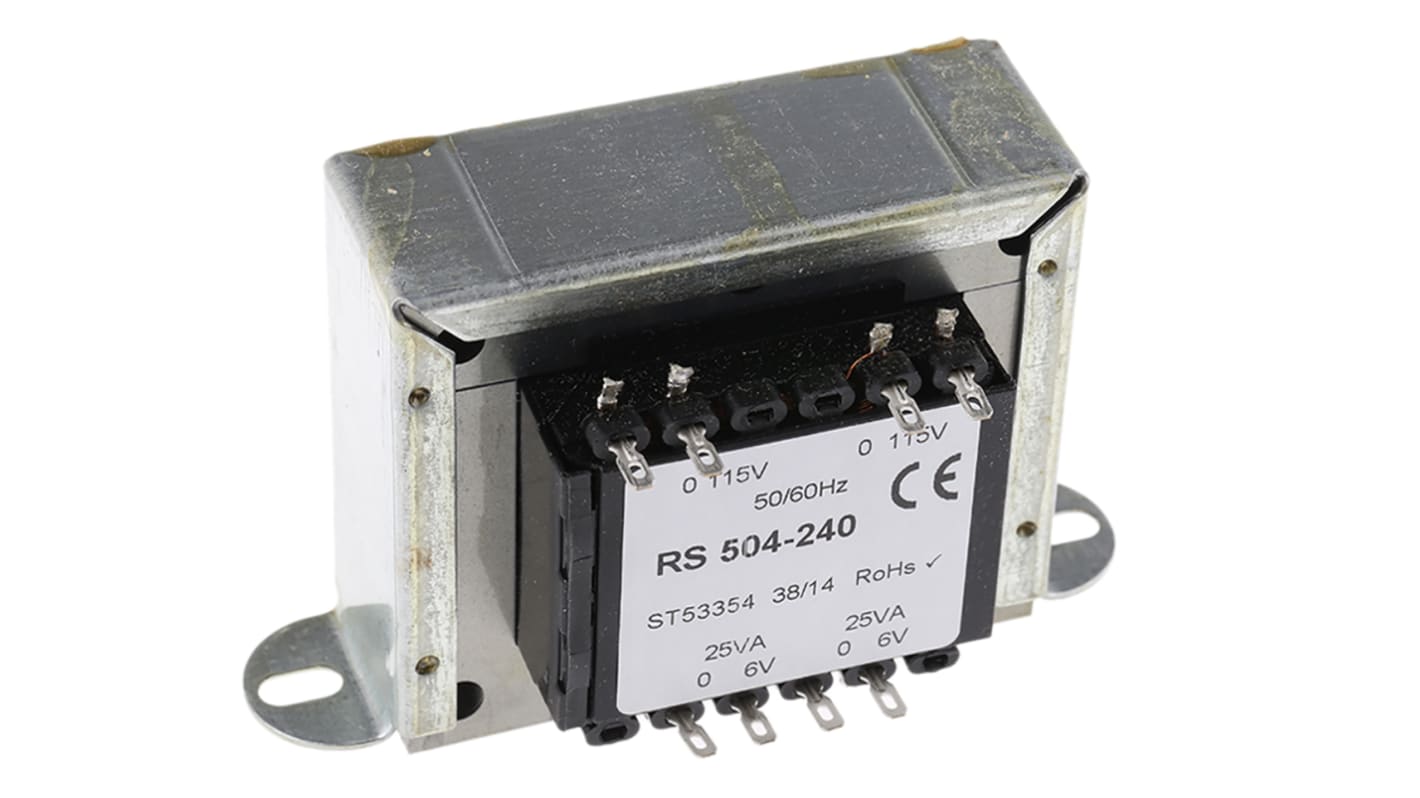

Chassis Mount Clamp & Frame Construction 115/230Vac Primary Transformer
Features and Benefits
"Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps 6VA to 50VA
Multi-hole frame fixing 100VA
Solder tag terminations
Optional terminal shrouds
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742"
Open Laminated Clamp & Frame 115-230Vac Primary 6VA to 100VA
Chassis mounting mains transformers with twin 115Va.c. 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Note
Suitable transformer shrouds: 6VA = 503-912 ; 12 & 20VA = 504-004 ; 50, 75 & 100VA = 503-928
Standards
BS3535; EN 60 742
