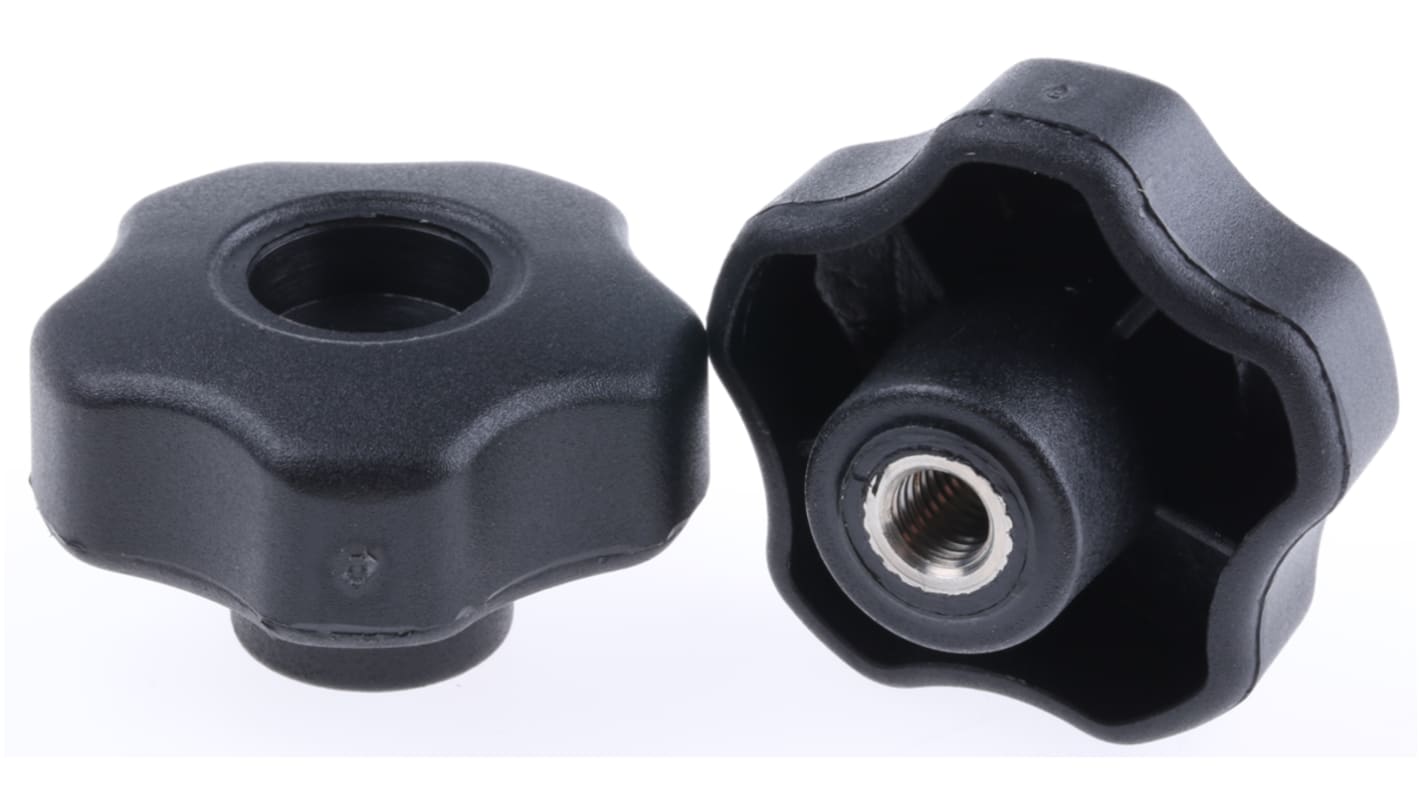

RS PRO Black Multiple Lobes Clamping Knob, M8, Threaded Hole

RS庫存編號:: 702-7664
製造商:: RS PRO

RS PRO Black Multiple Lobes Clamping Knob, M8, Threaded Hole

可享批量折扣

Price 个（每托盘 10 ）**

HK$41.93

90 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$850.00 即可享受免費送貨服務

單位	每單位	每包**
10 - 40	HK$41.93	HK$419.30
50 - 90	HK$40.25	HK$402.50
100 - 390	HK$38.58	HK$385.80
400 - 1990	HK$37.74	HK$377.40
2000 +	HK$31.06	HK$310.60

** 參考價格

RS庫存編號:: 702-7664
製造商:: RS PRO

登入下載 CAD 模型

Thermoplastic, Metric Threads

Knobs are used in a wide variety of applications in our day-to-day lives and perform many functions, from being used as fixed handles to being used to tighten, loosen, adjust, clamp and push other components or pieces of equipment. They are used in various applications, from industrial and construction machinery to audio and visual equipment.

These multiple lobed handwheels from RS PRO are an ergonomic shape to ensure user comfort, with a varying number of lobes depending on the grip and pressure required. The knob handles are made from impact-resistant thermoplastic bodies and male knobs are fitted with a protruding screw insert (male) of either stainless steel or zinc-plated steel. Female knobs and threaded though knobs have threaded inserts of zinc-plated or stainless steel. Zinc-plated steel and stainless steel both provide wear resistance for the threads to ensure that the threads last throughout general use and are not easily damaged or sheared.

Resistant to most chemicals, UV light and water absorption (1.5% max.)
Temperature range -20°C to +110°C (short term withstand +170°C)
Zinc plated steel, Brass or Stainless steel inserts

Features & Benefits

Thermoplastic handles

Zinc plated steel or stainless steel studs

Matte black finish

Working temperature range of -20°C to +110°C

Can short term withstand +170°C

Resistant to most chemicals, UV light and water absorption (1.5% max)

Applications

These multi-lobed knobs are used in a variety of applications, with the shape providing an ergonomic grip for user comfort and added torque to be applied by hand. The stainless steel screw threads will better endure outdoor environments or hygiene-focussed environments, such as medical and food preparation industries. The zinc screws are as strong, but it is not recommended to use them outdoors/near moisture as they are more susceptible to rust and this will effect the performance of the screw.

Common applications include:

Access doors

Drawers & panels (domestic and industrial)

Clamps and fixtures

Industrial machinery

Food preparation machinery

Medical furniture

Attribute	Value
Thread	M8
Thread Diameter	8mm
Thread Length	12mm
Knob Shape	Multiple Lobes
Mounting Type	Threaded Hole
Knob Diameter	50mm
Insert Material	Stainless Steel
Colour	Black
