Schaffner 1.6 mH 1.5 A Common Mode Choke 94 mΩ 300V ac
- RS庫存編號:
- 133-6097
- Distrelec 貨號:
- 304-30-786
- 製造零件編號:
- RN102-1.5-02-1M6
- 製造商:
- Schaffner

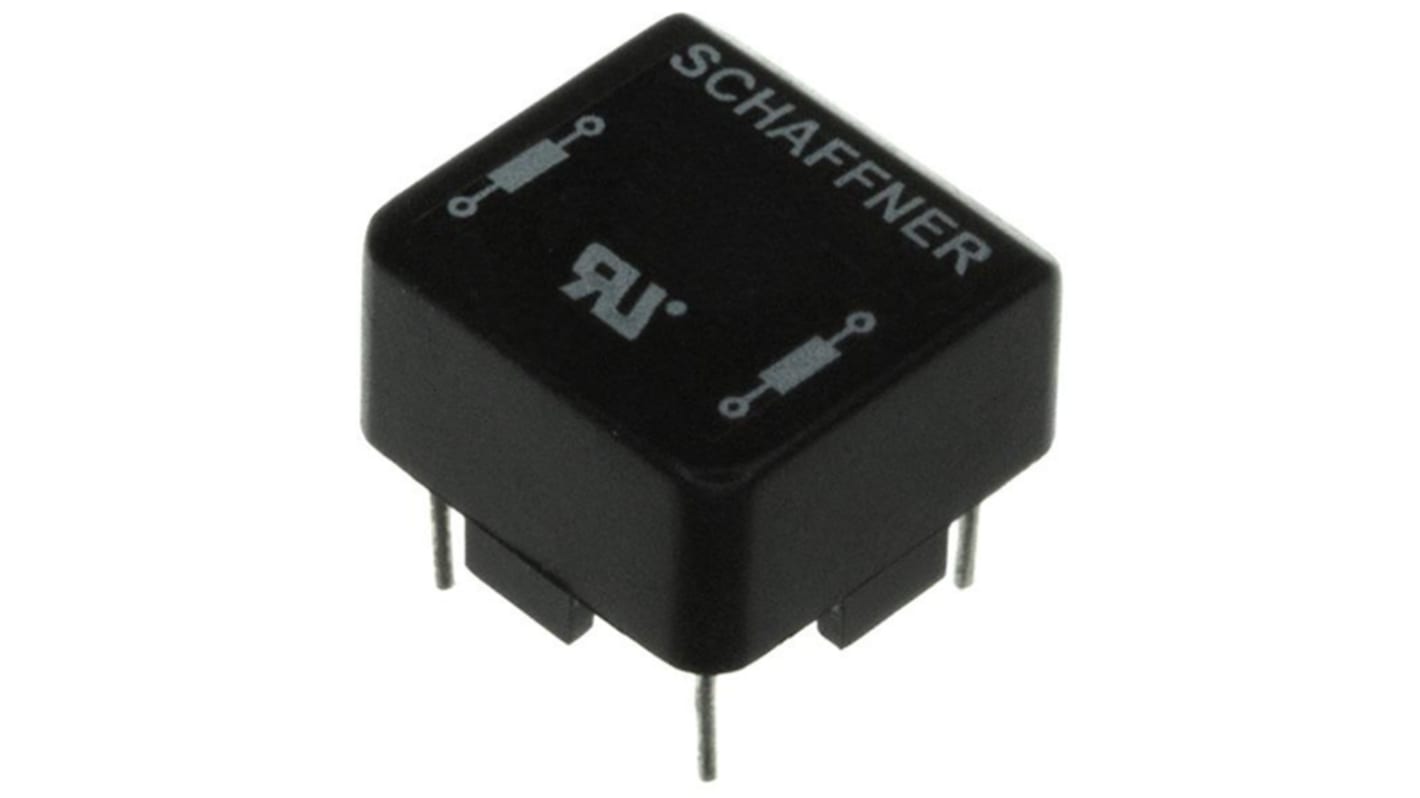

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 袋，共 5 件）*
HK$75.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 505 件從 2026年5月11日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每袋* |
|---|---|---|
| 5 - 145 | HK$15.10 | HK$75.50 |
| 150 - 295 | HK$14.76 | HK$73.80 |
| 300 + | HK$14.44 | HK$72.20 |
* 參考價格
- RS庫存編號:
- 133-6097
- Distrelec 貨號:
- 304-30-786
- 製造零件編號:
- RN102-1.5-02-1M6
- 製造商:
- Schaffner
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schaffner | |
| Inductance | 1.6mH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 1.5A | |
| Series | RN | |
| Test Frequency | 10kHz | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 300V ac | |
| Maximum Self Resonant Frequency | 3MHz | |
| Inductance Tolerance | -30 to 50 % | |
| Length | 14mm | |
| Height | 9mm | |
| Depth | 14mm | |
| Standards/Approvals | UL94V-0, IEC/EN 60938-1, UL 1283 | |
| Maximum DC Resistance | 94mΩ | |
| Termination Style | Solder Pad | |
| 選取全部 | ||
|---|---|---|
品牌 Schaffner | ||
Inductance 1.6mH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 1.5A | ||
Series RN | ||
Test Frequency 10kHz | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 300V ac | ||
Maximum Self Resonant Frequency 3MHz | ||
Inductance Tolerance -30 to 50 % | ||
Length 14mm | ||
Height 9mm | ||
Depth 14mm | ||
Standards/Approvals UL94V-0, IEC/EN 60938-1, UL 1283 | ||
Maximum DC Resistance 94mΩ | ||
Termination Style Solder Pad | ||
Schaffner RN Series Common Mode Chokes
Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.
Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small Compact design
High saturation resistance and excellent thermal behaviour
Schaffner Leaded Inductors (Chokes)
Approvals
UL recognised
