Bourns 22 μH 0.31 A Common Mode Choke 0.6Ω
- RS庫存編號:
- 210-7544
- 製造零件編號:
- SRF4530A-220Y
- 製造商:
- Bourns
查看所有Common Mode Chokes
2000 現貨庫存，可於3工作日發貨。
單價 個 (在毎卷：500)
HK$5.334
| 單位 | Per unit | Per Reel* |
| 500 - 500 | HK$5.334 | HK$2,667.00 |
| 1000 - 1500 | HK$5.201 | HK$2,600.50 |
| 2000 + | HK$5.121 | HK$2,560.50 |
| * 參考價格 | ||
- RS庫存編號:
- 210-7544
- 製造零件編號:
- SRF4530A-220Y
- 製造商:
- Bourns
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- MY
產品詳細資訊

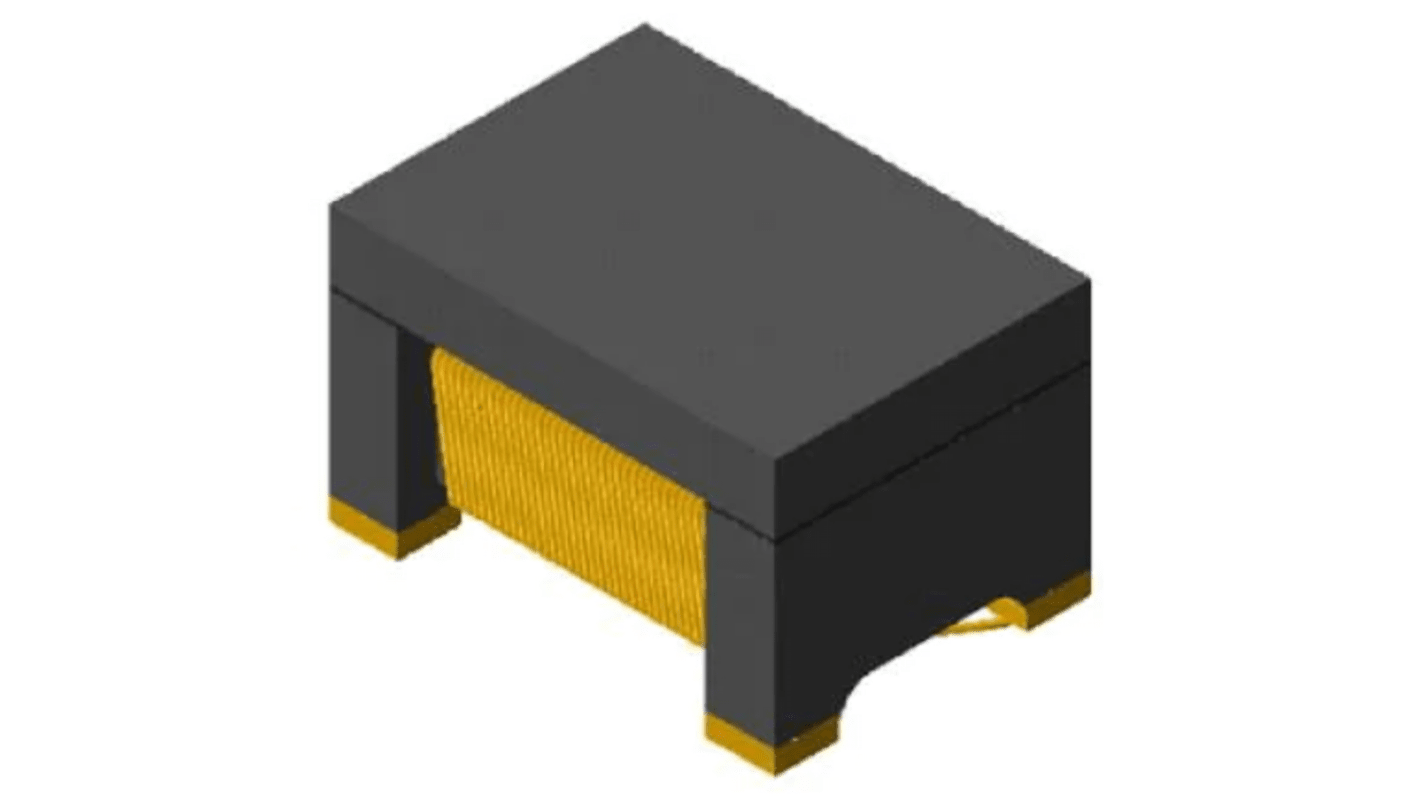

The Bourns SRF4530A series common mode chip inductor has 22μH inductance at 100 kHz. This inductor has ferrite core and enamelled copper wire with Au terminal finish. I has rated voltage of 50VDC and insulation resistance of 10MΩ.
Shielded construction – low radiation
Bifilar wound
High temperature
Halogen free
Bifilar wound
High temperature
Halogen free
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Inductance | 22 μH |
| Series | SRF4530A |
| Impedance | 1.2 kΩ |
| Test Frequency | 100 kHz |
| DC Resistance | 0.6Ω |
| Maximum Current | 0.31 A |
| Dimensions | 4.5 x 3.2mm |
| Operating Temperature Range | -55°C → +150°C |
| Automotive Standard | AEC-Q200 |
| Mounting Type | Surface Mount |
| Termination Style | Surface Mount |
| Minimum Operating Temperature | -55°C |
| Length | 4.5mm |
| Maximum Operating Temperature | +150°C |
| Height | 3.2mm |
