Panasonic PAN1780 Wirepas Mesh Demo Kit PAN1780 Bluetooth Development Kit for Wirepas Mesh connectivity stack 2.4 GHz

查看此類別

小計（1 件）*

HK$1,214.60

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 2 個，準備發貨
單位
每單位
1 +HK$1,214.60

* 參考價格

RS庫存編號:
272-8686
製造零件編號:
ENW89854ATKF
製造商:
Panasonic
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Panasonic

RF Technology

Bluetooth

Product Type

Evaluation Kit

Kit Classification

Development Kit

Technology

Bluetooth

For Use With

Wirepas Mesh connectivity stack

Featured Device

PAN1780

Kit Name

PAN1780 Wirepas Mesh Demo Kit

Maximum Frequency

2.4GHz

Interface Type

USB Type C, SWD

Standards/Approvals

No

COO (Country of Origin):
DE

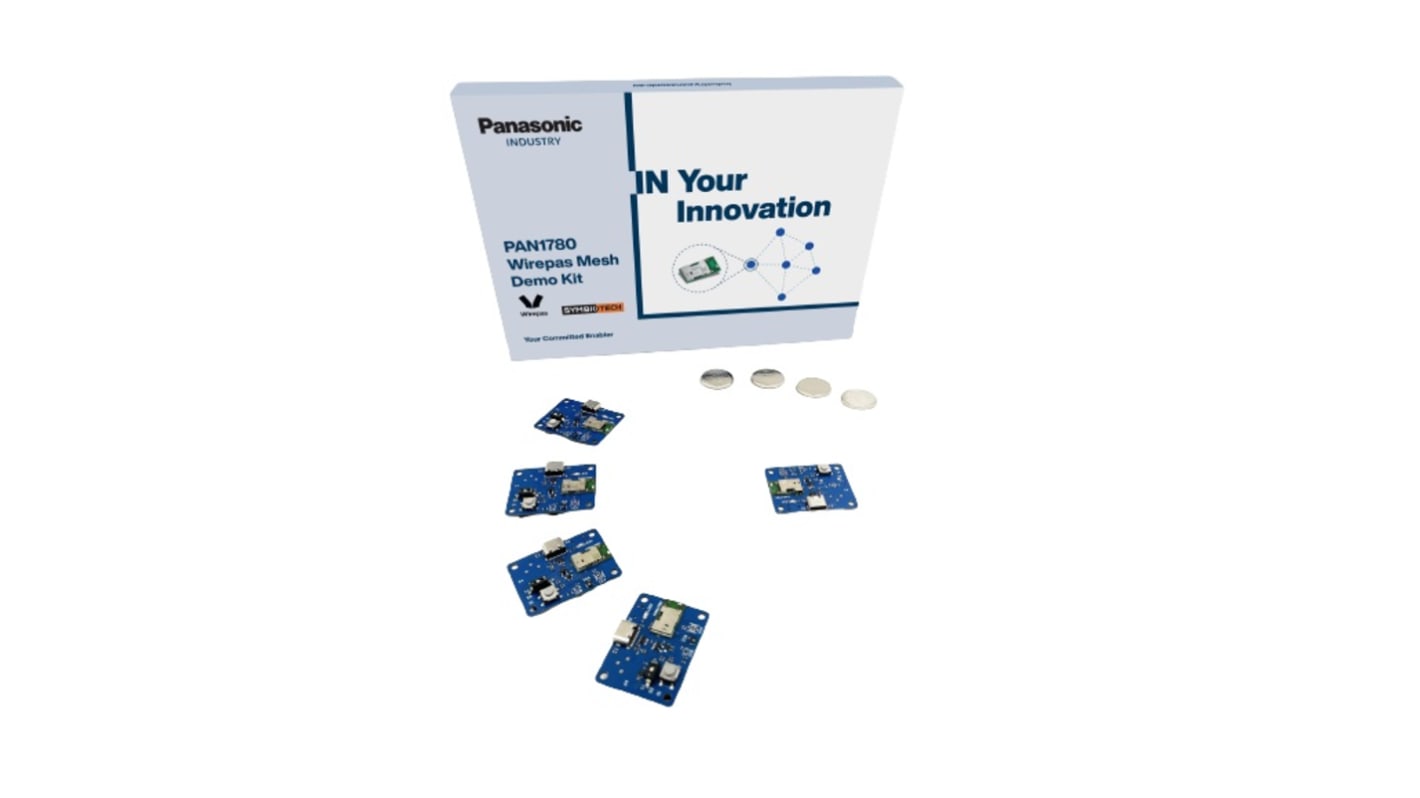

The Panasonic PAN1780 Wirepas Mesh Demo Kit is a ready to use Evaluation Tool based on the PAN1780 in combination with the Wirepas Mesh connectivity stack. The kit consists of four battery powered sensor nodes and one sink which acts as a border router. The Demo Kit is intended for engineers, product designers or any IoT enthusiast, seeking high performance ready to use wirepas sensor nodes to set up a wirepas mesh network at any time and at any place in just a few steps. The launch of the PAN1780 Wirepas mesh demo kit springs from Panasonic collaboration with IoT software consulting firm, Symbiotic. Panasonic industry provides a sensor node with a long wireless transmission range achieved by the optimized chip antenna of the PAN1780.

USB C connector for power supply

Temperature sensing via HTS221 sensor

Switchable operation modes via SPDT switch

Coin cell holder for battery powered operation

User LED controllable from the web user interface
