Infineon EZ-PD Barrel Connector Replacement Lite Evaluation Kit CYPD3178-24LQXQ Evaluation Kit for Barrel Connector 48
- RS庫存編號:
- 273-2015
- 製造零件編號:
- CY4535
- 製造商:
- Infineon
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 273-2015
- 製造零件編號:
- CY4535
- 製造商:
- Infineon
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Infineon | |
| Kit Classification | Evaluation Kit | |
| Product Type | Evaluation Kit | |
| Technology | USB | |
| For Use With | Barrel Connector | |
| Featured Device | CYPD3178-24LQXQ | |
| Kit Name | EZ-PD Barrel Connector Replacement Lite Evaluation Kit | |
| Maximum Frequency | 48MHz | |
| Interface Type | USB Type C | |
| Standards/Approvals | USB Type-C rev 1.2, sink side over current protection and monitoring, legacy charging support (BC 1.2, QC 2.0, AFC and Apple charging), high-voltage analog for protection | |
| 選取全部 | ||
|---|---|---|
品牌 Infineon | ||
Kit Classification Evaluation Kit | ||
Product Type Evaluation Kit | ||
Technology USB | ||
For Use With Barrel Connector | ||
Featured Device CYPD3178-24LQXQ | ||
Kit Name EZ-PD Barrel Connector Replacement Lite Evaluation Kit | ||
Maximum Frequency 48MHz | ||
Interface Type USB Type C | ||
Standards/Approvals USB Type-C rev 1.2, sink side over current protection and monitoring, legacy charging support (BC 1.2, QC 2.0, AFC and Apple charging), high-voltage analog for protection | ||

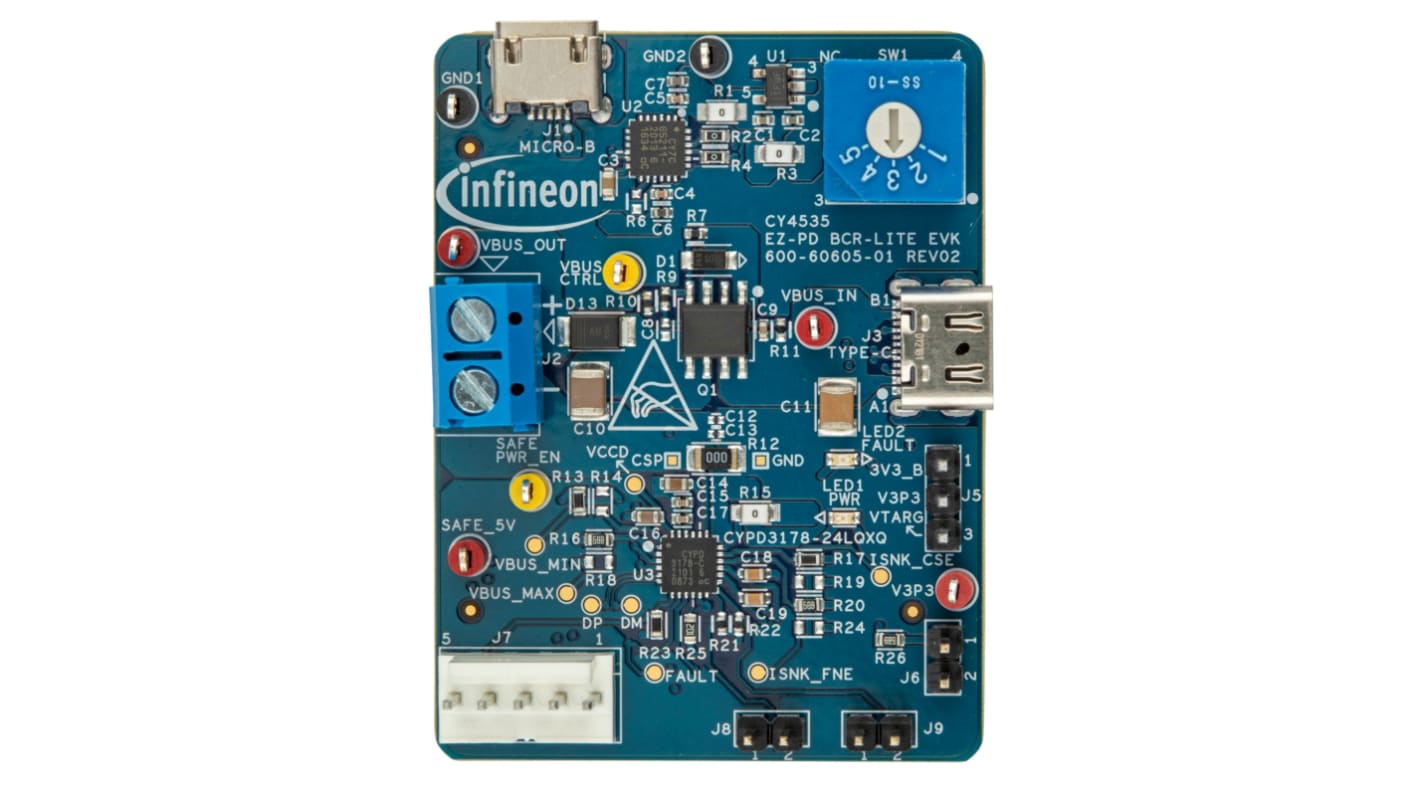

The Infineon evaluation kit is an evaluation platform for customers who want to replace an existing barrel or power input connector with a USB-C connector. Implementing this solution in an end product allows the system to be powered by any USB-C compliant power adapter.
Replacement of barrel connectors
On chip overvoltage protection
