Microchip LIN Serial Analyzer LIN Serial Analyzer Development Kit for PC, LIN (Local Interface Network) bus APGDT001
- RS庫存編號:
- 681-0960
- Distrelec 貨號:
- 173-34-510
- 製造零件編號:
- APGDT001
- 製造商:
- Microchip
小計（1 件）*
HK$546.90
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 16 件從 2026年6月03日 起發貨
- 加上 6 件從 2026年6月10日 起發貨
- 加上 12 件從 2026年7月28日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$546.90 |
* 參考價格
- RS庫存編號:
- 681-0960
- Distrelec 貨號:
- 173-34-510
- 製造零件編號:
- APGDT001
- 製造商:
- Microchip
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Microchip | |
| Kit Classification | Development Kit | |
| Product Type | Communication & Wireless Development Tool | |
| Technology | Microchip Technology | |
| For Use With | PC, LIN (Local Interface Network) bus | |
| Featured Device | LIN Serial Analyzer | |
| Kit Name | LIN Serial Analyzer | |
| Interface Type | USB | |
| Standards/Approvals | ISO/TS-16949:2002, ISO 9001:2000 | |
| 選取全部 | ||
|---|---|---|
品牌 Microchip | ||
Kit Classification Development Kit | ||
Product Type Communication & Wireless Development Tool | ||
Technology Microchip Technology | ||
For Use With PC, LIN (Local Interface Network) bus | ||
Featured Device LIN Serial Analyzer | ||
Kit Name LIN Serial Analyzer | ||
Interface Type USB | ||
Standards/Approvals ISO/TS-16949:2002, ISO 9001:2000 | ||
- COO (Country of Origin):
- CN

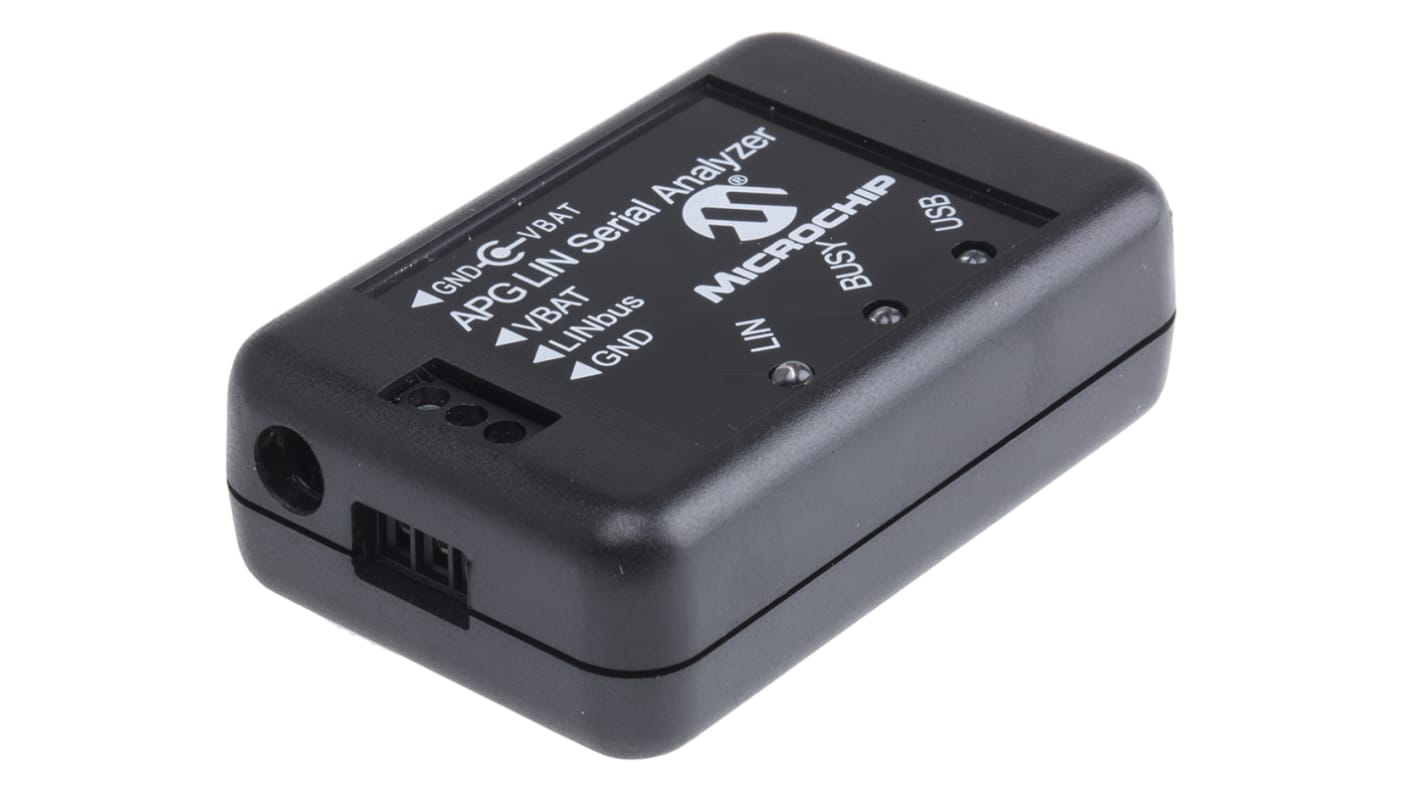

Microchip APGDT001 LIN Serial Analyzer
The Microchip APGDT001 LIN Serial Analyzer is a development tool which connects to your PC and enables it to communicate with a LIN bus. This tool contains various components which work together to provide debugging and analysis functionality.
You can use the LIN Serial Analyzer to send messages, monitor the bus traffic, perform error checks and filter messages.
What’s included?
1 x LIN Serial Analyzer
1 x mini-B USB cable
1 x CD
What is LIN?
LIN, short for Local Interconnect Network, is an affordable serial network, used primarily for communication between devices within cars and other vehicles.
How does it connect?
The LIN Serial Analyzer connects to a PC via the USB cable provided. You will require a PC with a Microsoft Windows operating system and a USB port. The LIN Serial Analyzer sits between your PC and the board that you are testing.
What are the status LEDs for?
There are 3 status LEDs on top of the Microchip LIN Serial Analyzer. A green USB light indicates that power is being supplied from the USB cable. A yellow light marked “Busy” is confirmation that the device is communicating with the LIN network. Finally, there is a blue LED marked “LIN” which confirms that the device is connected to the target bus.
LIN Communication - Microchip
