The USB-COM-PLUS modules provide a simple method of adapting legacy serial devices with RS-232, RS-422 or RS-485 interfaces to modern USB ports.
USB-COM232-Plus
The USB-COM232-PLUS1 module is a single channel USB to RS-232 communication device. Utilises the FTDI FT232R The USB-COM232-PLUS2 module is a single USB interface to two independent RS-232 ports, communication device. Utilises the FTDI FT2232H (USB 2.0 Hi-Speed device) The USB-COM232-PLUS4 module is a single USB interface to four independent RS-232 ports, communication device. Utilises the FTDI FT4232H (USB 2.0 Hi-Speed device) RS-232 level shifters are included, plus Power/TXD/RXD LEDs
USB-COM422-Plus

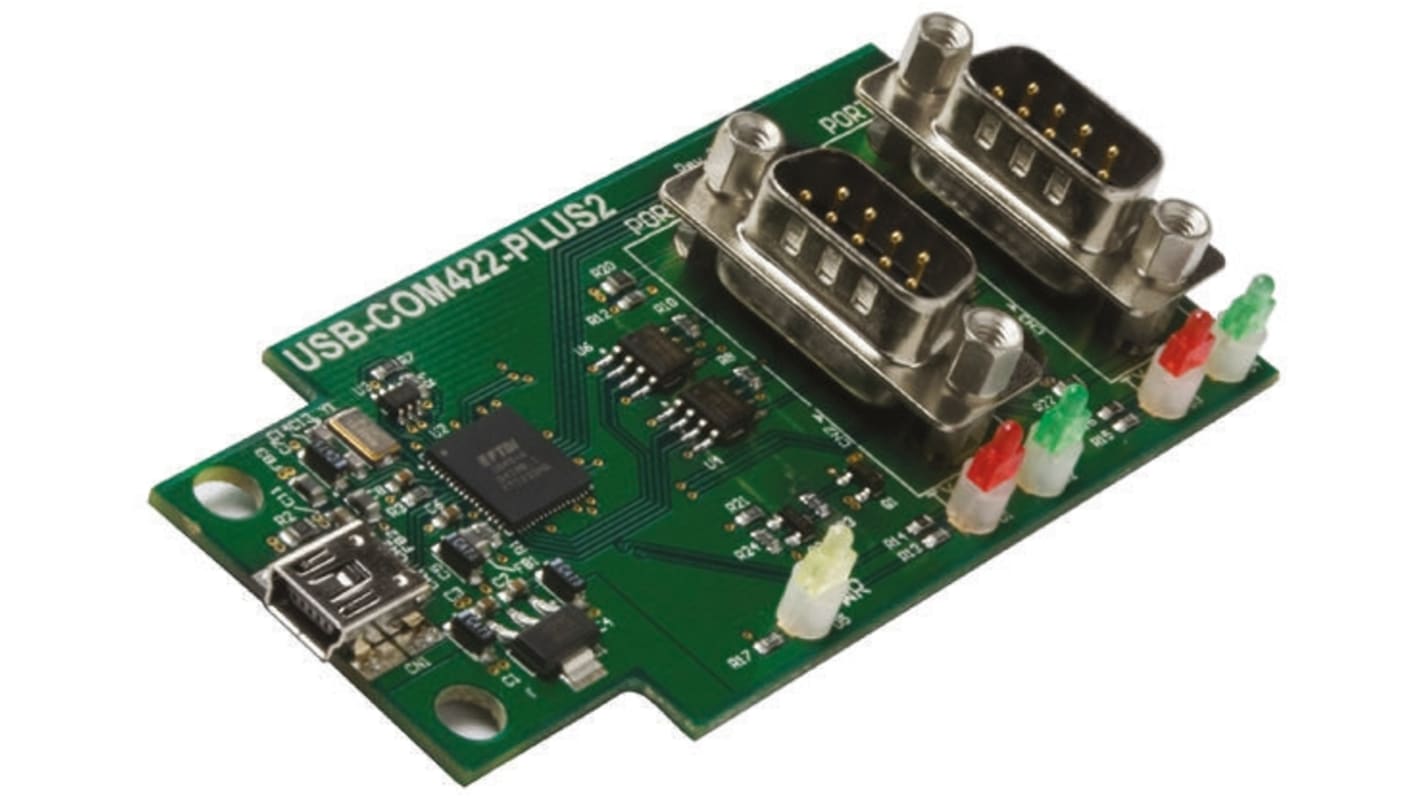

The USB-COM422-PLUS1 module is a single channel USB to RS-422 communication device. Utilises the FTDI FT232R The USB-COM422-PLUS2 module is a single USB interface to two independent RS-422 ports, communication device. Utilises the FTDI FT2232H (USB 2.0 Hi-Speed device) The USB-COM422-PLUS4 module is a single USB interface to four independent RS-422 ports, communication device. Utilises the FTDI FT4232H (USB 2.0 Hi-Speed device) RS-422 level shifters are included, plus Power/TXD/RXD LEDs
USB-COM485-Plus
The USB-COM485-PLUS1 module is a single channel USB to RS-485 communication device. Utilises the FTDI FT232R The USB-COM485-PLUS2 module is a single USB interface to two independent RS-485 ports, communication device. Utilise the FTDI FT2232H (USB 2.0 Hi-Speed device) The USB-COM485-PLUS4 module is a single USB interface to four independent RS-485 ports, communication device. Utilises the FTDI FT4232H (USB 2.0 Hi-Speed device) RS-485 level shifters are included, plus Power/TXD/RXD LEDs
