製造零件編號

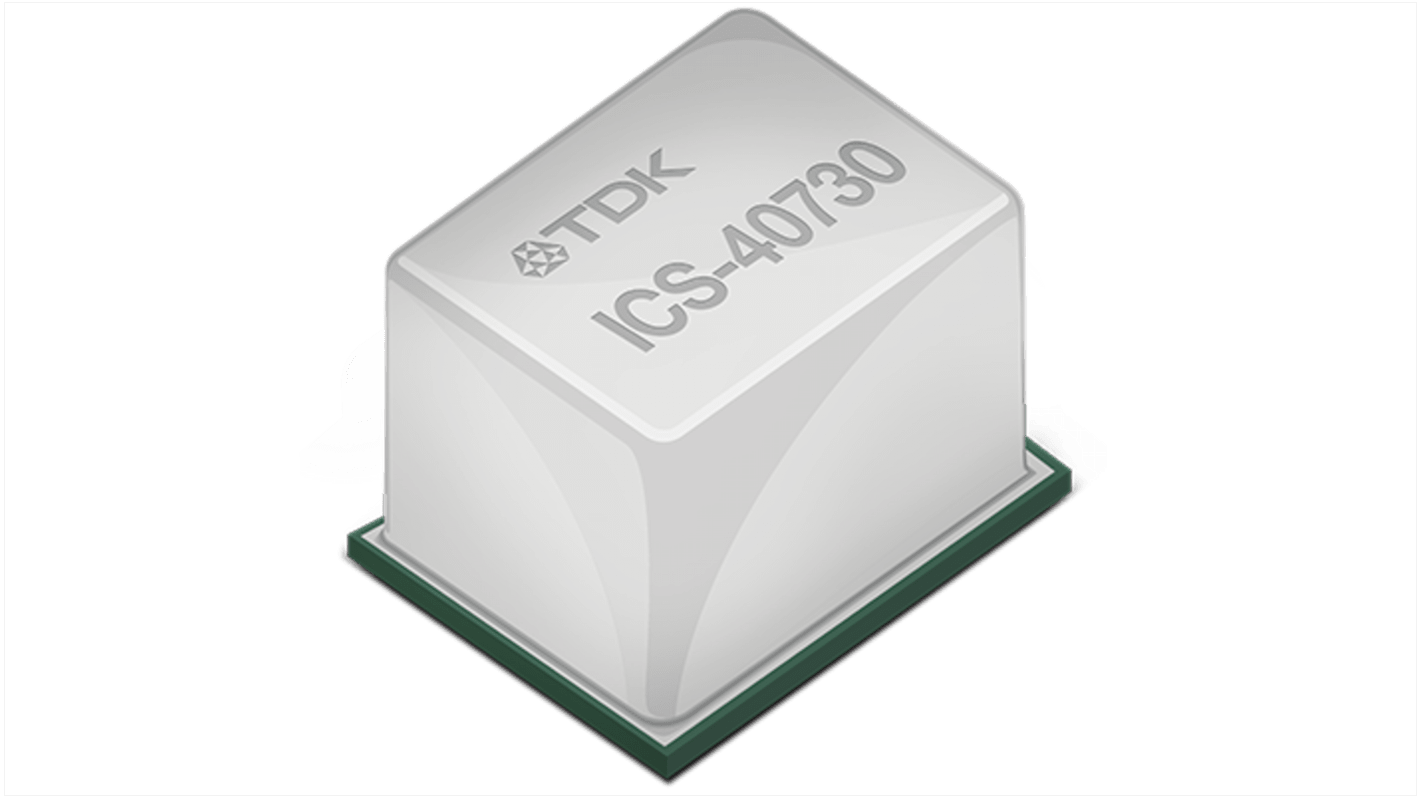

InvenSense Omni-Directional, Surface 4.72 mm Microphone Condenser -32dB

RS庫存編號:: 218-2230
製造零件編號:: ICS-40730
製造商:: InvenSense

InvenSense Omni-Directional, Surface 4.72 mm Microphone Condenser -32dB

此圖片僅供參考，請參閲產品詳細資訊及規格

暫時無法供應

我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。

RS庫存編號:: 218-2230
製造零件編號:: ICS-40730
製造商:: InvenSense

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	InvenSense
	Product Type	Microphone Condenser
	Sensitivity	-32dB
	Directivity	Omni-Directional
	Standard Operating Voltage	3.63V dc
	Mount Type	Surface
	Output Impedance	0.75kΩ
	Signal to Noise Ratio	74dB
	Diameter	4.72mm
	Minimum Operating Temperature	-40°C
	Maximum Frequency	20kHz
	Maximum Operating Temperature	85°C
	Height	3.5mm
	Termination Style	Surface Mount
	Minimum Frequency	25Hz
	Series	ICS-40730
	Standards/Approvals	RoHS/WEEE

	選取全部
	品牌 InvenSense
	Product Type Microphone Condenser
	Sensitivity -32dB
	Directivity Omni-Directional
	Standard Operating Voltage 3.63V dc
	Mount Type Surface
	Output Impedance 0.75kΩ
	Signal to Noise Ratio 74dB
	Diameter 4.72mm
	Minimum Operating Temperature -40°C
	Maximum Frequency 20kHz
	Maximum Operating Temperature 85°C
	Height 3.5mm
	Termination Style Surface Mount
	Minimum Frequency 25Hz
	Series ICS-40730
	Standards/Approvals RoHS/WEEE

Datasheet - ICS-40730

COO (Country of Origin):: TW

The InvenSense ICS series is an ultra‐low noise, differential analog output, bottom‐ported MEMS microphone.. It includes a MEMS microphone element, an impedance converter, a differential output amplifier and an enhanced RF package. It is used in smartphones, security and surveillance, voice control and activation, microphone arrays and etc.

Enhanced RF performance

Extended frequency response from 25 Hz to 20 kHz

Compatible with Sn/Pb and Pb-free solder processes

RoHS/WEEE compliant
