STMicroelectronics, Surface Mount Microphone Condenser
- RS庫存編號:
- 233-3020
- 製造零件編號:
- PM8805TR
- 製造商:
- STMicroelectronics
可享批量折扣
單價 个（每带 2500 ）**
HK$57.564
2498 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 | 每卷** |
|---|---|---|
| 2500 - 2500 | HK$57.564 | HK$143,910.00 |
| 5000 - 5000 | HK$56.413 | HK$141,032.50 |
| 7500 + | HK$55.284 | HK$138,210.00 |
** 參考價格
- RS庫存編號:
- 233-3020
- 製造零件編號:
- PM8805TR
- 製造商:
- STMicroelectronics

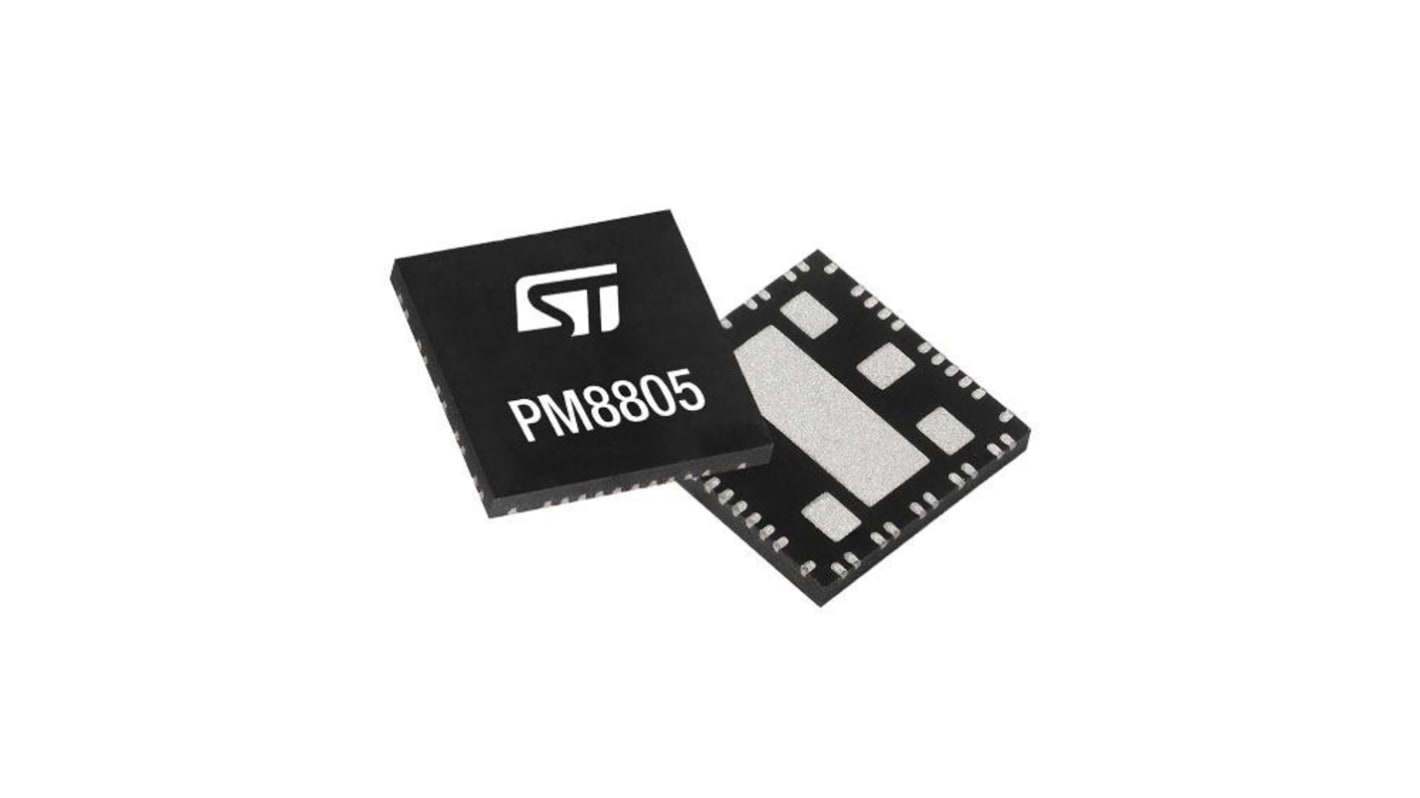

IEEE 802.3bt PoE-PD interface with embedded dual active bridge
The PM8805 is a system in package for Power over Ethernet (PoE) and powered devices (PD) applications. It embeds: two active bridges and their driving circuitry, a charge pump to drive high-side MOSFETs, the hot-swap MOSFET and the standard single-signature interface IEEE 802.3bt-compliant, including detection, classification, UVLO and inrush current limitation. The active bridges sustain up to 1 A current and the hot-swap MOSFET is designed to safely work up to 2 A. The device performs IEEE 802.3bt physical layer classification scheme, providing the system with an indication of successful PSE-type. The device identifies a 4-pair PSE, monitoring the pairs of the Ethernet cable and providing the system with a dedicated matrix of Tx signals. The device works with power either from the Ethernet cable or from an external power source such as a wall adapter, with the likelihood of the auxiliary source being prevalent over PoE. The device is suitable to build the interface section of PoE switch mode power supplies targeting the highest conversion efficiency. It provides a PGD signal that can be used to enable a PWM controller, a DC-DC converter or a LED driver.
Key features
•System in package:
Dual-active-bridge with 100 V MOSFETs and 0.2 Ω total path resistance
100 V, 0.1 Ω hot-swap MOSFETs
PoE-PD single-signature interface, IEEE 802.3af/at/bt (draft 2.3)-compliant
•Detection and support of high power, 4-pair applications
•Support 12 V auxiliary sources
•Identifies which kind of PSE (standard or legacy) is connected and provides successful IEEE802.3 af/at/bt classification indications as combination of T0, T1 and T2 signals (open-drain)
•Smart operational mode selection by command signals: STBY, RAUX and FAUX
Dual-active-bridge with 100 V MOSFETs and 0.2 Ω total path resistance
100 V, 0.1 Ω hot-swap MOSFETs
PoE-PD single-signature interface, IEEE 802.3af/at/bt (draft 2.3)-compliant
•Detection and support of high power, 4-pair applications
•Support 12 V auxiliary sources
•Identifies which kind of PSE (standard or legacy) is connected and provides successful IEEE802.3 af/at/bt classification indications as combination of T0, T1 and T2 signals (open-drain)
•Smart operational mode selection by command signals: STBY, RAUX and FAUX
•Programmable classification current with 3.3 ms delay
•Autoclass feature (optional)
•Advanced energy-saving MPS timings
•Hot-swap current protection in two steps: DC with 1 ms delay and short-circuit with 10 μs delay
•Start-up phase (pre-charge of the output capacitor) due to an internally limited current source
•PGD signal (open-drain) to enable an external PWM controller
•Thermal shutdown protection
•VFQFPN package with 6 exposed pads
•Autoclass feature (optional)
•Advanced energy-saving MPS timings
•Hot-swap current protection in two steps: DC with 1 ms delay and short-circuit with 10 μs delay
•Start-up phase (pre-charge of the output capacitor) due to an internally limited current source
•PGD signal (open-drain) to enable an external PWM controller
•Thermal shutdown protection
•VFQFPN package with 6 exposed pads
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Attribute | Value |
|---|---|
| Standard Operating Voltage | 100V |
| Mounting Type | Surface Mount |
