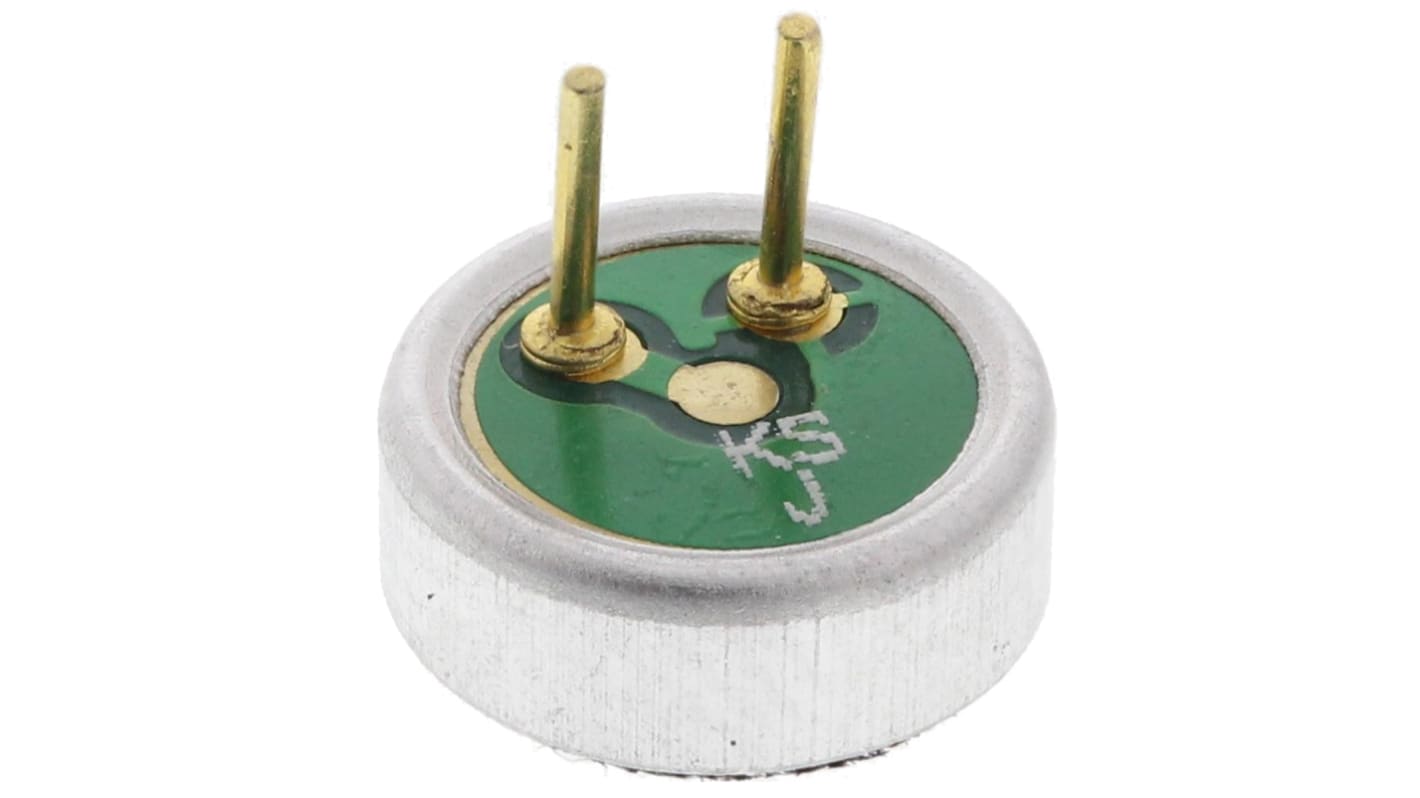

RS PRO Omni-Directional, Through Hole 6 mm Microphone Condenser -40dB

Name: RS PRO Omni-Directional, Through Hole 6 mm Microphone Condenser -40dB
Brand: RS PRO
SKU: 771-7014
Availability: InStock

此圖片僅供參考，請參閲產品詳細資訊及規格

可享批量折扣

查看批量定價選項

小計（1 袋，共 5 件）*

HK$74.60

有庫存

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

* 參考價格

Sponsored

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	RS PRO
	Sensitivity	-40dB
	Product Type	Microphone Condenser
	Directivity	Omni-Directional
	Standard Operating Voltage	2V dc
	Mount Type	Through Hole
	Output Impedance	2.2kΩ
	Signal to Noise Ratio	58dB
	Diameter	6mm
	Maximum Frequency	20kHz
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	70°C
	Termination Style	Solder
	Minimum Frequency	20Hz
	Height	2.2mm
	Standards/Approvals	No
	Supply Current	500μA

	選取全部
	品牌 RS PRO
	Sensitivity -40dB
	Product Type Microphone Condenser
	Directivity Omni-Directional
	Standard Operating Voltage 2V dc
	Mount Type Through Hole
	Output Impedance 2.2kΩ
	Signal to Noise Ratio 58dB
	Diameter 6mm
	Maximum Frequency 20kHz
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 70°C
	Termination Style Solder
	Minimum Frequency 20Hz
	Height 2.2mm
	Standards/Approvals No
	Supply Current 500μA

Range of SMT and PCB mounting miniature electret condenser microphone inserts
