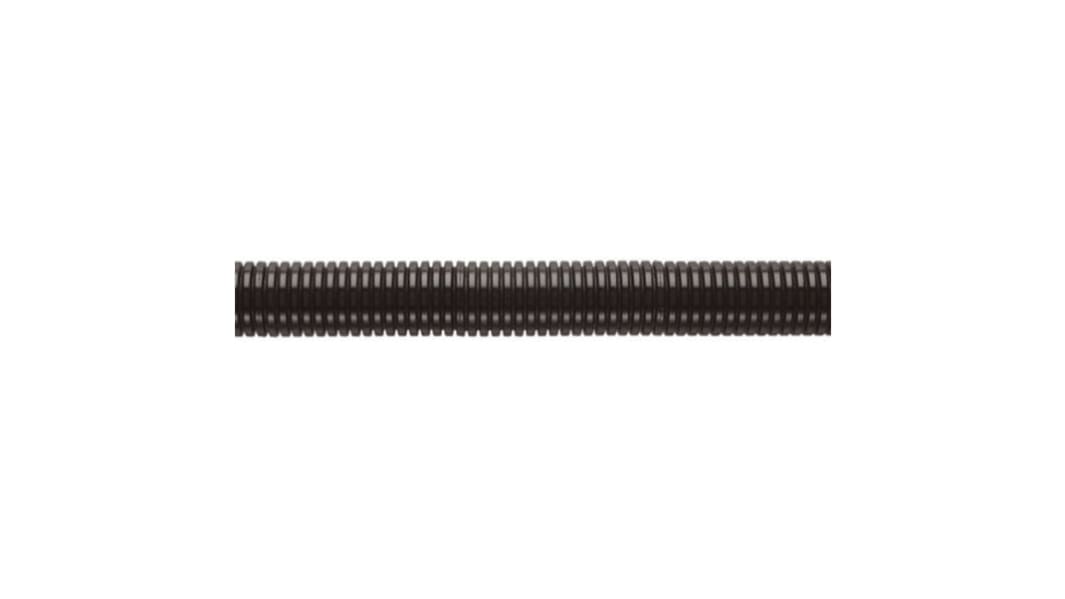

Flexicon Flexible Conduit, 67mm Nominal Diameter, Plastic, Black
- RS庫存編號:
- 880-8199
- 製造零件編號:
- FPAS67B-10M
- 製造商:
- Flexicon
查看所有Conduit
8 現貨庫存，可於3工作日發貨。
單價 毎卷：10 米
HK$2,732.23
| Reel(s) | Per Reel | Per Metre* |
| 1 - 14 | HK$2,732.23 | HK$273.223 |
| 15 + | HK$2,540.97 | HK$254.097 |
| * 參考價格 | ||
- RS庫存編號:
- 880-8199
- 製造零件編號:
- FPAS67B-10M
- 製造商:
- Flexicon
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
FPAS Standard Weight Non-Metallic Conduit
Non-metallic conduit systems are typically lighter, easier to work with and more cost effective to install. With advances in material technology, non-metallic systems can provide an alternative solution where typically only metal systems had been considered previously.
FPAS non-metallic conduit. Standard weight flame retardant nylon (PA6) corrugated flexible.
Typical applications: all types of machinery and public buildings.
FPAS non-metallic conduit. Standard weight flame retardant nylon (PA6) corrugated flexible.
Typical applications: all types of machinery and public buildings.
Highly flexible
High impact strength and recovers if crushed
Temperature range: -40°C to +120°C (-20°C to +100°C if moving)
Lloyds Register type approval
UL listed / UL recognised
Low fire hazard (LFH)
UL 94 V2 flame retardancy
Halogen, sulphur and phosphorus free
UV resistant (black)
Abrasion resistant
Highly resistant to solvents and oils
High impact strength and recovers if crushed
Temperature range: -40°C to +120°C (-20°C to +100°C if moving)
Lloyds Register type approval
UL listed / UL recognised
Low fire hazard (LFH)
UL 94 V2 flame retardancy
Halogen, sulphur and phosphorus free
UV resistant (black)
Abrasion resistant
Highly resistant to solvents and oils
Approvals
CE
Lloyds Register
UL listed / UL recognised
Underground
Achilles
Link-Up Registered
BS EN IEC 61386
RoHS
REACh
UKAS
Lloyds Register
UL listed / UL recognised
Underground
Achilles
Link-Up Registered
BS EN IEC 61386
RoHS
REACh
UKAS
Flexicon Flexible Conduit
規格
Attribute | Value |
|---|---|
| Nominal Diameter | 67mm |
| Material | Plastic |
| Conduit Type | Flexible |
| Outer Diameter | 67.2mm |
| Colour | Black |
| Interior Diameter | 56.3mm |
| Length | 10m |
| IP Rating | IP66, IP67, IP68, IP69K |
| Maximum Operating Temperature | +120°C |
| Series | FPAS |
| Minimum Operating Temperature | -40°C |
| Minimum Bend Radius | 130 mm |
| Standards Met | CE Compliant, REACH Compliant, RoHS Compliant, UL Listed |
