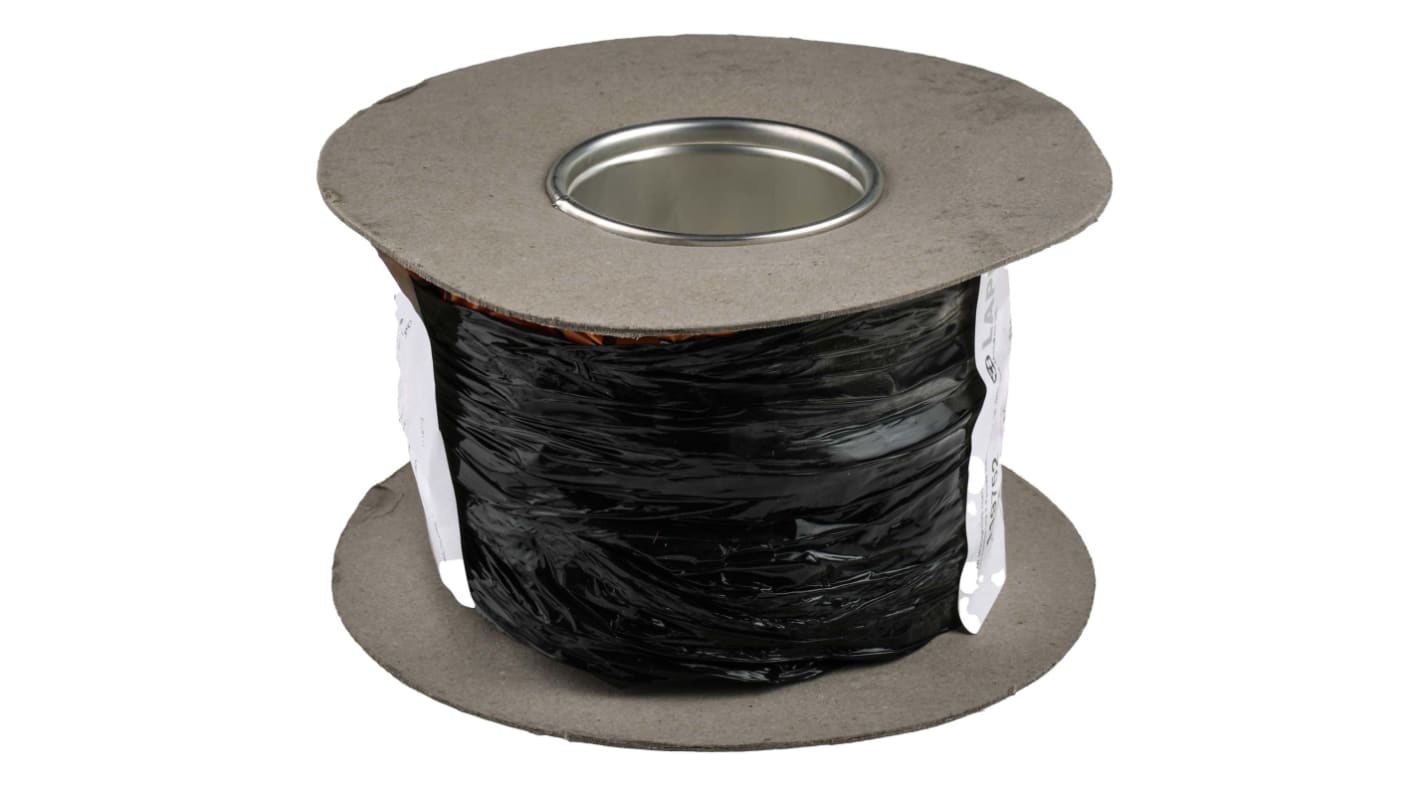

RS PRO Control Cable, 3 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

RS庫存編號:: 827-4252
製造商:: RS PRO

RS PRO Control Cable, 3 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

可享批量折扣

小計（1 卷，共 50 米）**

HK$357.30

89 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

卷	每卷	每米**
1 - 9	HK$357.30	HK$7.146
10 - 49	HK$339.50	HK$6.79
50 +	HK$279.40	HK$5.588

** 參考價格

RS庫存編號:: 827-4252
製造商:: RS PRO

LAPP Control Cable, 3 Number Of Cores, 0.5 mm² Cross Sectional Area

This control cable is a high-quality YY type designed for efficient power transmission. Featuring a length of 50m, it comprises three cores with a cross-sectional area of 0.5 mm². The cable is made with bare copper conductors, encased in a grey PVC sheath, reliable for various applications within the electrical and mechanical sectors.

Features & Benefits

• Suitable for space-saving installations due to compact diameter
• Unscreened design enhances flexibility in fixed installations
• Excellent chemical resistance allows usage in harsh conditions
• Capable of operating within a wide temperature range
• Features white numbers on the outer sheath for easy identification

Applications

• Used for control circuits in plant engineering
• Ideal for conveyor and transport system wiring
• Effective in heating and air-conditioning system
• Suitable for installations requiring flexible mains connections

What advantages does the unscreened design offer for specific installations?

The unscreened design facilitates ease of installation in fixed applications where flexibility is paramount, making it ideal for cramped or complex spaces. This feature allows for quick routing and installation without compromising the cable's integrity.

What are the implications of operating within the specified temperature range?

The cable operates efficiently within a range from -40°C to +80°C, making it suitable for both extreme cold and heat scenarios commonly found in industrial and mechanical environments, thus ensuring long-lasting performance.

How does the flame retardant feature enhance safety on site?

The flame retardant characteristics of the cable reduce the risk of fire spread, which is crucial in environments where high-risk machinery operates, contributing to safer installations and compliance with safety regulations.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	RS PRO
	Number of Cores	3
	Cross Sectional Area	0.5 mm²
	American Wire Gauge	20 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	YY
	Screen Type	Unscreened
	Screened/Unscreened	Unscreened
	Length	50m
	Minimum Bend Radius	Fixed - 4 x D, Occasional Flexing - 15 x D
	Outer Diameter	5.1mm
	Voltage Rating	300/500 V
	Current Rating	9 A
	Standards Met	IEC 60228
	CPR Certification	Eca
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+80°C
	Insulation Material	PVC
	Cable Shape	Multicore
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Filler Material	Non-Wicking Filler
	Core Strands	16/0.20 mm
	Earth Cable	Yes
	Conductor Resistance	39 Ω/km

	選取全部
	品牌 RS PRO
	Number of Cores 3
	Cross Sectional Area 0.5 mm²
	American Wire Gauge 20 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type YY
	Screen Type Unscreened
	Screened/Unscreened Unscreened
	Length 50m
	Minimum Bend Radius Fixed - 4 x D, Occasional Flexing - 15 x D
	Outer Diameter 5.1mm
	Voltage Rating 300/500 V
	Current Rating 9 A
	Standards Met IEC 60228
	CPR Certification Eca
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +80°C
	Insulation Material PVC
	Cable Shape Multicore
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Filler Material Non-Wicking Filler
	Core Strands 16/0.20 mm
	Earth Cable Yes
	Conductor Resistance 39 Ω/km
