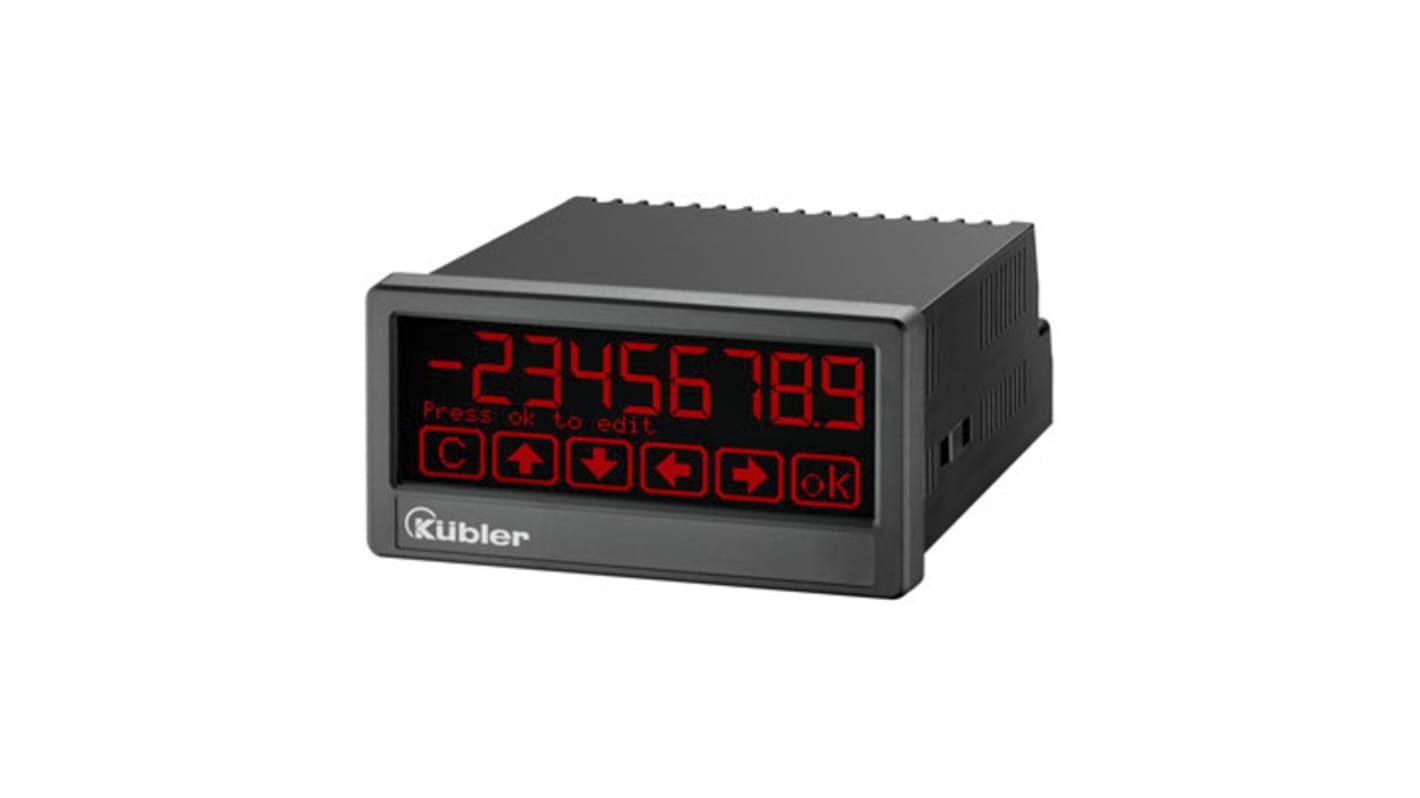

The fast SSI display type 570T is designed for absolute SSI encoders with a resolution up to 32 bits. It can be used as either a master or a slave display.Thanks to simple bit assignment and bit blanking the display, which can be scaled and linearized, can also be cascaded, in order to extend the display range as desired. Output options include 4 limit values, analog output or RS232 interface.
AC and DC power supply in one unit Master- or slave mode Screw terminal connection SSI-clock frequency from 100 Hz up to 1 MHz Display may be adjusted using scaling- and offset-features Large 13 mm high LCD display, 8-digit, with adjustable brightness. Tri-color – red / green / yellow – programmable Round-loop function 24-point linearization bit blanking
