onsemi Rail to Rail Current Sensing Amplifier Single 6-Pin SC-70
- RS庫存編號:
- 178-4384
- 製造零件編號:
- NCS199A1RSQT2G
- 製造商:
- onsemi

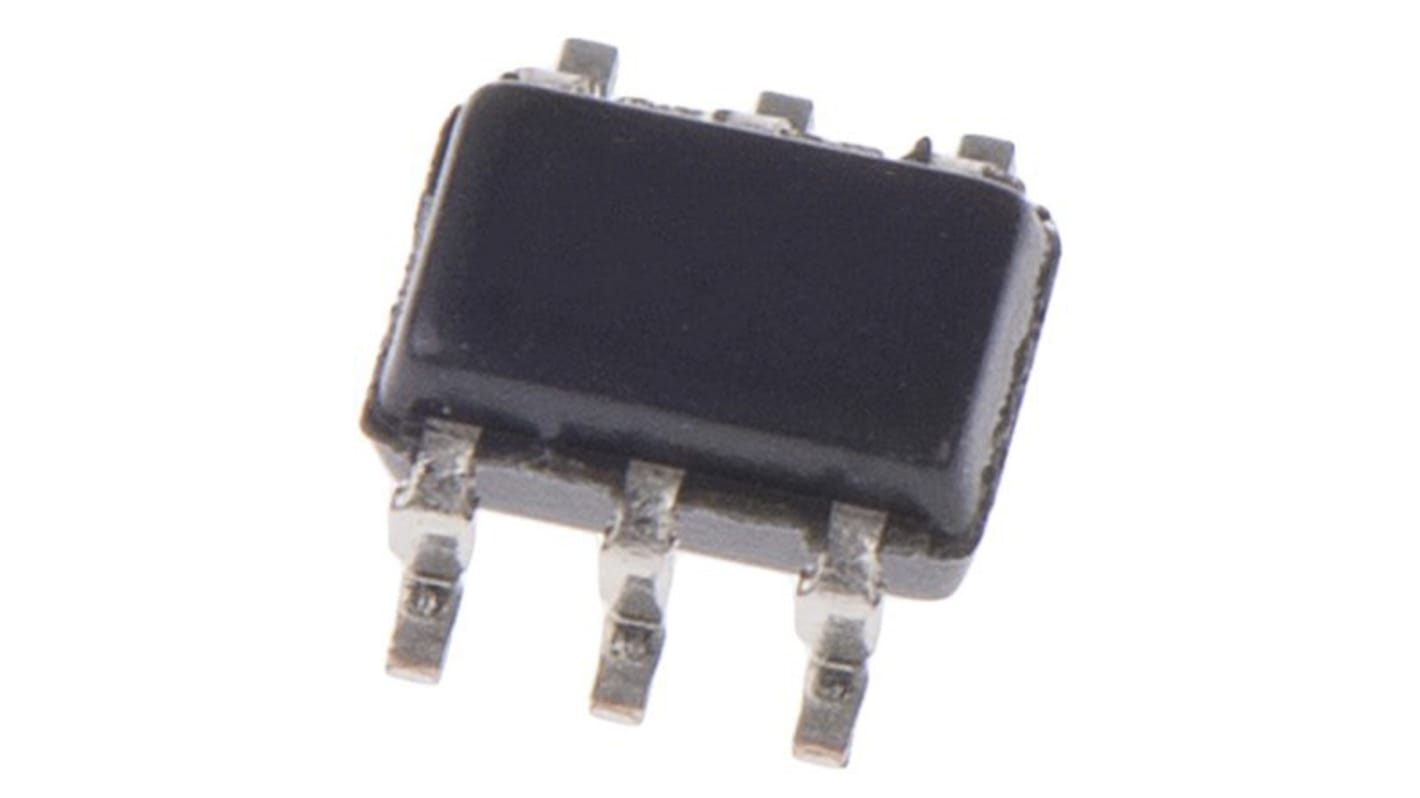

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計（1 卷，共 3000 件）*
HK$5,184.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年6月03日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 3000 - 3000 | HK$1.728 | HK$5,184.00 |
| 6000 - 9000 | HK$1.693 | HK$5,079.00 |
| 12000 + | HK$1.66 | HK$4,980.00 |
* 參考價格
- RS庫存編號:
- 178-4384
- 製造零件編號:
- NCS199A1RSQT2G
- 製造商:
- onsemi
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | onsemi | |
| Power Supply Type | Single | |
| Product Type | Current Sensing Amplifier | |
| Minimum Supply Voltage | 2.2V | |
| Maximum Supply Voltage | 26V | |
| CMRR - Common Mode Rejection Ratio | 100dB | |
| Number of Channels | 1 | |
| Supply Current | 80μA | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Pin Count | 6 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 90kHz | |
| Series | NCS199 | |
| Standards/Approvals | No | |
| Length | 2.2mm | |
| Width | 1.35 mm | |
| Height | 1mm | |
| Maximum Operating Temperature | 125°C | |
| Output Type | Rail to Rail | |
| Automotive Standard | No | |
| 選取全部 | ||
|---|---|---|
品牌 onsemi | ||
Power Supply Type Single | ||
Product Type Current Sensing Amplifier | ||
Minimum Supply Voltage 2.2V | ||
Maximum Supply Voltage 26V | ||
CMRR - Common Mode Rejection Ratio 100dB | ||
Number of Channels 1 | ||
Supply Current 80μA | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Pin Count 6 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 90kHz | ||
Series NCS199 | ||
Standards/Approvals No | ||
Length 2.2mm | ||
Width 1.35 mm | ||
Height 1mm | ||
Maximum Operating Temperature 125°C | ||
Output Type Rail to Rail | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The NCS199A1R is a voltage output current shunt monitor (also called current sense amplifier) which can measure voltage across shunts at common-mode voltages from -0.3 to 26V, independent of supply voltage. The low offset of the zero-drift architecture enables current sensing across the shunt with maximum voltage drop as low as 10 mV full-scale.
High-side current sensing for high voltage systems
Low Ohm value current sense resistors
High accuracy over temperature leading to better power efficiency
Wide supply voltage range provides system flexibilty
