STMicroelectronics Bidirectional Current Sensing Amplifier Single 8-Pin MiniSO

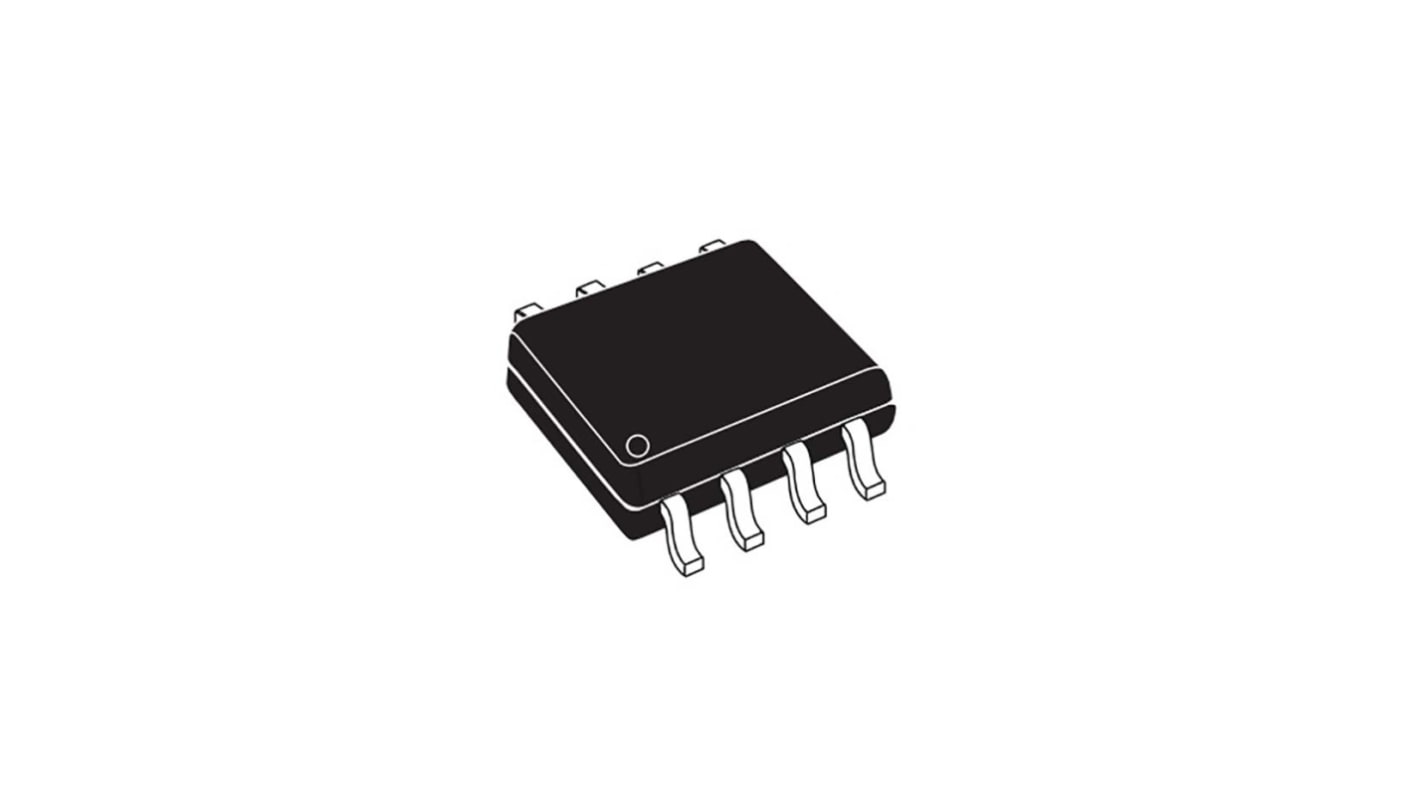

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Current Sensing Amplifiers
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
包裝方式：
RS庫存編號:
203-3515P
製造零件編號:
TSC2012IST
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

Current Sensing Amplifier

Power Supply Type

Single

Maximum Supply Voltage

5.5V

Minimum Supply Voltage

2.7V

CMRR - Common Mode Rejection Ratio

115dB

Number of Channels

1

Supply Current

5mA

Mount Type

Surface

Package Type

MiniSO

Pin Count

8

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

490kHz

Length

3.2mm

Height

1.1mm

Series

TSC2012

Standards/Approvals

No

Automotive Standard

No

Maximum Operating Temperature

125°C

Output Type

Bidirectional

The STMicroelectronics TSC2010, TSC2011 and TSC2012 series is a high-voltage and precision bidirectional current sense amplifier. It can sense the current due to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is. The current sense amplifier is able to sense very low drop voltages as low as 10 mV full scale minimizing the measurement error. It can be used in various other functions such as precision current measurement, current monitoring, overcurrent protection and feedback loops.

Gain error is 0.3% max

Quiescent current is 20 μA in shutdown mode

Available in SO8 and Mini SO8 package
