TSC213ICT STMicroelectronics Bidirectional Current Sensing Amplifier Single 6-Pin SC-70

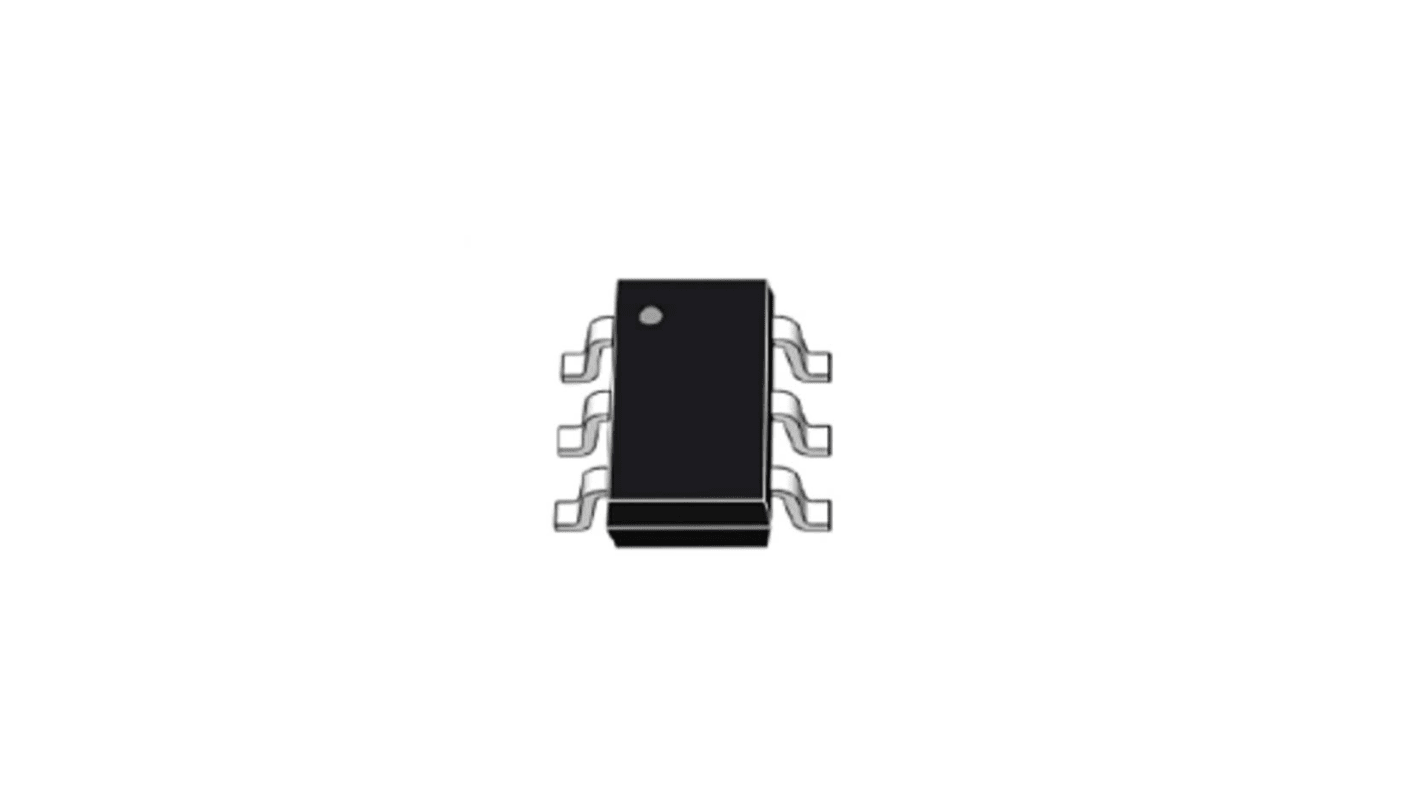

此圖片僅供參考，請參閲產品詳細資訊及規格

查看所有Current Sensing Amplifiers
可享批量折扣

小計（1 包，共 10 件）*

HK$104.50

Add to Basket
選擇或輸入數量
有庫存
  • 700 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
每包*
10 - 740HK$10.45HK$104.50
750 - 1490HK$10.18HK$101.80
1500 +HK$9.87HK$98.70

* 參考價格

包裝方式：
RS庫存編號:
203-3517
製造零件編號:
TSC213ICT
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

Current Sensing Amplifier

Power Supply Type

Single

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

26V

CMRR - Common Mode Rejection Ratio

120dB

Number of Channels

1

Supply Current

5mA

Mount Type

Surface

Package Type

SC-70

Pin Count

6

Minimum Operating Temperature

-40°C

GBP - Gain Bandwidth Product

100kHz

Standards/Approvals

No

Width

1.35 mm

Length

2.2mm

Series

TSC213

Height

1.1mm

Maximum Operating Temperature

125°C

Automotive Standard

No

Output Type

Bidirectional

The STMicroelectronics TSC210, TSC212 and TSC213 is a series of low/high side bi-directional zero-drift, current sense amplifier. It can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. There are three different versions available, each of them having a different gain. It is designed with a specific zero-drift architecture, which can achieve high precision. The TSC21x may be used in various functions such as precision current measurement, over current protection, current monitoring, feedback loops.

Available in QFN10 (1.8x1.4) and SC70-6 type of package

Gain error is 1% max where as gain drift is 20 ppm/°C max

Offset drift is 0.1 μV/°C max
