STMicroelectronics Bidirectional Current Sensing Amplifier Single 8-Pin MiniSO8
- RS庫存編號:
- 206-8640P
- 製造零件編號:
- TSC2010IST
- 製造商:
- STMicroelectronics

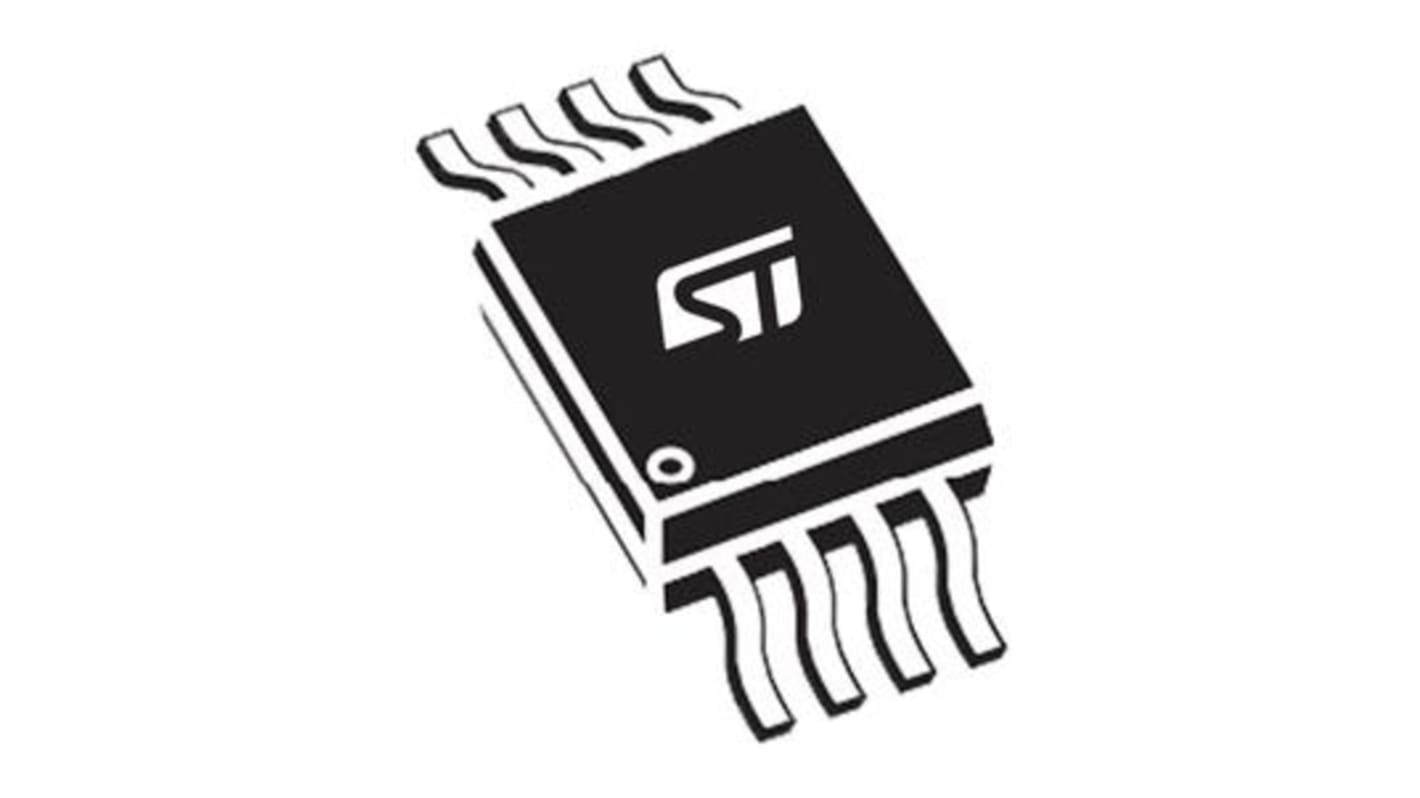

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
小計 1000 件 (以卷裝提供)*
HK$17,020.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 4,000 件從 2026年5月06日 起裝運發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1000 - 1995 | HK$17.02 |
| 2000 + | HK$16.74 |
* 參考價格
- RS庫存編號:
- 206-8640P
- 製造零件編號:
- TSC2010IST
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Product Type | Current Sensing Amplifier | |
| Power Supply Type | Single | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.7V | |
| CMRR - Common Mode Rejection Ratio | 115dB | |
| Number of Channels | 1 | |
| Supply Current | 5mA | |
| Mount Type | Surface | |
| Package Type | MiniSO8 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 820kHz | |
| Minimum Operating Temperature | -40°C | |
| Height | 1.1mm | |
| Series | TSC2010 | |
| Length | 3.2mm | |
| Width | 3.1 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Maximum Operating Temperature | 125°C | |
| Output Type | Bidirectional | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Product Type Current Sensing Amplifier | ||
Power Supply Type Single | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.7V | ||
CMRR - Common Mode Rejection Ratio 115dB | ||
Number of Channels 1 | ||
Supply Current 5mA | ||
Mount Type Surface | ||
Package Type MiniSO8 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 820kHz | ||
Minimum Operating Temperature -40°C | ||
Height 1.1mm | ||
Series TSC2010 | ||
Length 3.2mm | ||
Width 3.1 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Maximum Operating Temperature 125°C | ||
Output Type Bidirectional | ||
The STMicroelectronics TSC2010, TSC2011 and TSC2012 are precision bidirectional current sense amplifiers. They can sense the current thanks to a shunt resistor over a wide range of common mode voltages, from - 20 to + 70 V, whatever the supply voltage is.
Wide common mode voltage: - 20 to 70 V
Offset voltage: ± 200 μV max
2.7 to 5.5 V supply voltage
Gain error: 0.3% max
Offset drift: 5 μV/°C max
Quiescent current: 20 μA in shutdown mode
