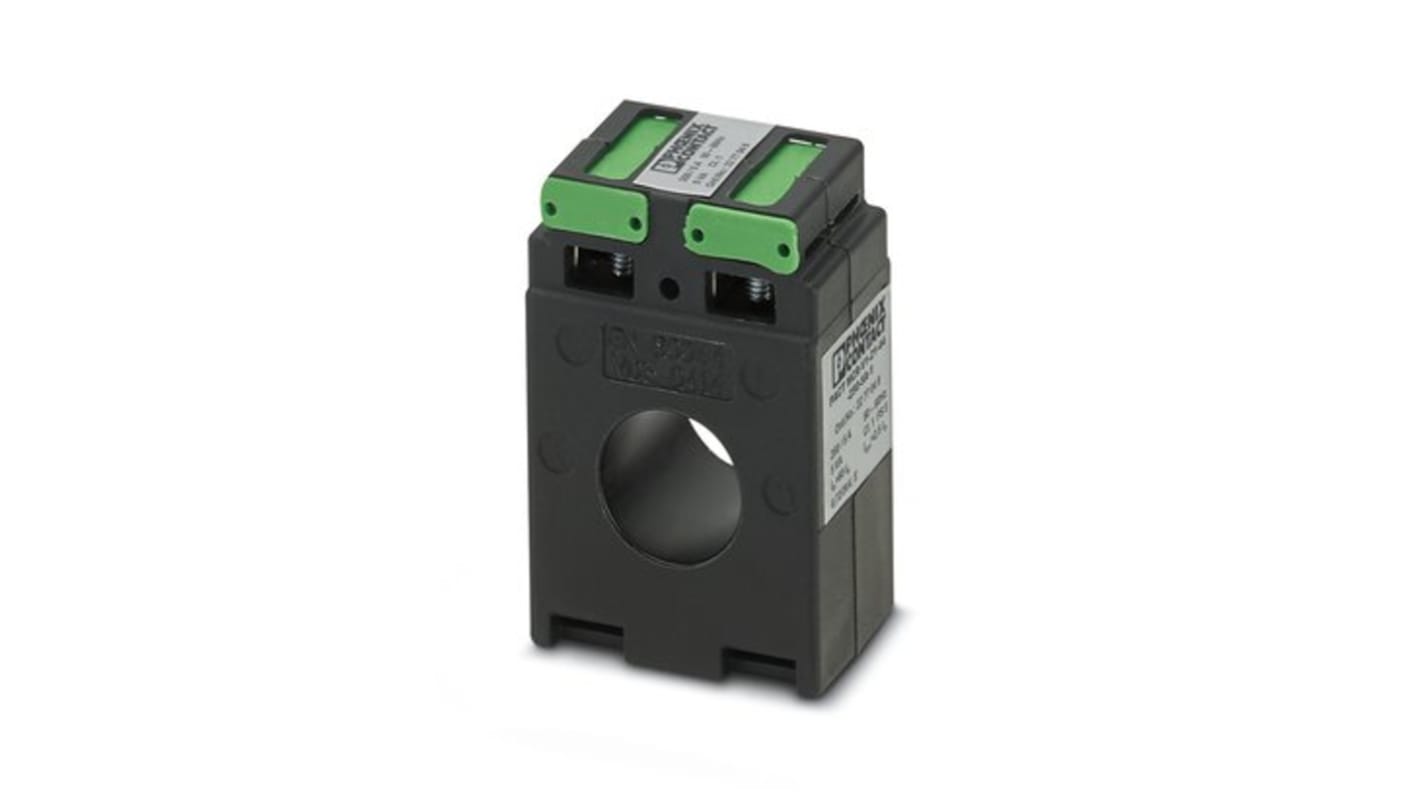

Phoenix Contact PACT MCR-V1 Series Current Transformer 250 A 5 VA 20 mm Bore
- RS庫存編號:
- 129-602
- 製造零件編號:
- 2277048
- 製造商:
- Phoenix Contact
小計（1 件）*
HK$260.41
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2026年5月07日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$260.41 |
* 參考價格
- RS庫存編號:
- 129-602
- 製造零件編號:
- 2277048
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT MCR-V1 | |
| Power Rating | 5VA | |
| Secondary Current | 5 A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 250A | |
| Maximum Operating Temperature | 40°C | |
| Depth | 44mm | |
| Standards/Approvals | CE, CHINA RoHS, cULus, UKCA, EAC, EN61869, EU RoHS | |
| Width | 31 mm | |
| Weight | 204.3g | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | DIN Rail, Wall | |
| Bore Size | 20 mm | |
| Minimum Operating Frequency | 50Hz | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT MCR-V1 | ||
Power Rating 5VA | ||
Secondary Current 5 A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 250A | ||
Maximum Operating Temperature 40°C | ||
Depth 44mm | ||
Standards/Approvals CE, CHINA RoHS, cULus, UKCA, EAC, EN61869, EU RoHS | ||
Width 31 mm | ||
Weight 204.3g | ||
Maximum Operating Frequency 60Hz | ||
Mount Type DIN Rail, Wall | ||
Bore Size 20 mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Current Transformer is designed for accurate measurement of AC currents. With a primary current rating of 250 A and a secondary current rating of 5 A, this bus-bar current transformer delivers outstanding performance. It offers a high level of accuracy with an accuracy class of 1. The transformer is easy to install and can be mounted on DIN rails or walls. With a wide temperature range of -25°C to 40°C, it can withstand harsh environmental conditions.
Rated insulation voltage of 1 kV ensures safe operation
Compact and durable design for reliable performance
Can be calibrated for precise measurements
High surge current limitation factor for enhanced safety
Wide temperature range allows for operation in various environments
Screw connection for easy installation
Flexible conductor cross section for convenient wiring
