可享批量折扣
小計（1 件）*
HK$46.60
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 38 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 - 33 | HK$46.60 |
| 34 - 169 | HK$45.60 |
| 170 + | HK$37.50 |
* 參考價格
- RS庫存編號:
- 124-3890
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Current Transformer | |
| Primary DC Resistance | 49.3Ω | |
| Terminal Type | Wire | |
| Primary Current | 125A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 130°C | |
| Depth | 34.9mm | |
| Standards/Approvals | ISO 14001:2004, ISO-9001:2000, TS-16949:2002 | |
| Width | 14.3mm | |
| Mount Type | PCB | |
| Maximum Operating Frequency | 60Hz | |
| Turns Ratio | 1000:1 | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 14.6mm | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Current Transformer | ||
Primary DC Resistance 49.3Ω | ||
Terminal Type Wire | ||
Primary Current 125A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 130°C | ||
Depth 34.9mm | ||
Standards/Approvals ISO 14001:2004, ISO-9001:2000, TS-16949:2002 | ||
Width 14.3mm | ||
Mount Type PCB | ||
Maximum Operating Frequency 60Hz | ||
Turns Ratio 1000:1 | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 14.6mm | ||

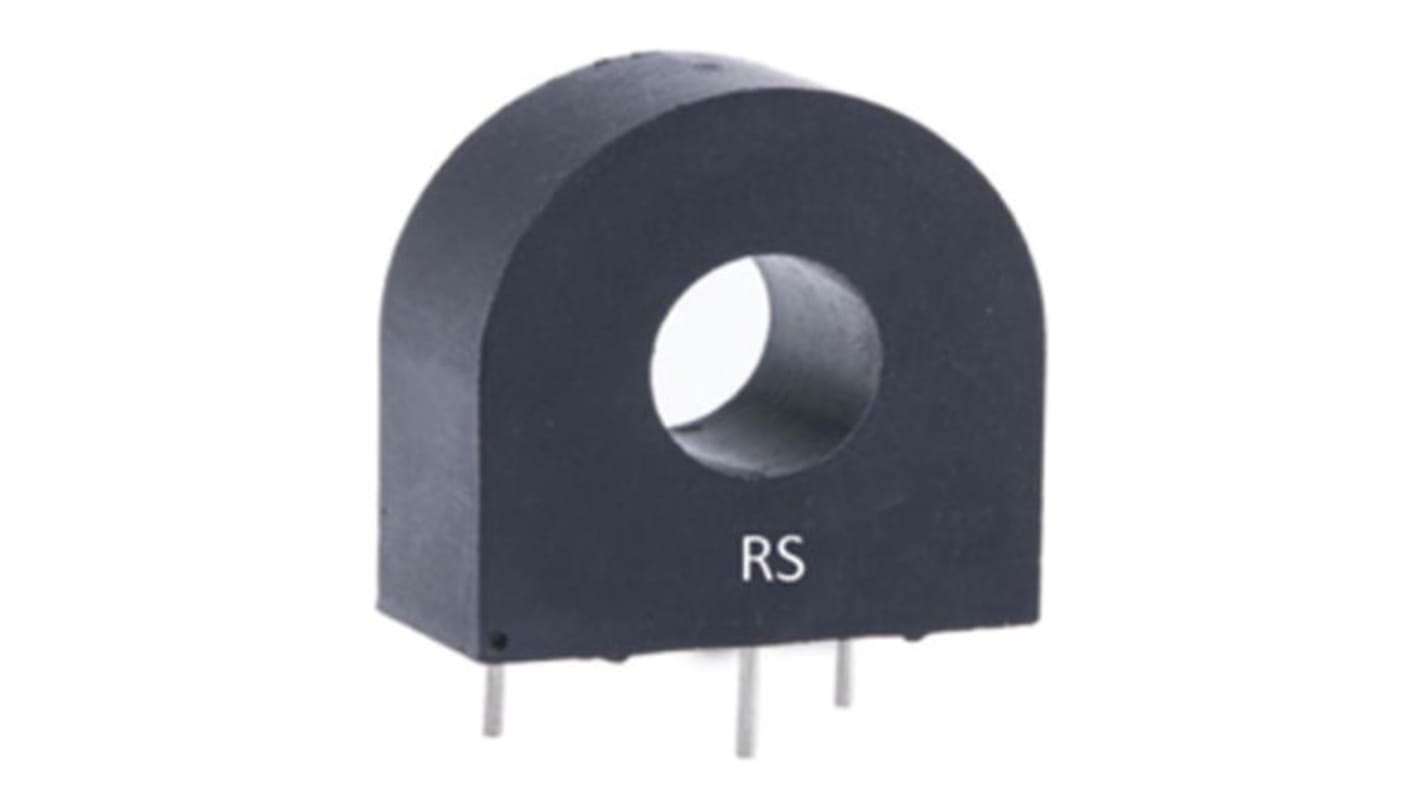

RS Pro Current Sense Transformers 10A-200A
RS Pro PCB mount current transformers encapsulated in UL94 V0 rated plastic Storage temperature -55°C to +130°C, fully RoHS compliant.
Applications
Ground fault detection
Metering
Analog to digital circuits
Sensing overload current
Low Cost Current Sense Transformers
Standards
SO-9001:2000
TS-16949:2002
ISO-14001:2004
TS-16949:2002
ISO-14001:2004
