規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Product Type | Current Transformer | |
| Secondary Current | 1 to 5 A | |
| Terminal Type | Wire | |
| Primary Current | 150A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC 61010-2, IEC 60044-1, UL94V-0, IEC 61869-1 | |
| Depth | 31mm | |
| Width | 50 mm | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Wall, Busbar, Cable | |
| Bore Size | 30 x 10 mm | |
| Minimum Operating Frequency | 50Hz | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Product Type Current Transformer | ||
Secondary Current 1 to 5 A | ||
Terminal Type Wire | ||
Primary Current 150A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC 61010-2, IEC 60044-1, UL94V-0, IEC 61869-1 | ||
Depth 31mm | ||
Width 50 mm | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Wall, Busbar, Cable | ||
Bore Size 30 x 10 mm | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- IN

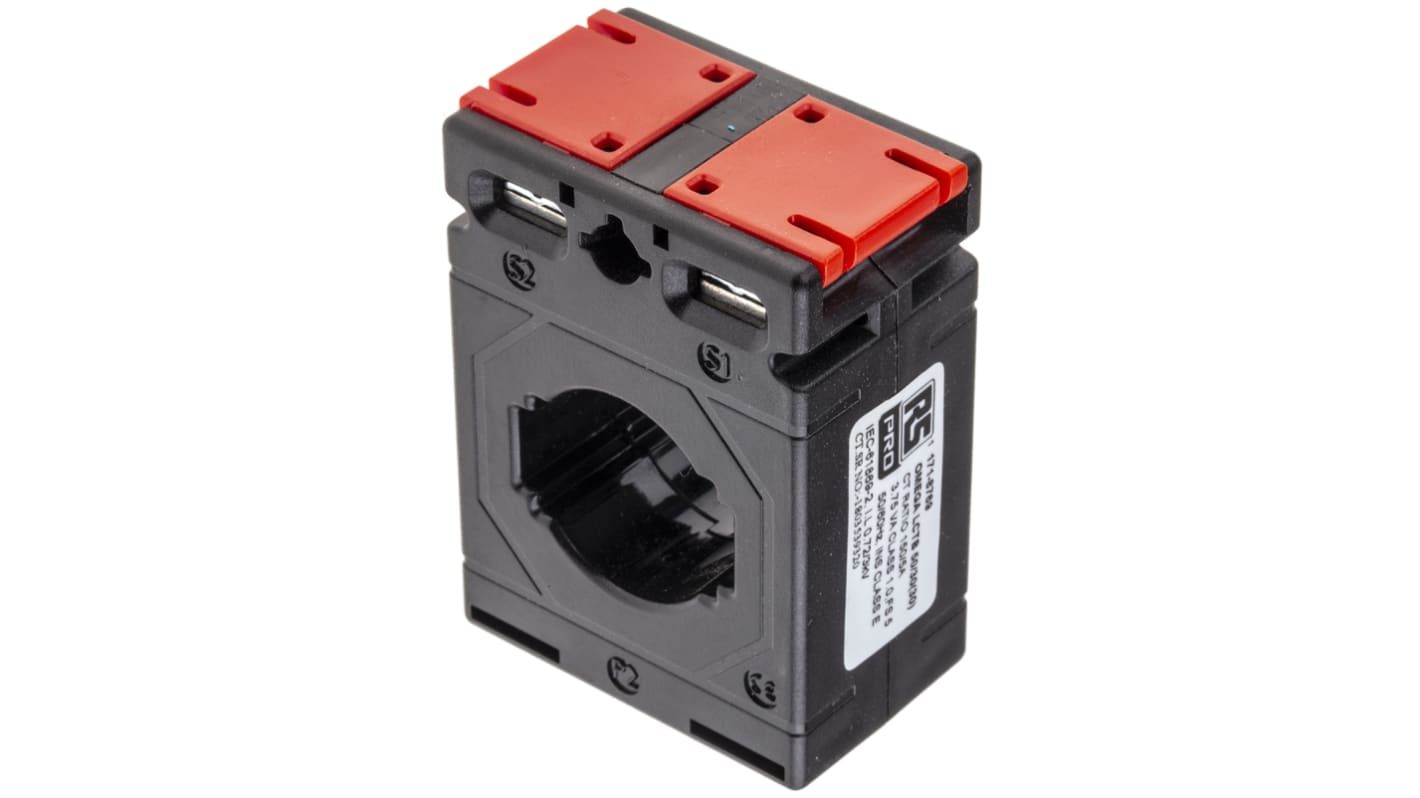

CT’s are square type and encapsulated with polycarbonate. These metering CT’s feature sealable terminal covers and a wide range of primary current ratings. Available in various, Bus bar sizes, case widths, and mounting options.
Comprehensive class accuracy
Cost effective moulded case current transformer
Various mounting options including wall mounting, cable mounting, bus bar mounting and DIN rail mounting
Available in 0.2 & 0.2s accuracy class
Wire sealable terminal covers
