Phoenix Contact PACT RCP Series Current Transformer 4000 A 1.5 VA
- RS庫存編號:
- 174-3476
- 製造零件編號:
- 2910327
- 製造商:
- Phoenix Contact
小計（1 件）*
HK$3,200.10
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年5月07日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$3,200.10 |
* 參考價格
- RS庫存編號:
- 174-3476
- 製造零件編號:
- 2910327
- 製造商:
- Phoenix Contact
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Phoenix Contact | |
| Product Type | Current Transformer | |
| Series | PACT RCP | |
| Power Rating | 1.5VA | |
| Secondary Current | 1 A | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Primary Current | 4000A | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL, UKCA, IEC 61010-2-032, IEC 61010-1, EAC, CMIM, CE | |
| Depth | 70.4mm | |
| Width | 22.5 mm | |
| Weight | 0.61kg | |
| Maximum Operating Frequency | 65Hz | |
| Mount Type | DIN Rail | |
| Minimum Operating Frequency | 45Hz | |
| 選取全部 | ||
|---|---|---|
品牌 Phoenix Contact | ||
Product Type Current Transformer | ||
Series PACT RCP | ||
Power Rating 1.5VA | ||
Secondary Current 1 A | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Primary Current 4000A | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL, UKCA, IEC 61010-2-032, IEC 61010-1, EAC, CMIM, CE | ||
Depth 70.4mm | ||
Width 22.5 mm | ||
Weight 0.61kg | ||
Maximum Operating Frequency 65Hz | ||
Mount Type DIN Rail | ||
Minimum Operating Frequency 45Hz | ||
- COO (Country of Origin):
- DE

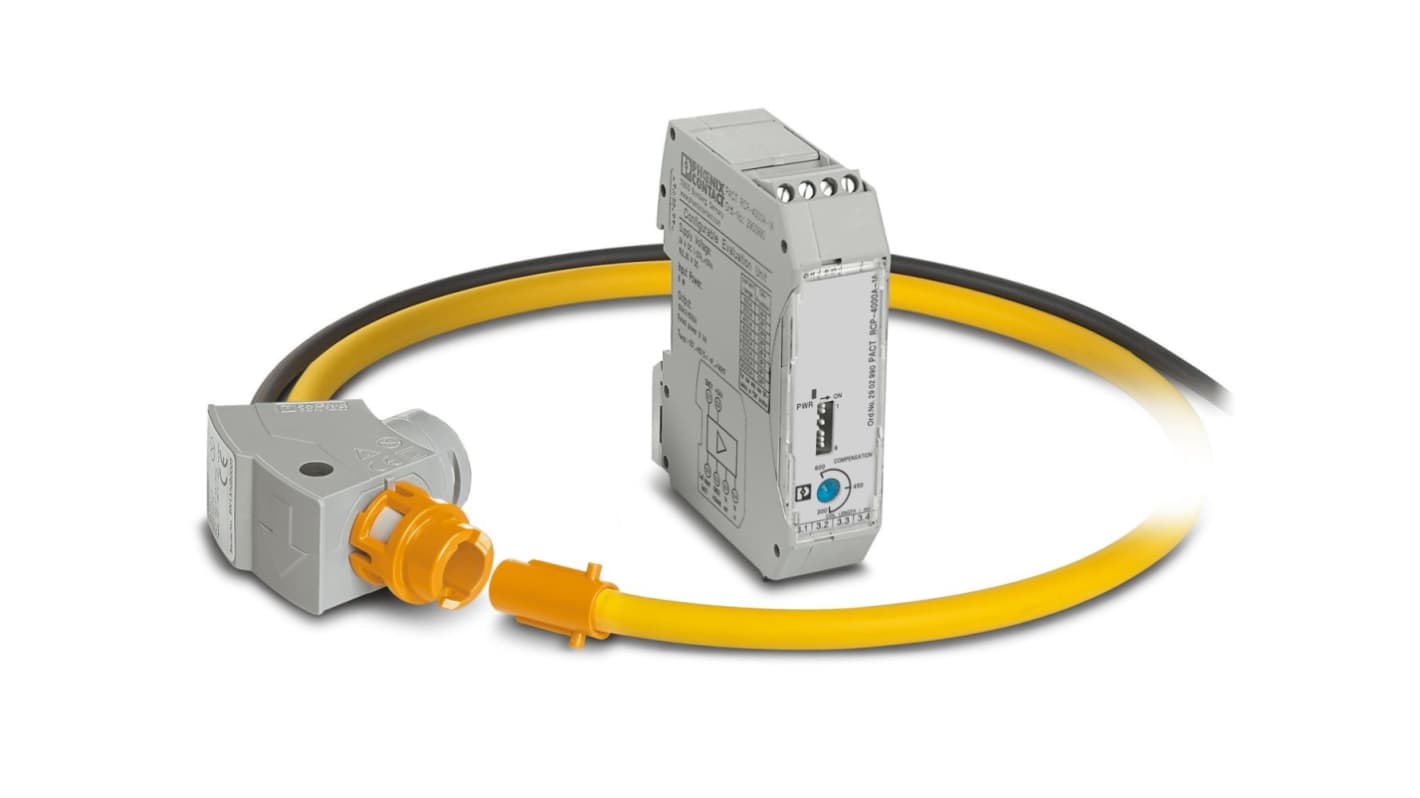

Set consisting of a 1 A measuring transducer and a Rogowski coil with signal line. Length of Rogowski coil: 600 mm, diameter: 190 mm. Length of signal line: 10 m. The Rogowski coil measures the AC current of busbars and power lines.
