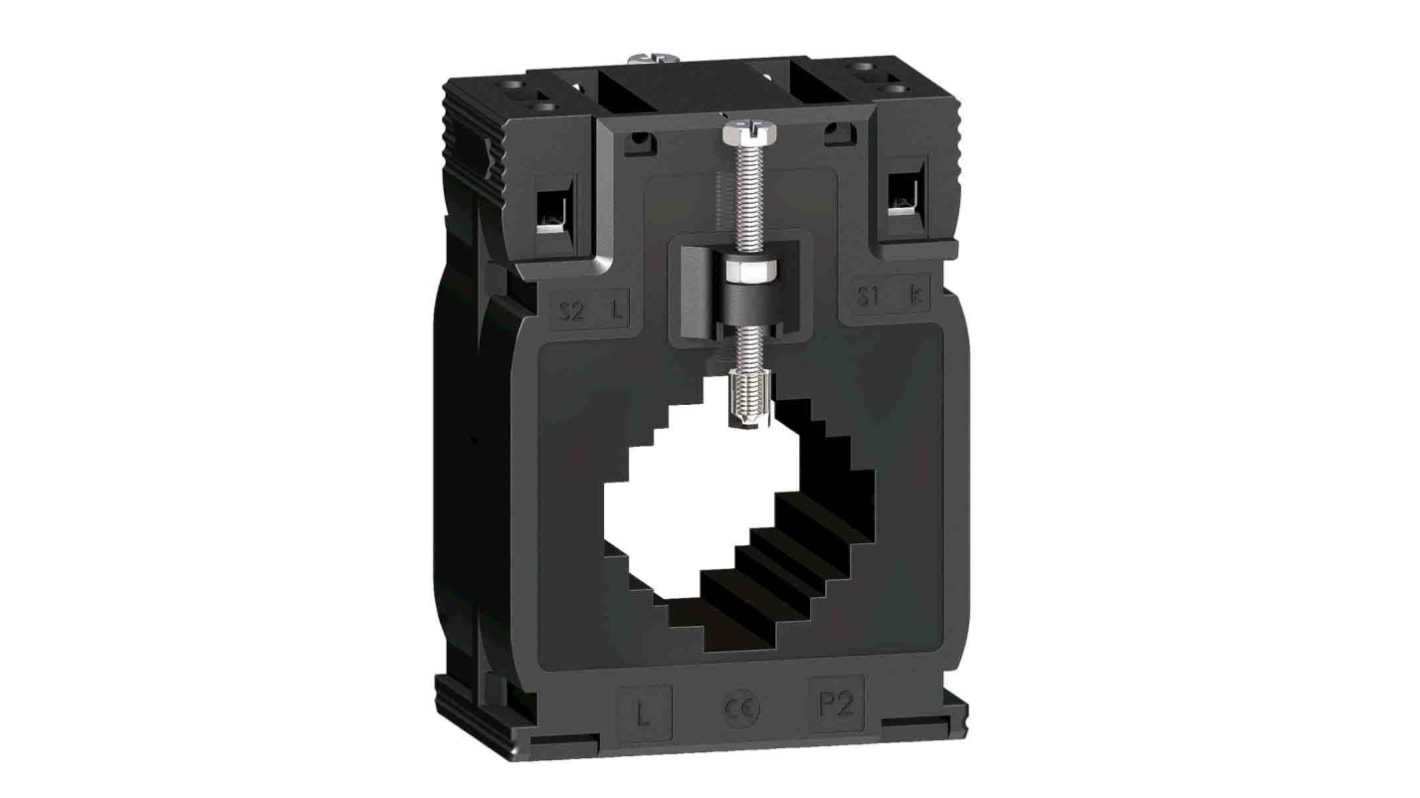

Schneider Electric PowerLogic Series Current Transformer 300 A 32 mm Bore
- RS庫存編號:
- 198-4502
- 製造零件編號:
- METSECT5MC030
- 製造商:
- Schneider Electric
小計（1 件）*
HK$995.92
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年5月12日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$995.92 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 198-4502
- 製造零件編號:
- METSECT5MC030
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | 60°C | |
| Primary Current | 300A | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 61869-2, CE, VDE 0414 | |
| Weight | 0.39kg | |
| Depth | 65mm | |
| Width | 70mm | |
| Length | 95mm | |
| Maximum Operating Frequency | 60Hz | |
| Better World Product | Yes | |
| Mount Type | DIN Rail | |
| Bore Size | 32mm | |
| Minimum Operating Frequency | 50Hz | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Secondary Current 5A | ||
Minimum Operating Temperature 60°C | ||
Primary Current 300A | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 61869-2, CE, VDE 0414 | ||
Weight 0.39kg | ||
Depth 65mm | ||
Width 70mm | ||
Length 95mm | ||
Maximum Operating Frequency 60Hz | ||
Better World Product Yes | ||
Mount Type DIN Rail | ||
Bore Size 32mm | ||
Minimum Operating Frequency 50Hz | ||
Schneider Electric METSECT5MC030 is a current transformer which is tropicalized for bus bar mount having an accuracy Class 0.5 at 3 V ac and Class 1 at 5 V ac This current transformer has Class B electrical insulation class and comes with seal. Comes with an Insulated locking screw mounting mode and a bus bar for support. Schneider ElectricMETSECT5MC030 meets various environmental and other standards such as VDE 0414 and IEC 61869-2. This particular transformer 0.511kg and offers Green Premium product sustainable status.
Wide ratio range 300/5
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
