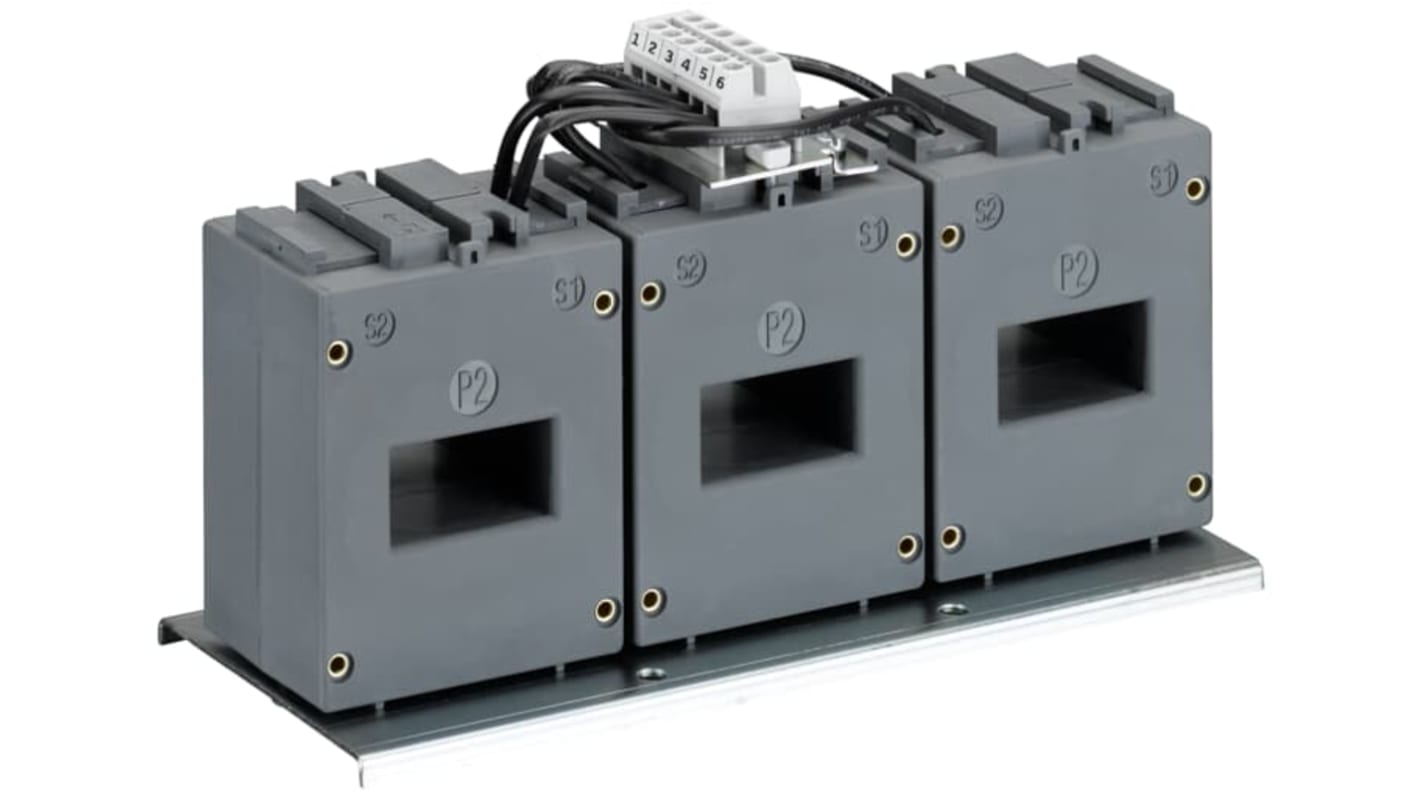

ABB CT5 Series Current Transformer 500 A
- RS庫存編號:
- 259-5956
- 製造零件編號:
- 1SAJ929501R0500
- 製造商:
- ABB
小計（1 件）*
HK$5,277.36
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$5,277.36 |
* 參考價格
- RS庫存編號:
- 259-5956
- 製造零件編號:
- 1SAJ929501R0500
- 製造商:
- ABB
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | ABB | |
| Product Type | Current Transformer | |
| Series | CT5 | |
| Secondary Current | 4 A | |
| Terminal Type | Screw | |
| Primary Current | 500A | |
| Weight | 1.7kg | |
| Standards/Approvals | IEC/EN 60947-4-1, UL/CSA, IEC/EN 60947-1 | |
| Length | 100mm | |
| Depth | 100mm | |
| Width | 245 mm | |
| 選取全部 | ||
|---|---|---|
品牌 ABB | ||
Product Type Current Transformer | ||
Series CT5 | ||
Secondary Current 4 A | ||
Terminal Type Screw | ||
Primary Current 500A | ||
Weight 1.7kg | ||
Standards/Approvals IEC/EN 60947-4-1, UL/CSA, IEC/EN 60947-1 | ||
Length 100mm | ||
Depth 100mm | ||
Width 245 mm | ||
- COO (Country of Origin):
- CN
1SAJ929501R0500
The ABB external current transformer used for currents up to 500 A on primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
It has screw terminals
Suitable for UMC100-FBP, UMC100.3
IEC/EN 60947-1, IEC/EN 60947-4-1 standard
