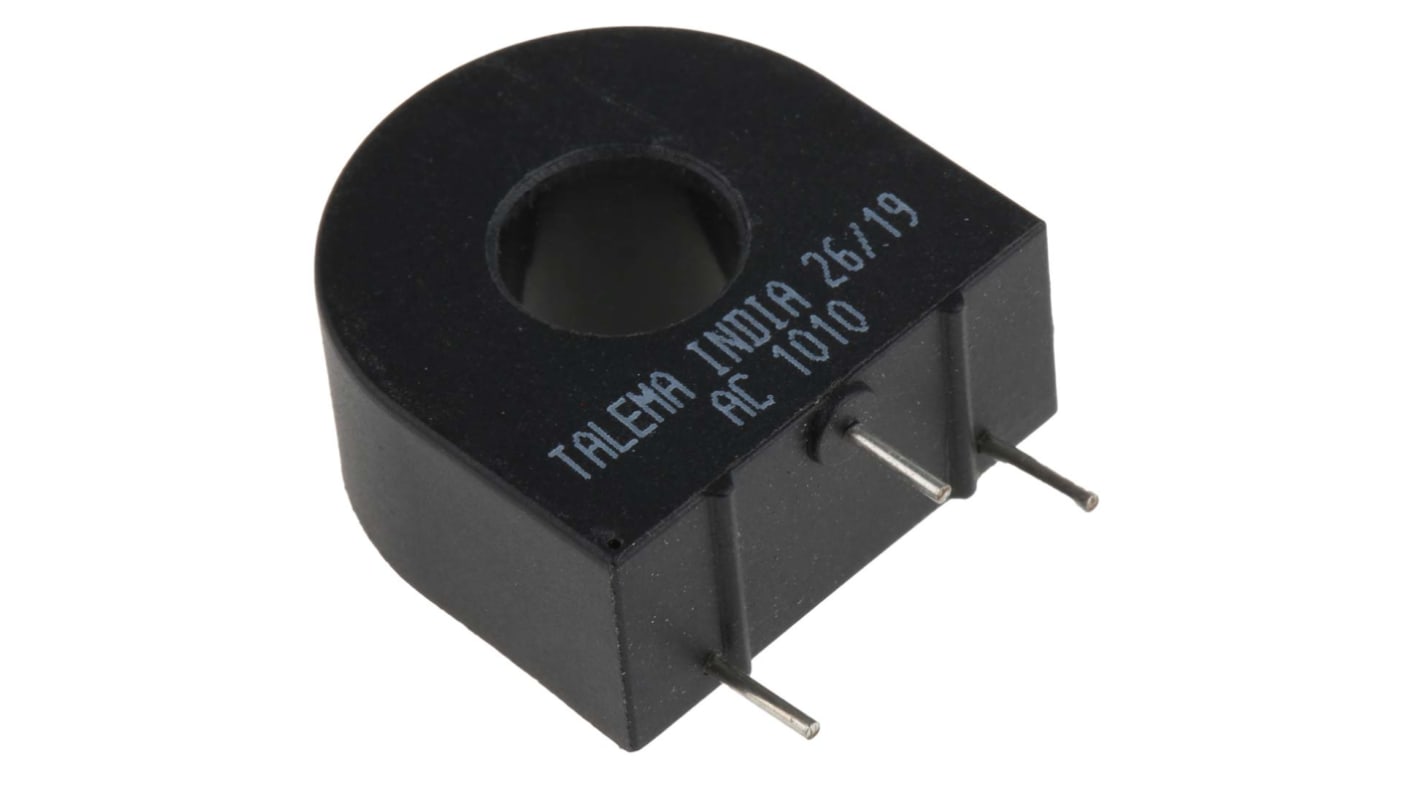

Nuvotem Talema AC-1 Series Current Transformer 10 A 1000:1
- RS庫存編號:
- 537-4491
- 製造零件編號:
- AC-1010
- 製造商:
- Nuvotem Talema
可享批量折扣
小計（1 包，共 5 件）*
HK$218.10
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 20 | HK$43.62 | HK$218.10 |
| 25 - 45 | HK$42.44 | HK$212.20 |
| 50 - 70 | HK$41.00 | HK$205.00 |
| 75 - 120 | HK$40.12 | HK$200.60 |
| 125 + | HK$39.24 | HK$196.20 |
* 參考價格
- RS庫存編號:
- 537-4491
- 製造零件編號:
- AC-1010
- 製造商:
- Nuvotem Talema
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Nuvotem Talema | |
| Product Type | Current Transformer | |
| Series | AC-1 | |
| Secondary Current | 10mA | |
| Minimum Operating Temperature | -40°C | |
| Primary Current | 10A | |
| Maximum Operating Temperature | 120°C | |
| Depth | 11.12mm | |
| Standards/Approvals | REACH, ISO 9001:2015, UL94V-0, ISO 14001:2015, RoHS | |
| Width | 15.24mm | |
| Length | 23.80mm | |
| Mount Type | PCB | |
| Turns Ratio | 1000:1 | |
| 選取全部 | ||
|---|---|---|
品牌 Nuvotem Talema | ||
Product Type Current Transformer | ||
Series AC-1 | ||
Secondary Current 10mA | ||
Minimum Operating Temperature -40°C | ||
Primary Current 10A | ||
Maximum Operating Temperature 120°C | ||
Depth 11.12mm | ||
Standards/Approvals REACH, ISO 9001:2015, UL94V-0, ISO 14001:2015, RoHS | ||
Width 15.24mm | ||
Length 23.80mm | ||
Mount Type PCB | ||
Turns Ratio 1000:1 | ||
Nuvotem Talema Current Sense Transformer
The Nuvotem Talema current sense transformer has an input current rating of 10A. This PCB mount transformer has turned the ratio of 1000:1.
Features and Benefits
Extremely low price
high-quality
Dimensions are 23.8 x 23.8 x 11.12mm
Operating temperature ranges between -40°C and 120°C
frequency range of 50/60Hz
PC Pin termination style
DC resistance 41.8ohms
Applications
Sensing overload current
Ground fault detection
Metering
Analog to digital circuits
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
